System - Basic Engine Control System

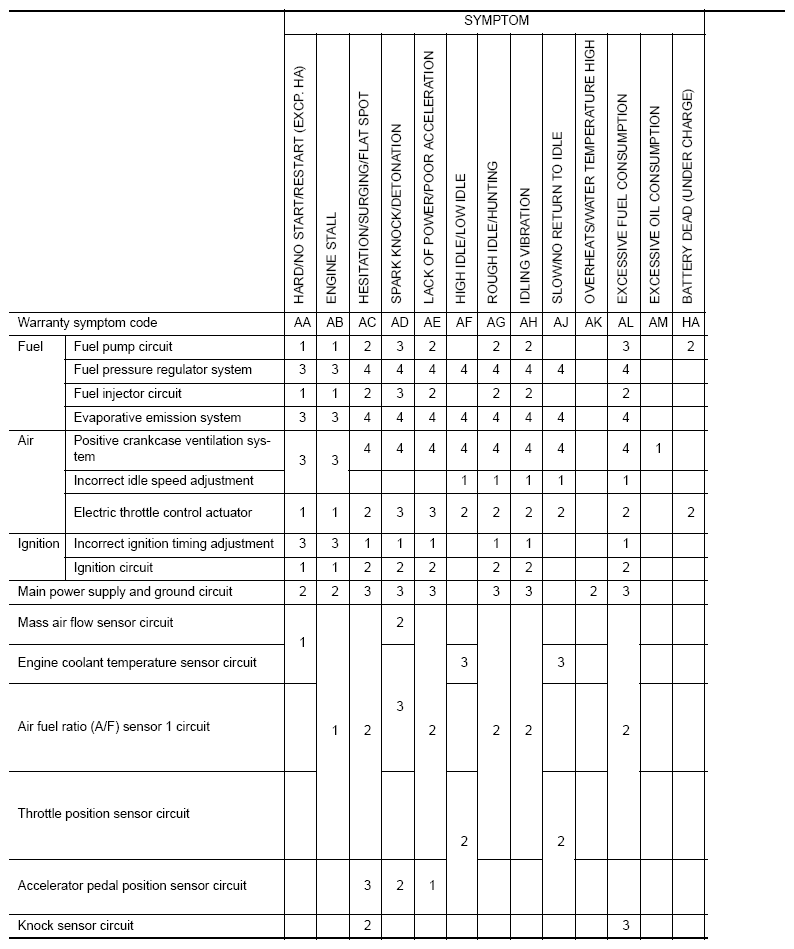

Fig 1: Basic Engine Control System Symptom Chart (1 Of 2)
G08194027Courtesy of NISSAN NORTH AMERICA, INC.

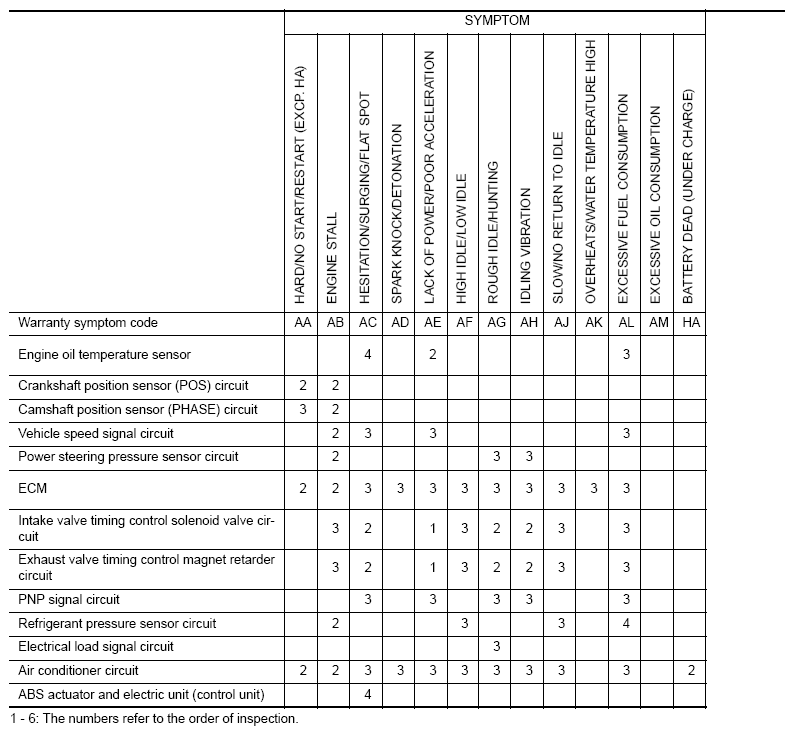

Fig 2: Basic Engine Control System Symptom Chart (2 Of 2)
G08194028Courtesy of NISSAN NORTH AMERICA, INC.
