System - Basic Engine Control System

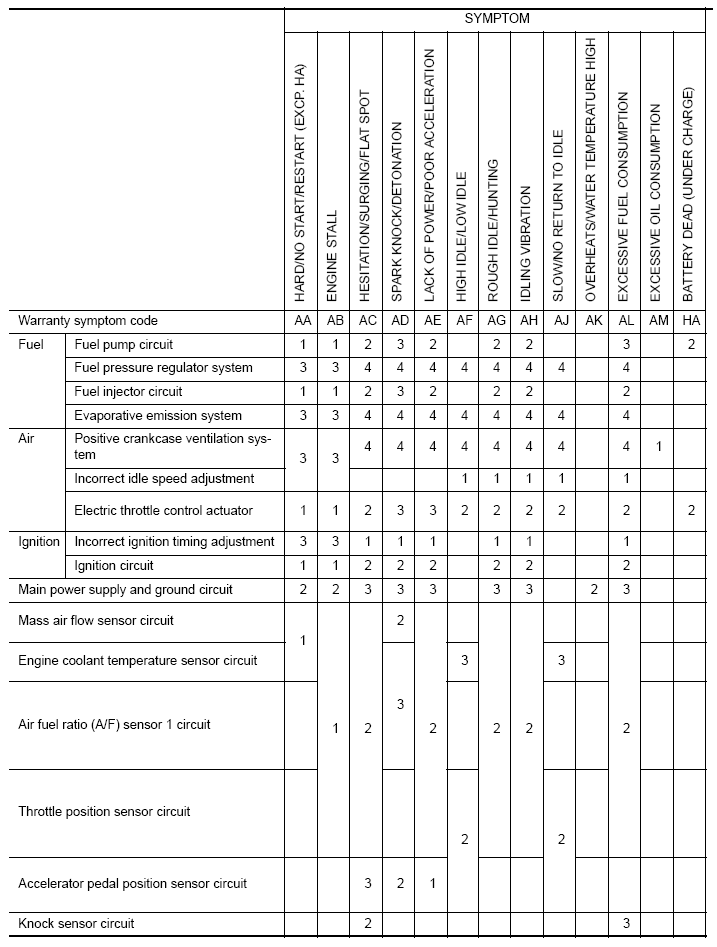

Fig 1: Basic Engine Control System Symptom Chart (1 Of 2)
G08210426Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Basic Engine Control System Symptom Chart (2 Of 2)
G08210427Courtesy of NISSAN NORTH AMERICA, INC.
