Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Work Flow
>>
Overall Sequence
Overall Sequence

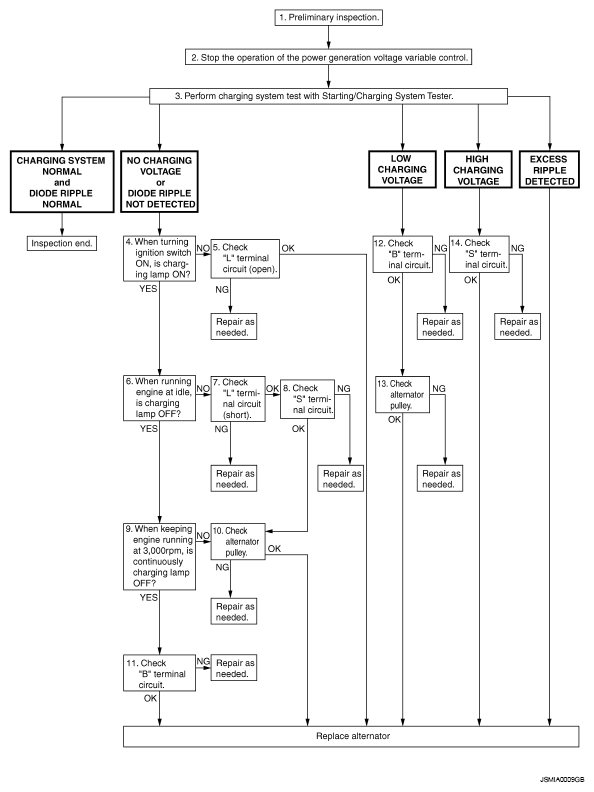

Fig 1: Identifying Diagnosis & Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
