IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown below.

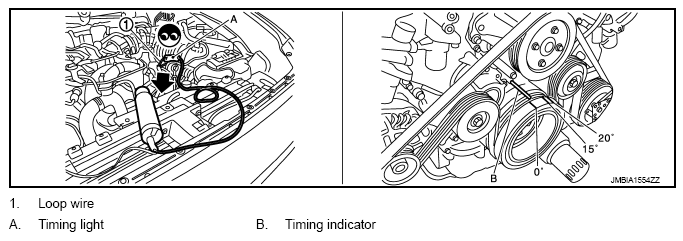

      Fig 1: Connecting Timing Light To Loop Wire
      G09001044Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      : INSPECTION END
