System Diagram

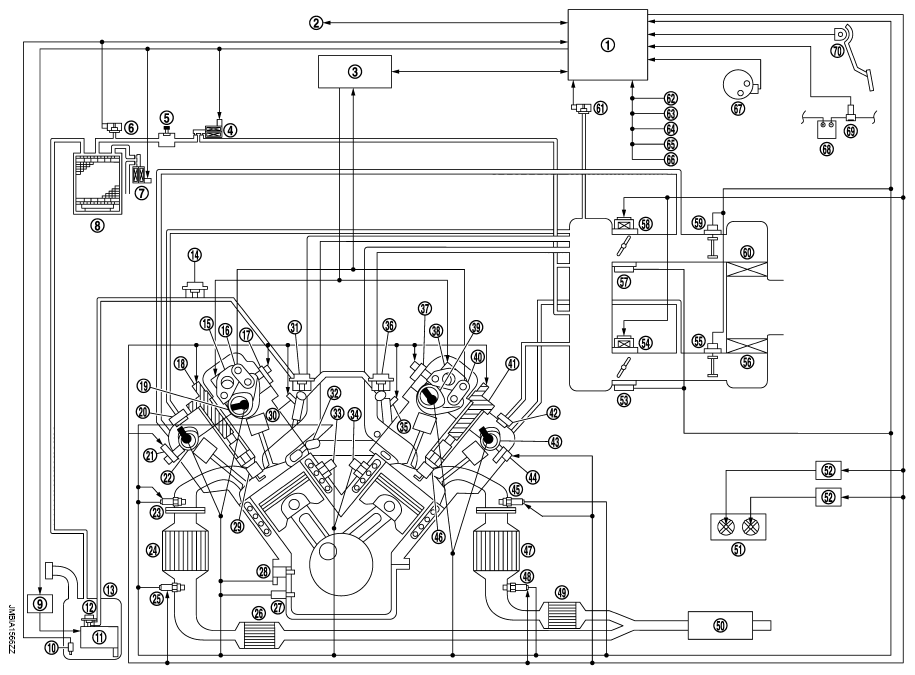

Fig 1: Engine Control System Diagram (1 Of 2)
G09001059Courtesy of NISSAN NORTH AMERICA, INC.

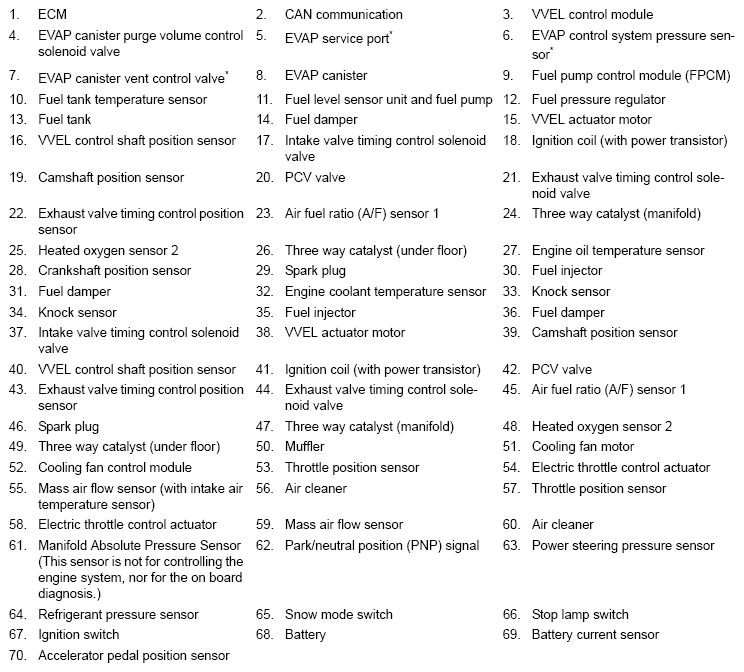

Fig 2: Engine Control System Diagram (2 Of 2)
G09001060Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico
