Component Inspection

  1. CHECK FUEL INJECTOR
    1. Turn ignition switch OFF.
    2. Disconnect fuel injector harness connector.
    3. Check resistance between fuel injector terminals as follows.
      Terminals Resistance
      1 and 2 11.1 - 14.3 Ω [at 10 - 60°C (50 - 140°F)]

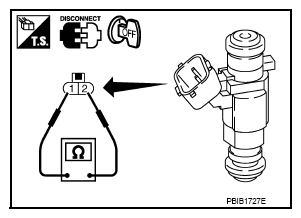

      Fig 1: Checking Resistance Between Fuel Injector Terminals
      G09001521Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace malfunctioning fuel injector. Refer to "REMOVAL AND INSTALLATION ".
