Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

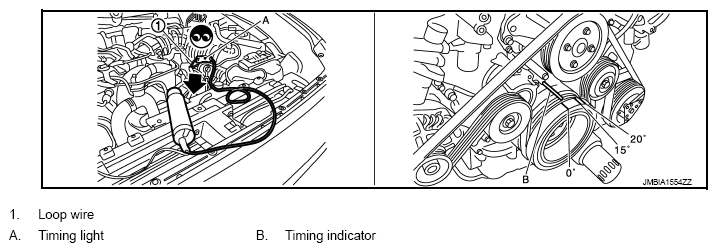

    1. Attach timing light to loop wire as shown below.
      Fig 1: Checking Ignition Timing
      G08897228Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      : INSPECTION END
