Exhaust Compartment

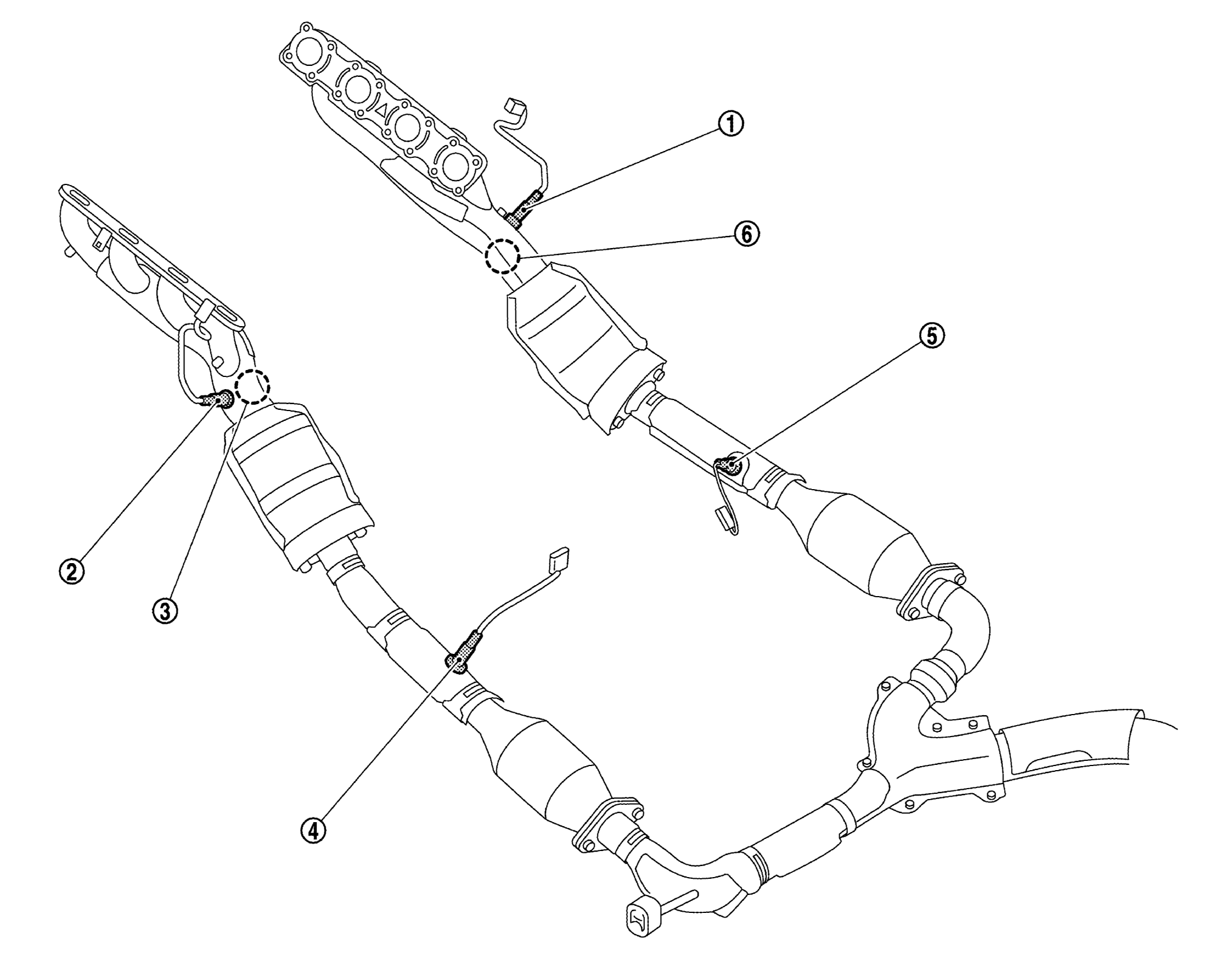

GNSJSBIA7225ZZ-225Courtesy of NISSAN NORTH AMERICA, INC.
1. A/F sensor 1 (bank 2) 2. A/F sensor 1 (bank 1) 3. Exhaust gas temperature sensor (bank 1)
4. Heated oxygen sensor 2 (bank 1) 5. Heated oxygen sensor 2 (bank 2) 6. Exhaust gas temperature sensor (bank 2)
