Component Location

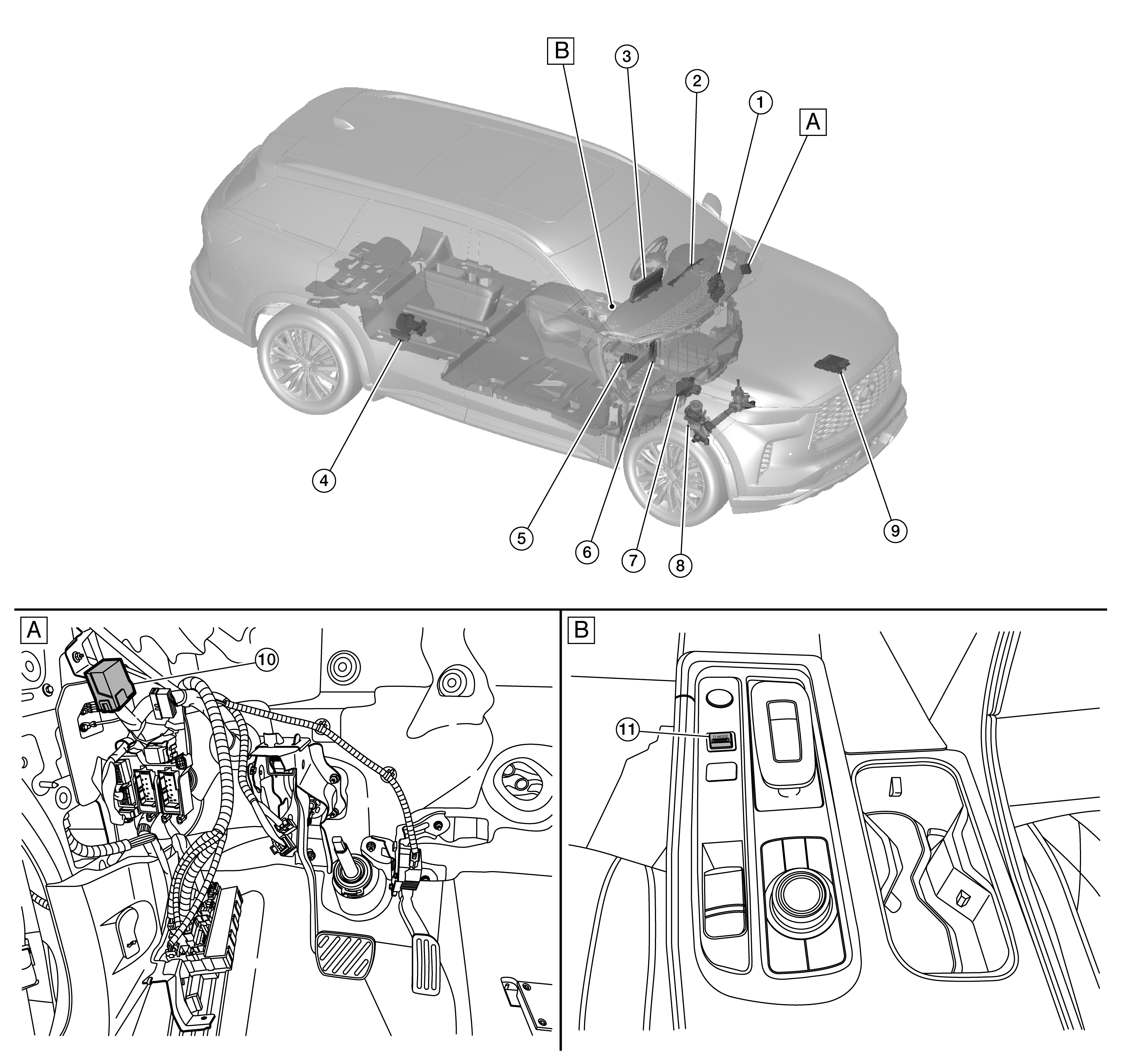

GNSDB139948Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Upside of instrument lower panel LH SYMBOL Center console finisher
SYMBOL BCM (Body Control Module). Refer to System Description . SYMBOL Combination meter. Refer to Combination Meter (Full TFT Meter), or Combination Meter (7 Inch Information Display Meter) for detailed component location. SYMBOL AV control unit. Refer to AV Control Unit for detailed component location.
SYMBOL AWD control unit. Refer to AWD Control Unit for detailed component location. SYMBOL Intelligent Key unit. Refer to Intelligent Key Unit for detailed component location. SYMBOL ADAS (Advanced Driver Assistance System) control unit 2. Refer to ADAS Control Unit 2 for detailed component location.
SYMBOL ABS (Anti-lock Braking System) actuator and electric unit (control unit). Refer to Component Location for detailed component location. SYMBOL Power steering control module SYMBOL ECM (Engine Control Module). Refer to Component Location for detailed component location.
SYMBOL Chassis control module SYMBOL Drive mode switch
