Trouble Shooting Charts

TROUBLE SHOOTING CHART DIRECTORY

Application	Go To:

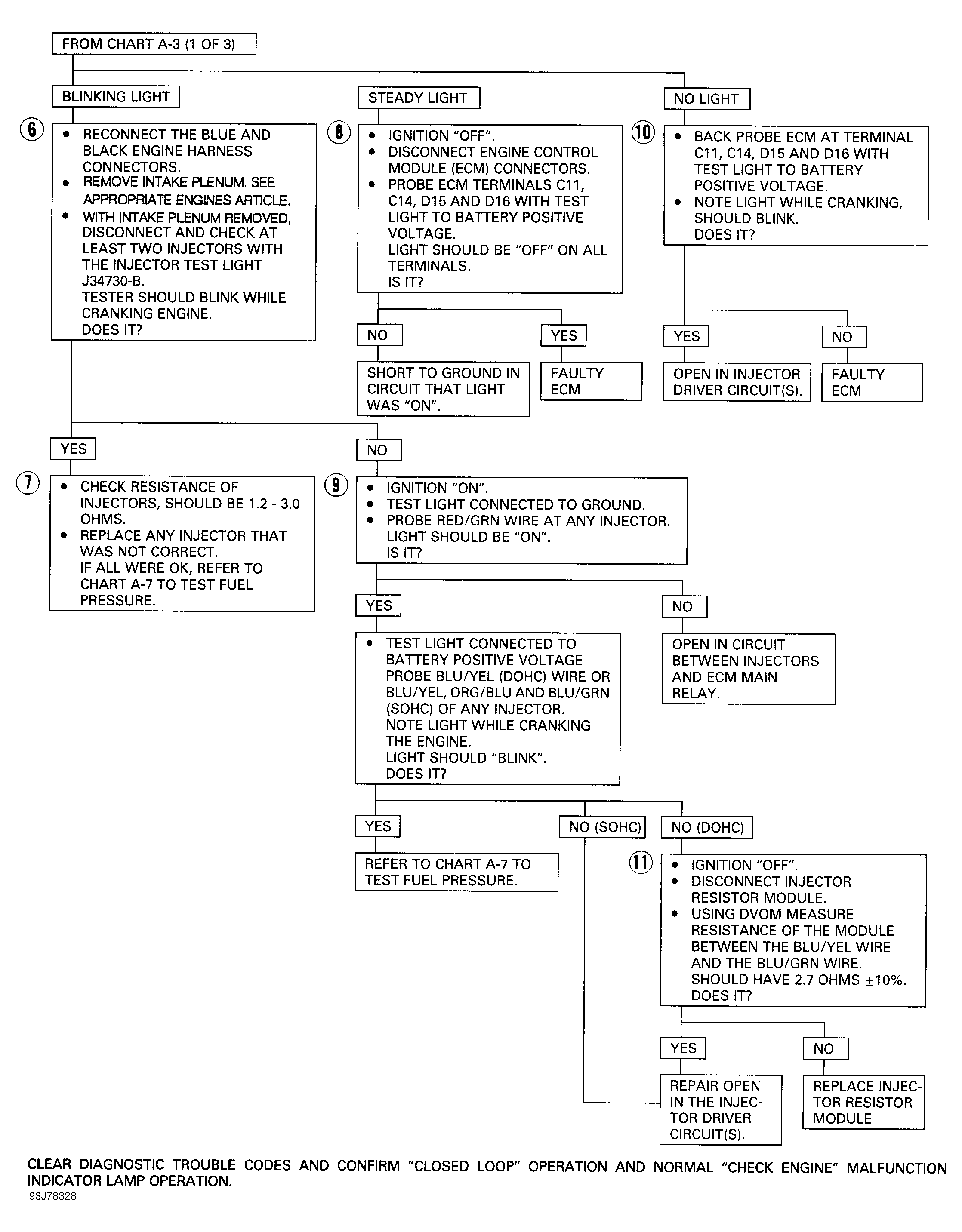

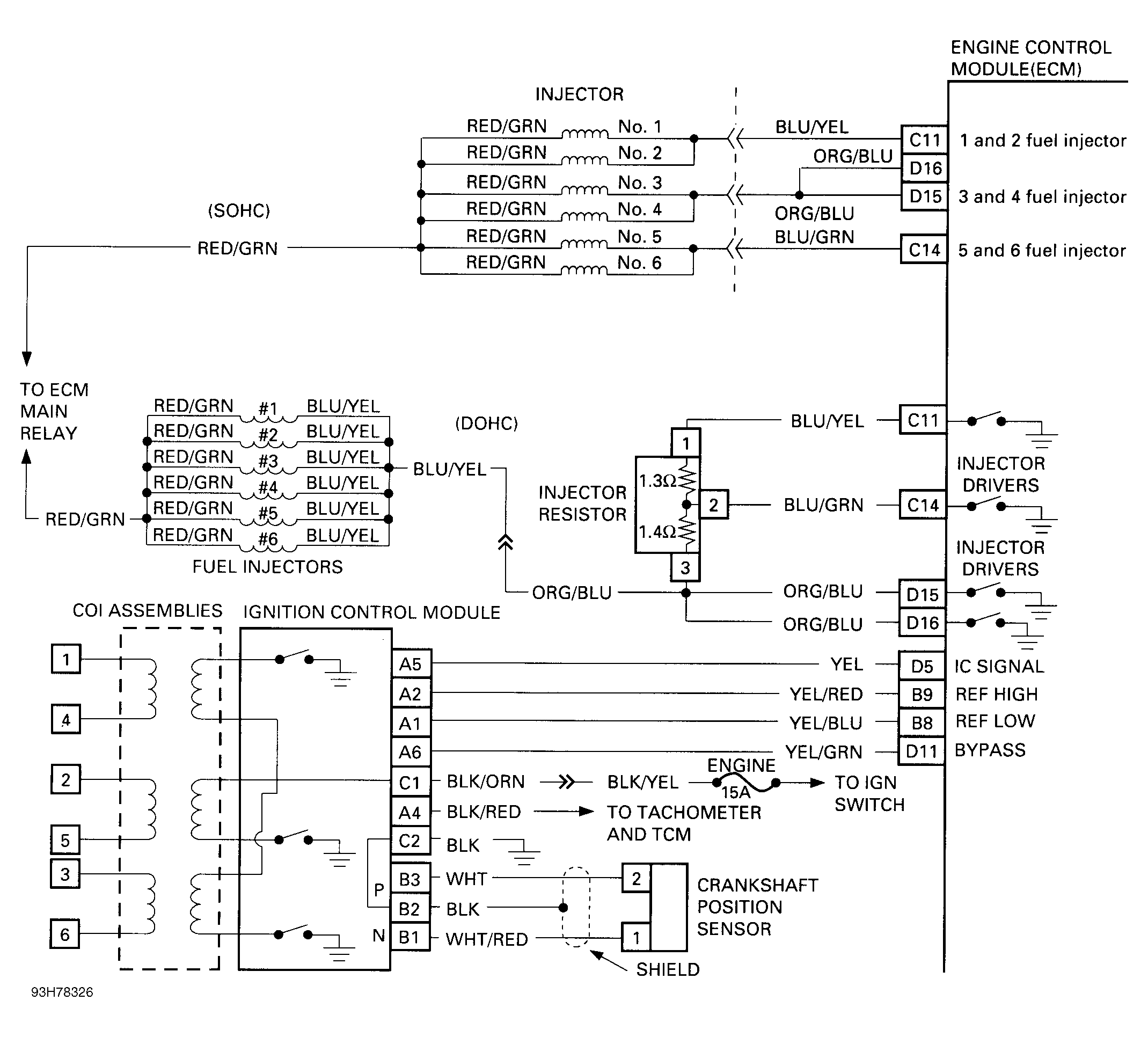

Engine Cranks But Will Not Run	See Figure -Figure

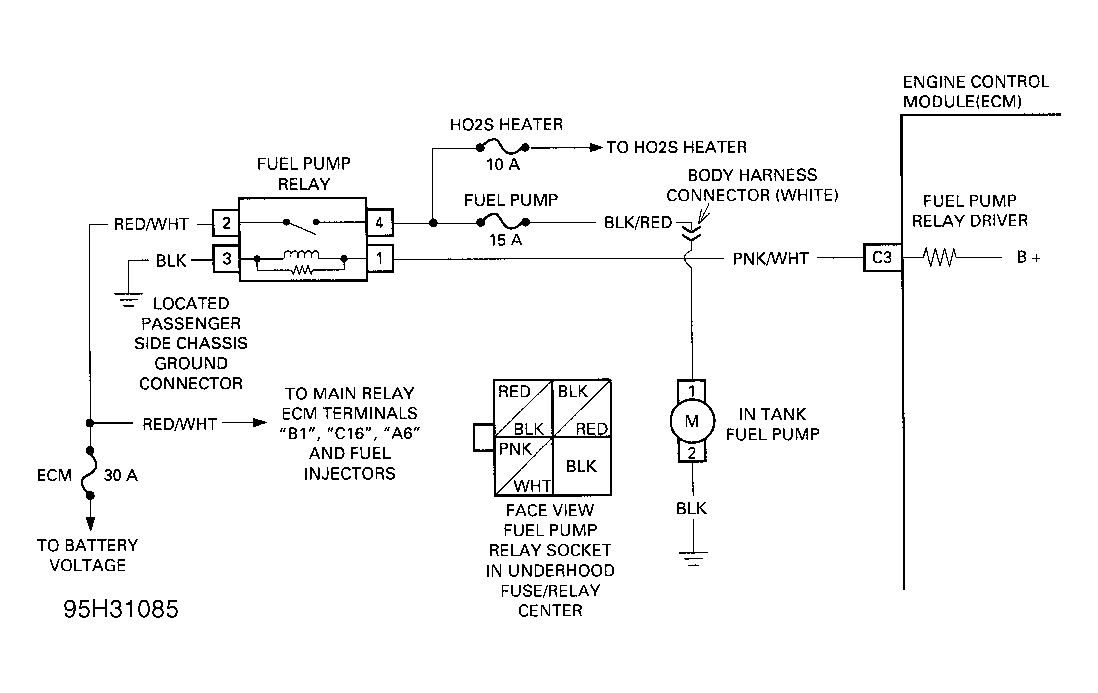

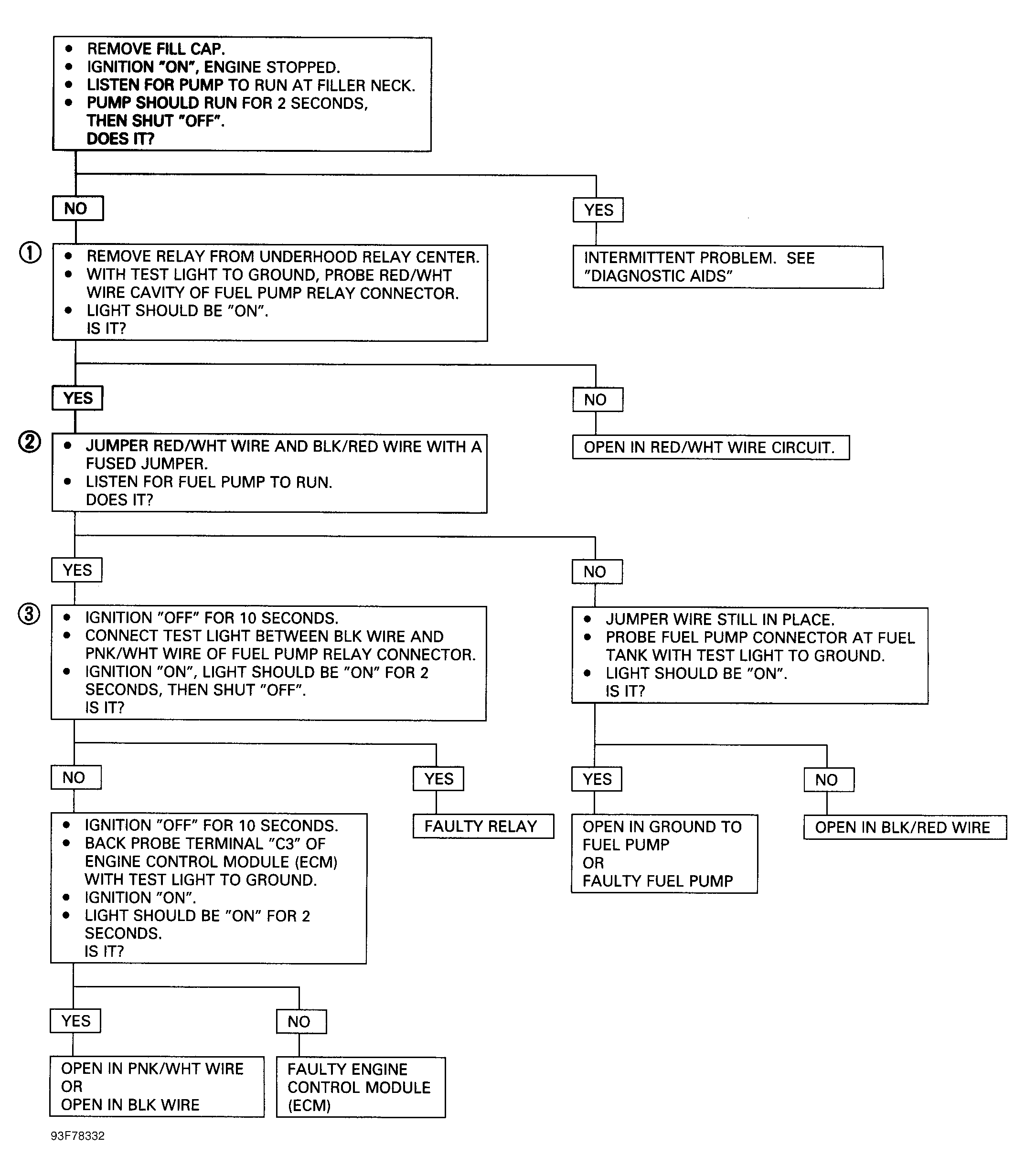

Fuel Pump Relay Circuit Test	See Figure & Figure

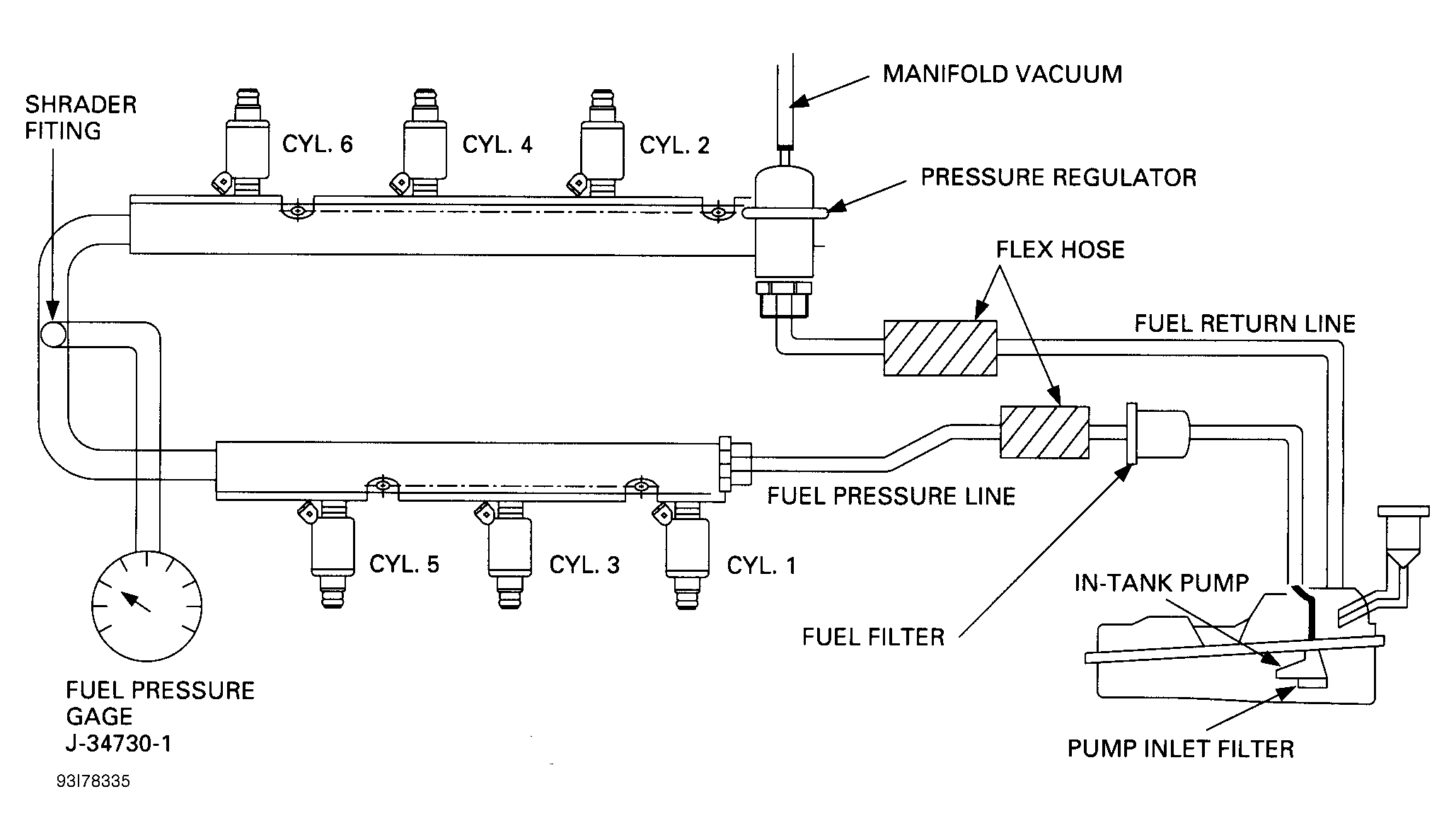

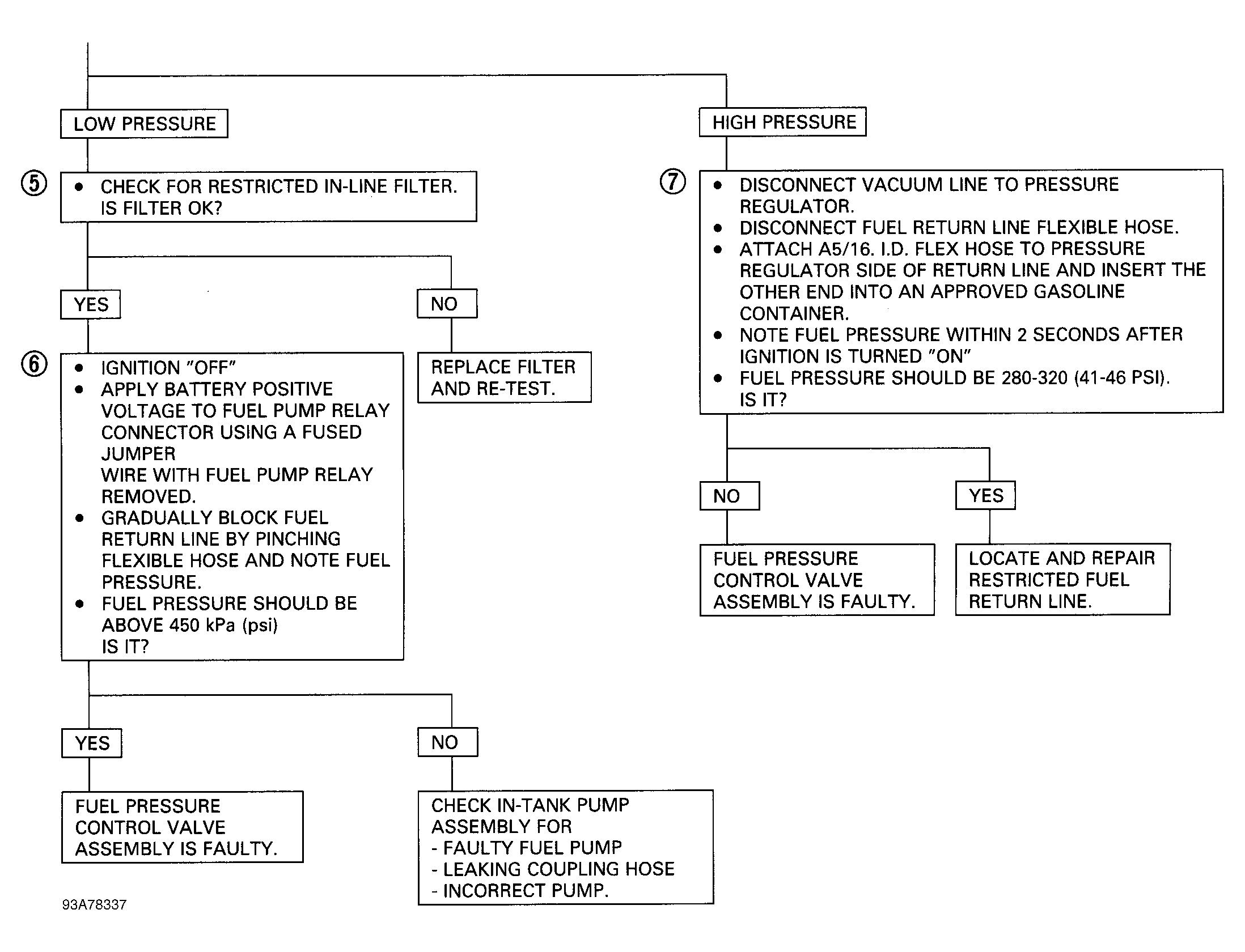

Fuel System Pressure Test	See Figure -Figure

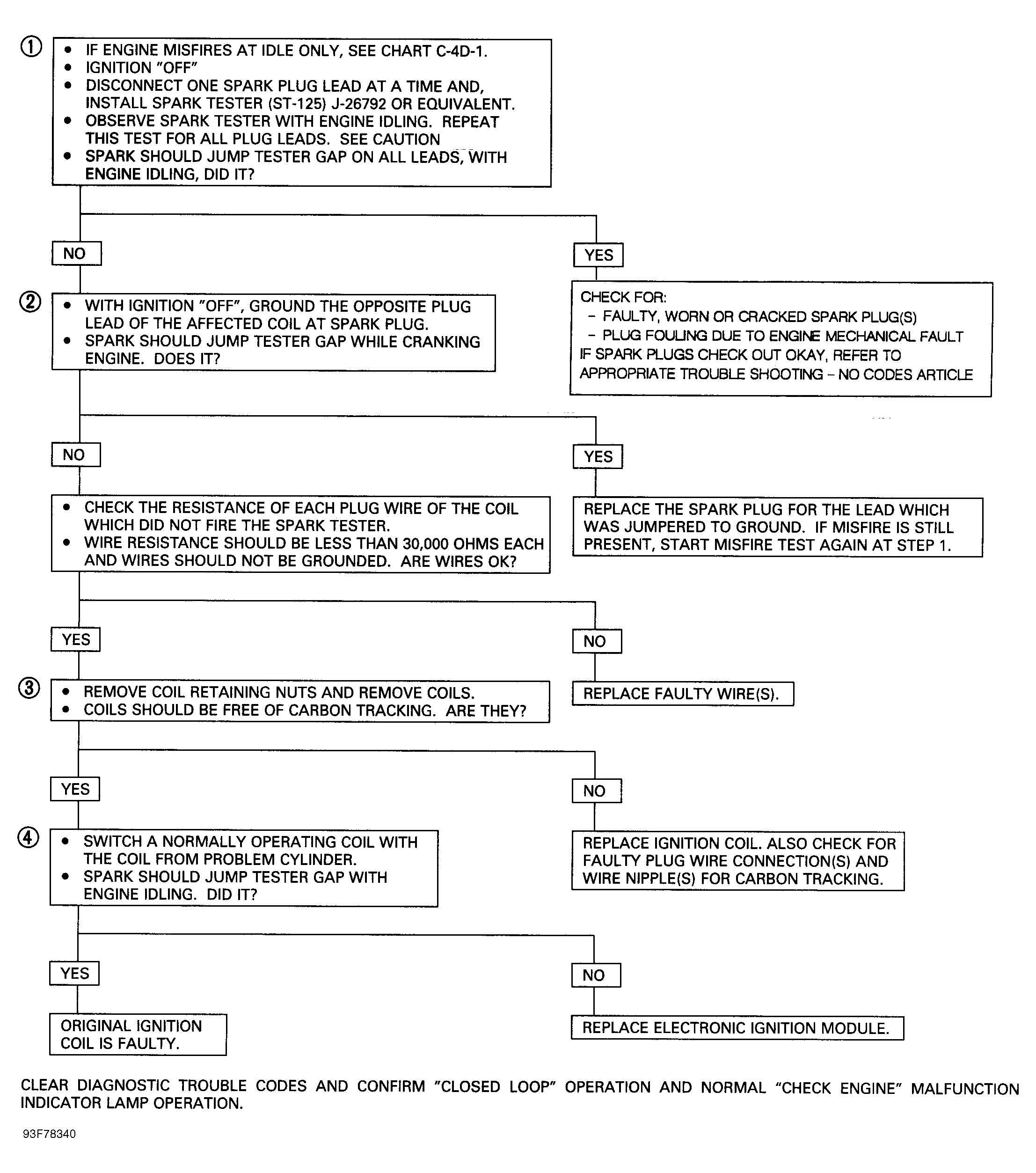

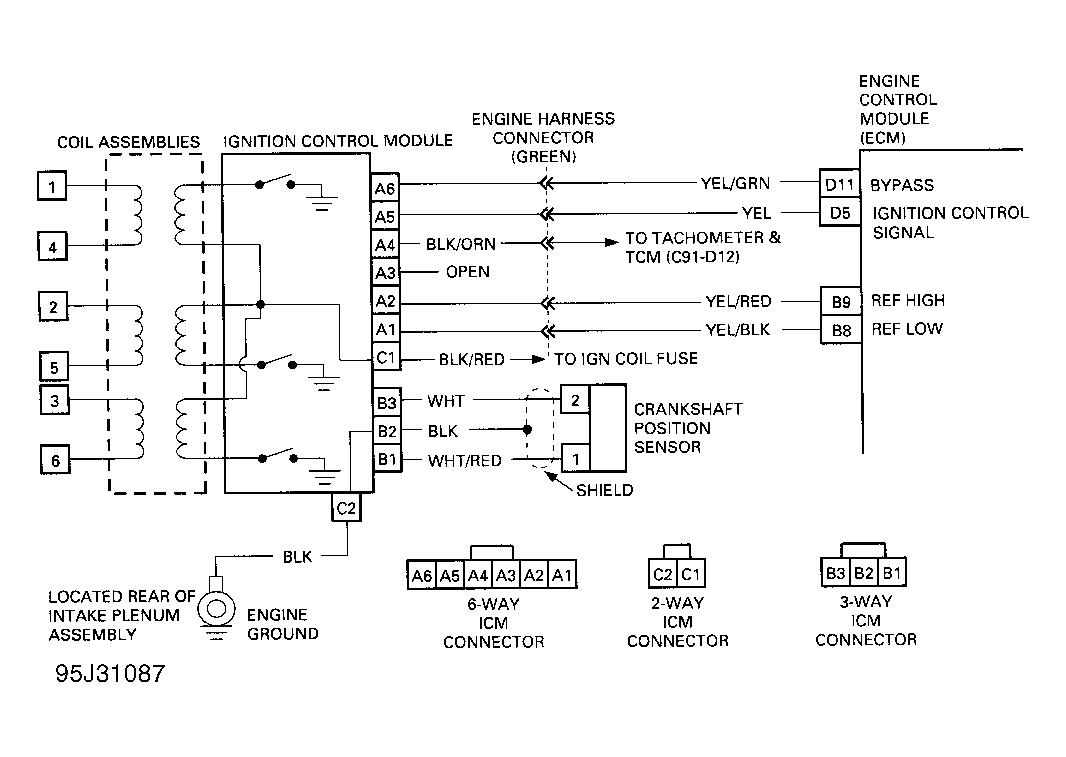

Ignition System Check	See Figure -Figure
