Home >> Isuzu >> 1997 >> Trooper LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests >> Component Locations

Component Locations

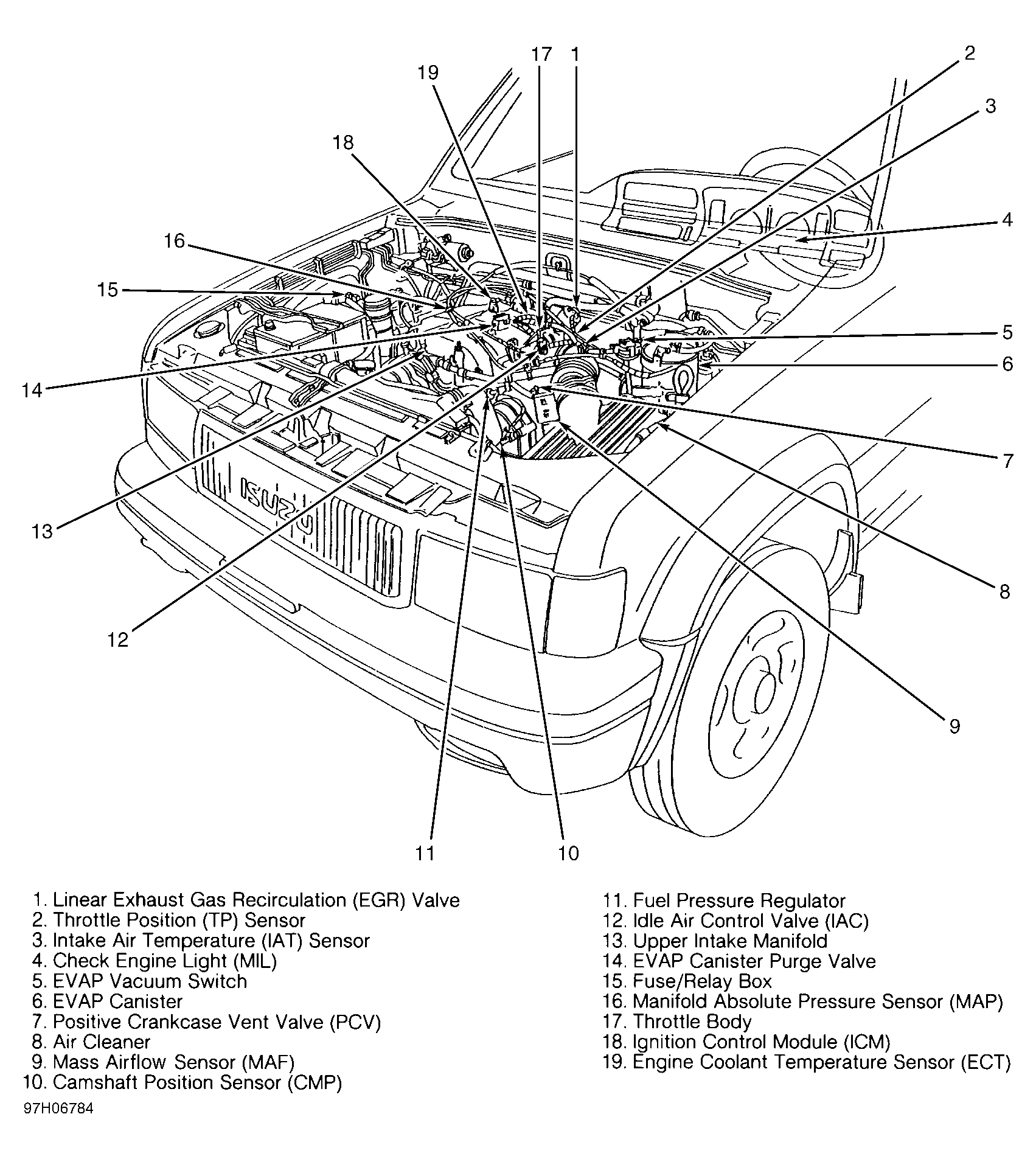

Fig 1: Component Location
G97H06784Courtesy of ISUZU MOTOR CO.
