Crankshaft Position Sensor: Removal

1. Disconnect battery ground cable
2. Wiring connector from crankshaft position sensor.
3. Remove crankshaft position sensor from cylinder block.

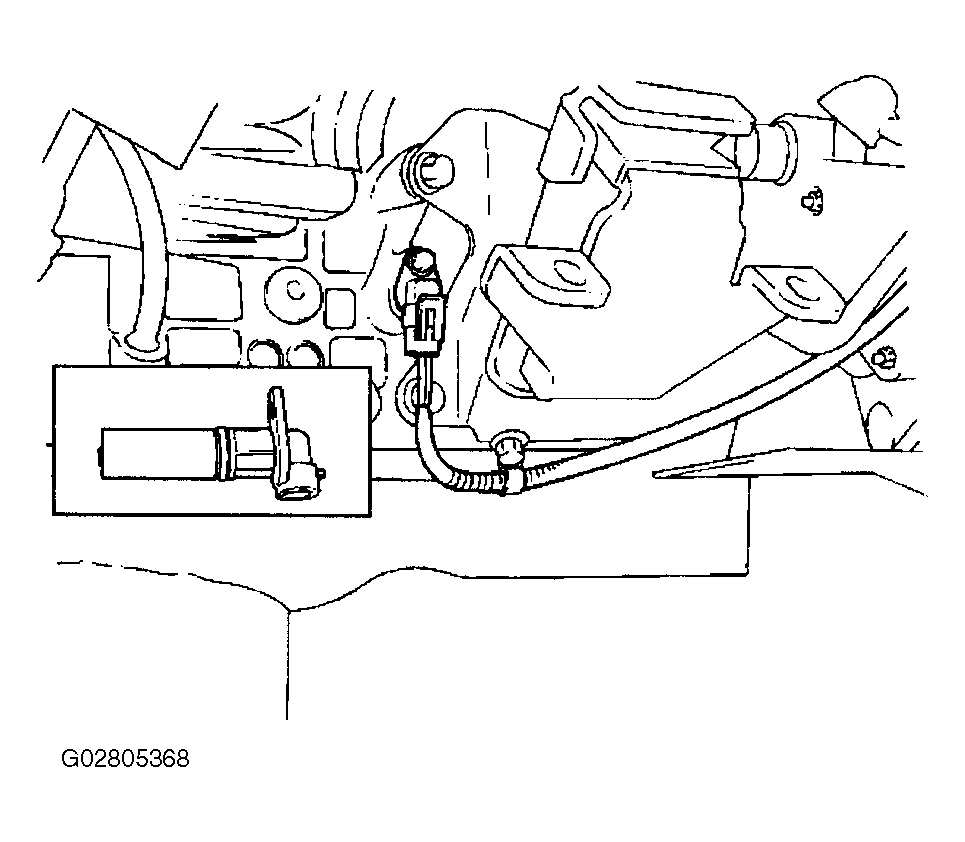

Fig 1: Locating Crankshaft Position Sensor

Courtesy of ISUZU MOTOR CO.
