Fuse Panel Identification: Notes

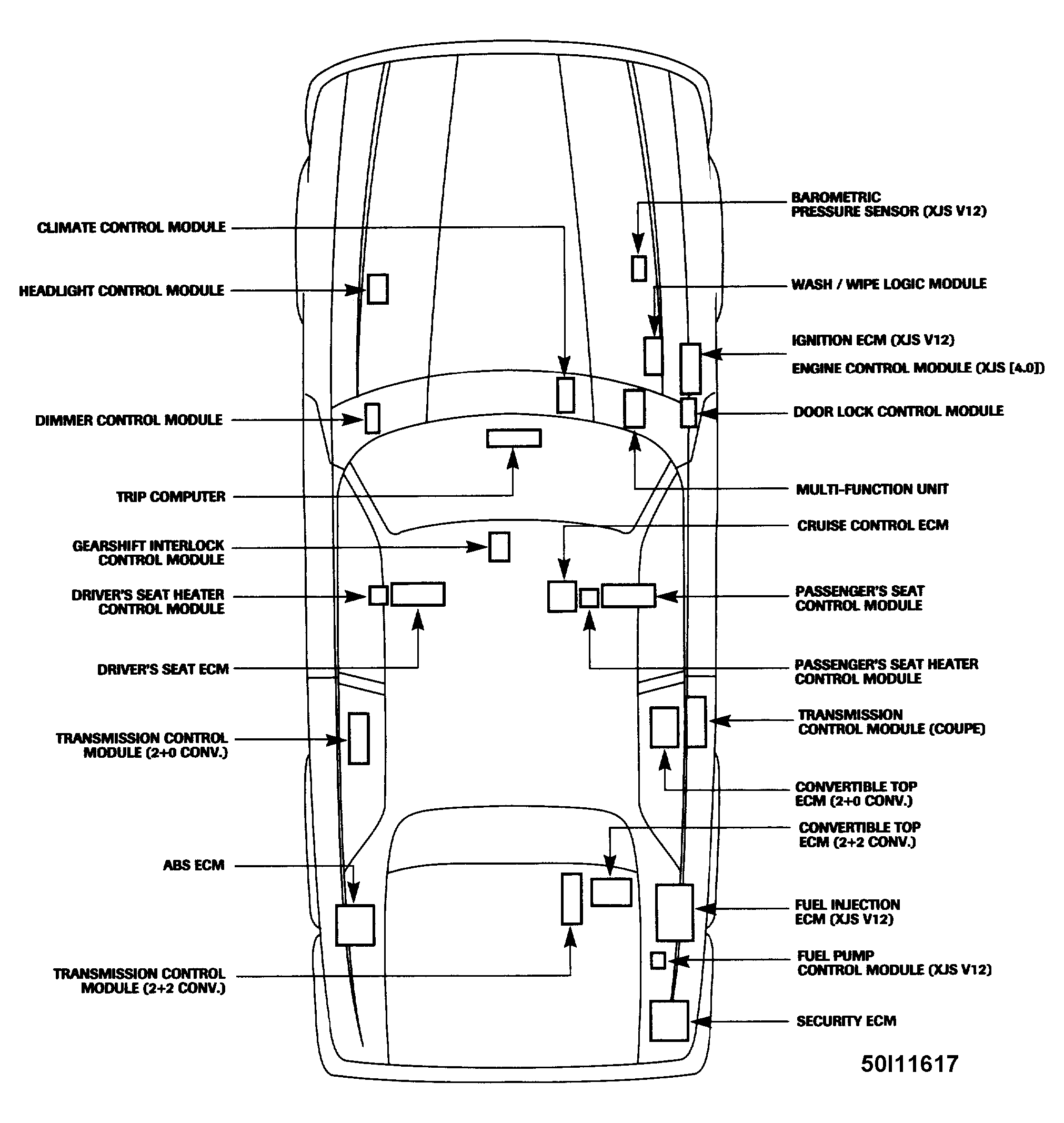

Fig 1: Vehicle Control Module Locations

G50I11617

Courtesy of JAGUAR CARS, INC.

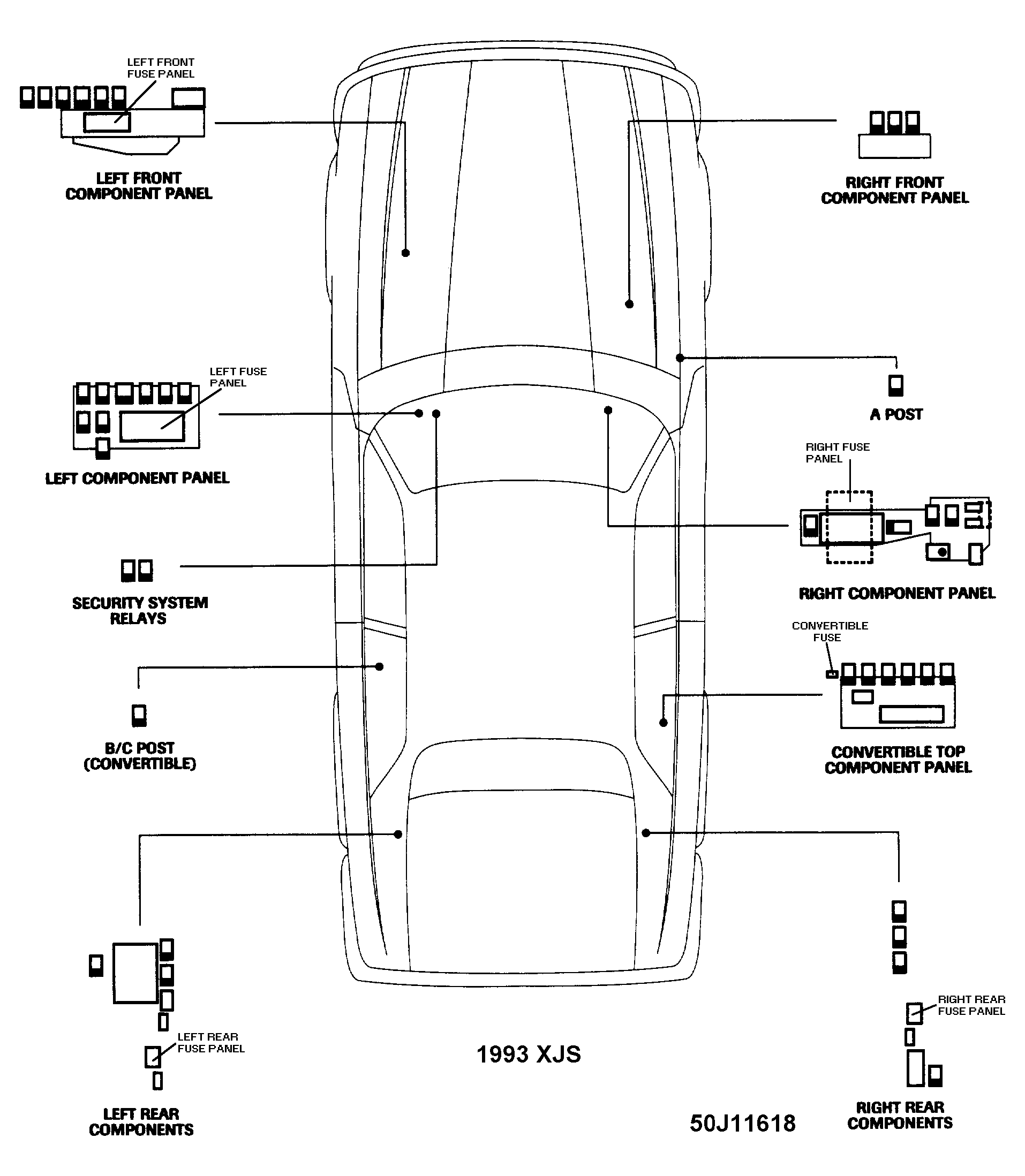

Fig 2: Fuse Panel Locations (1993)

G50J11618

Courtesy of JAGUAR CARS, INC.

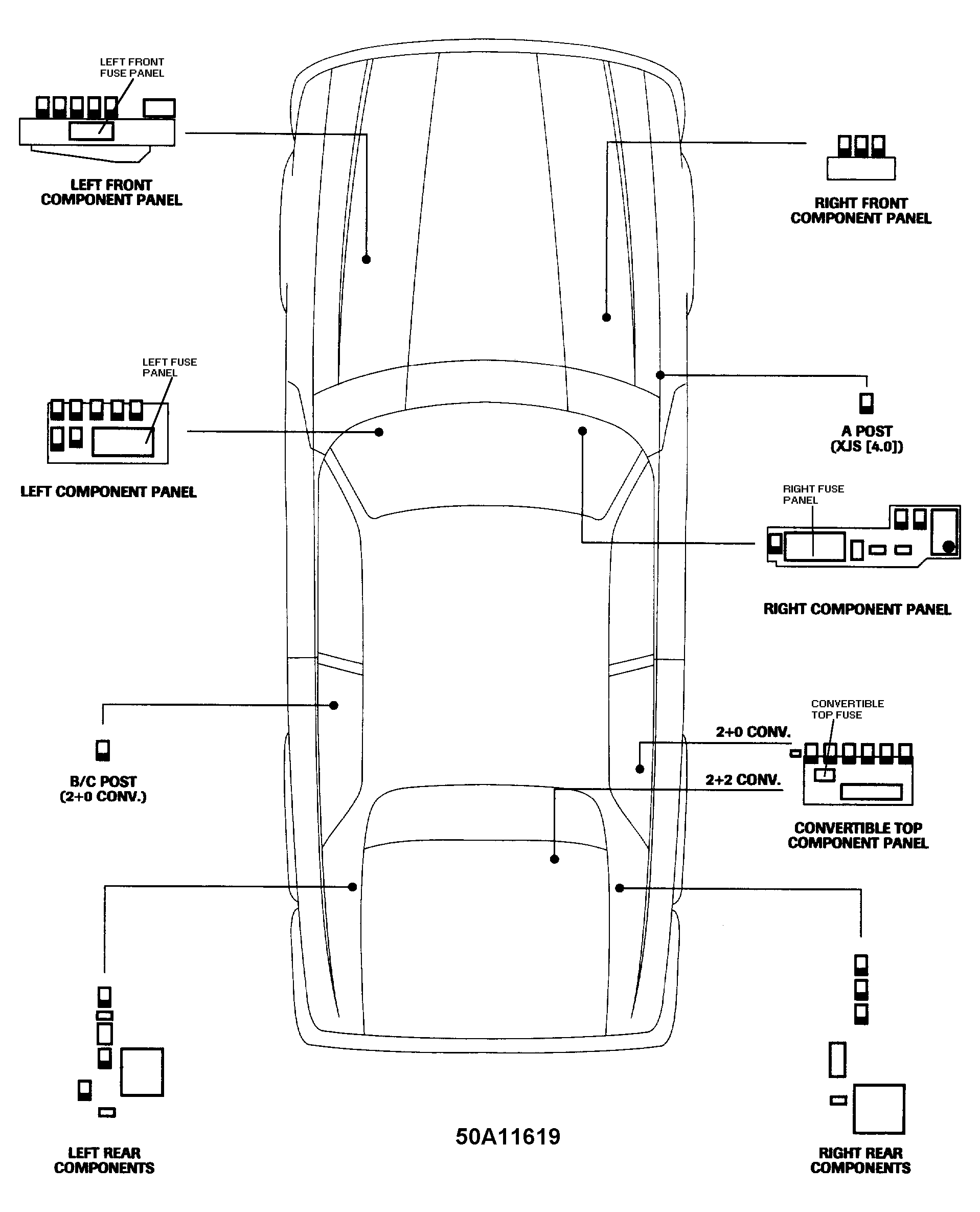

Fig 3: Fuse Panel Locations (1994-96)

G50A11619

Courtesy of JAGUAR CARS, INC.
