Connector Identification

NOTE: Limited connector identification figures available from manufacturer.

DO NOT backprobe ECM harness connector when testing. Place tester probe into contact with terminal, from terminal side of wiring harness connectors in engine compartment. DO NOT puncture wire insulation. For female harness connectors, just touch terminal lightly with tester probe. DO NOT insert probe into terminal.

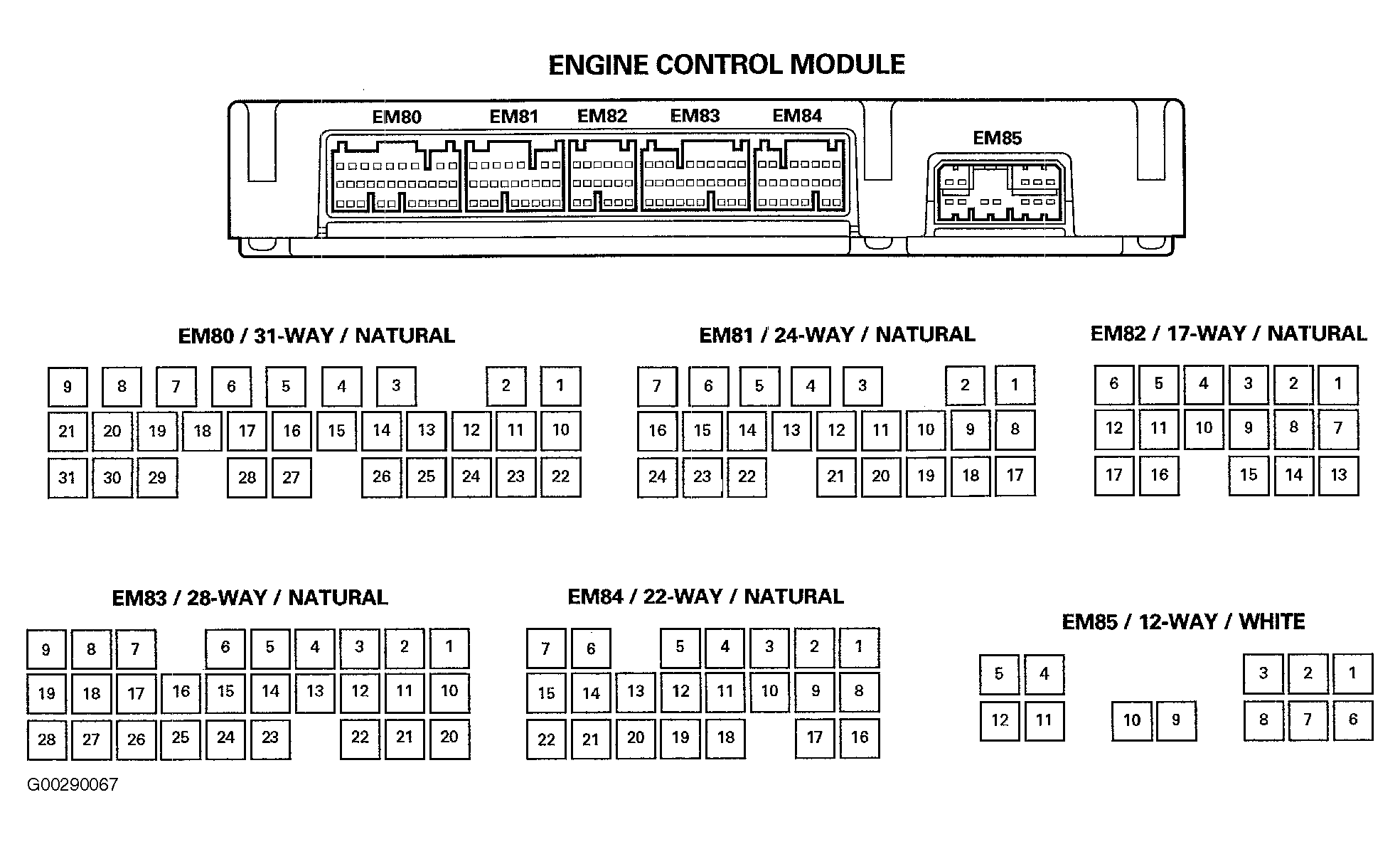

Fig 1: Identifying ECM Harness Connector Terminals
G00290067Courtesy of JAGUAR CARS, INC.

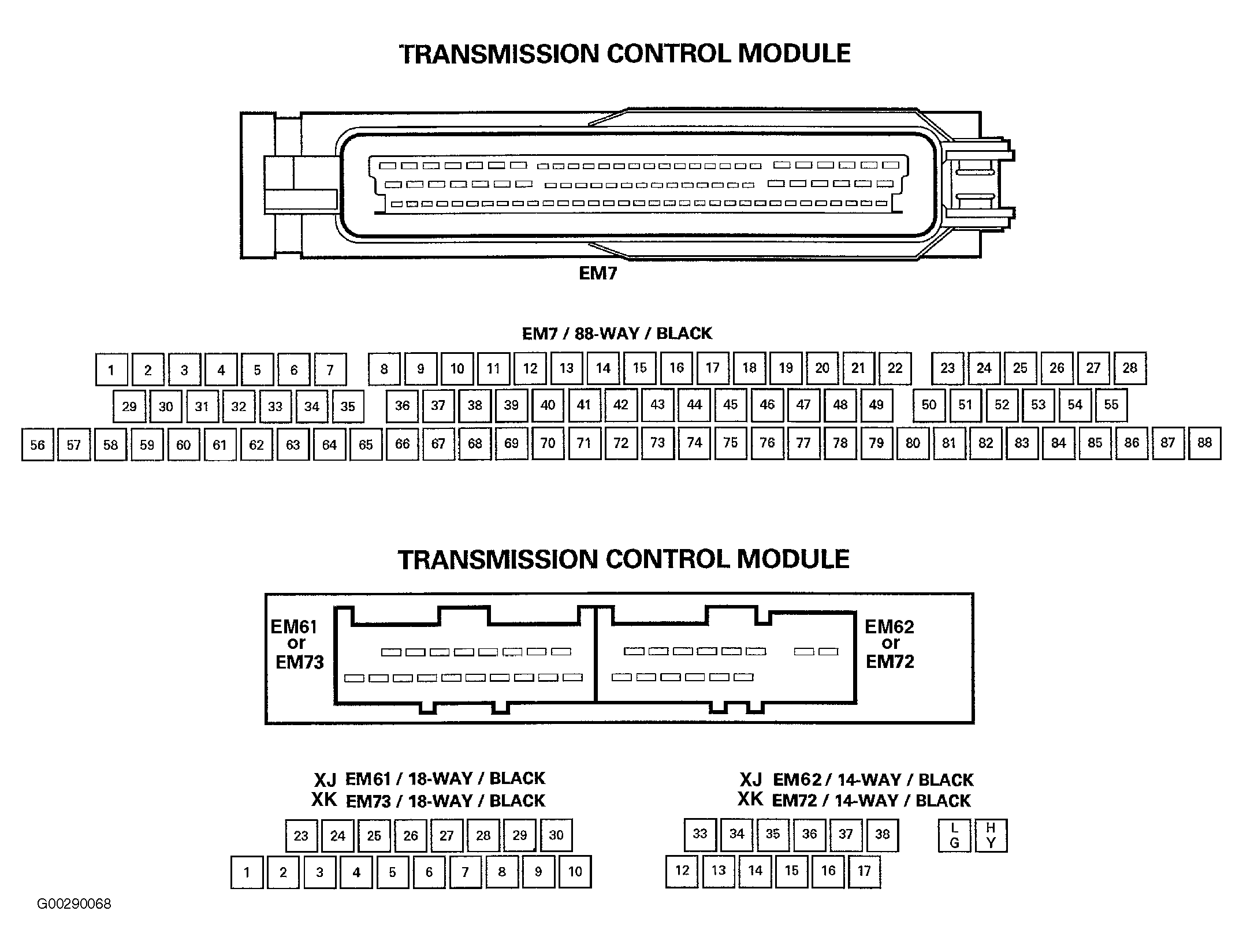

Fig 2: TCM Harness Connector Terminal Identification
G00290068Courtesy of JAGUAR CARS, INC.

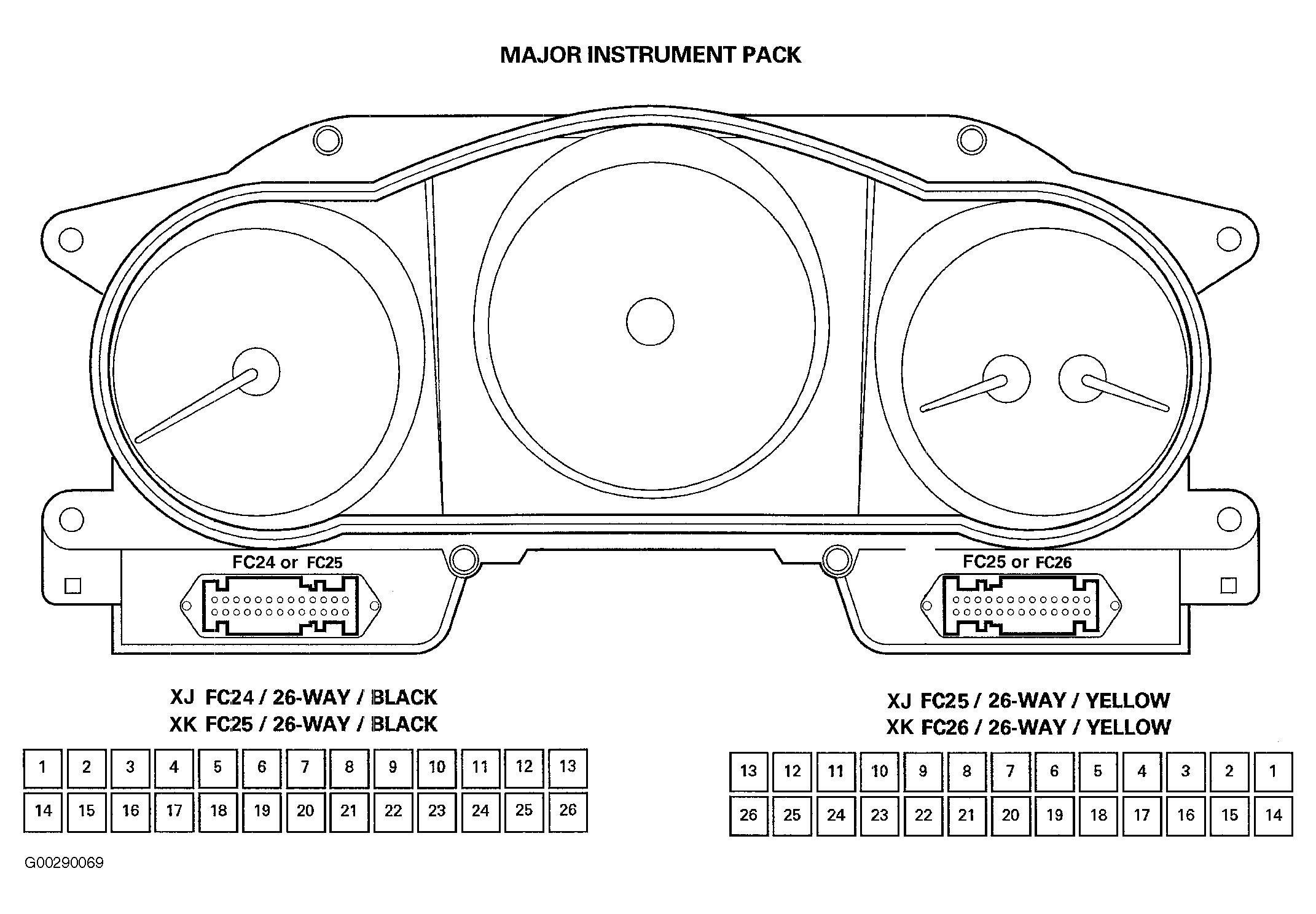

Fig 3: Identifying Instrument Pack Harness Connector Terminals
G00290069Courtesy of JAGUAR CARS, INC.
