Home >> Jeep >> 1988 >> Comanche Eliminator, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Injection System - Multi-Point >> Testing >> Fuel Injector Test

Fuel Injector Test

See FUEL INJECTOR TEST PROCEDURE chart. See Fig 1 .

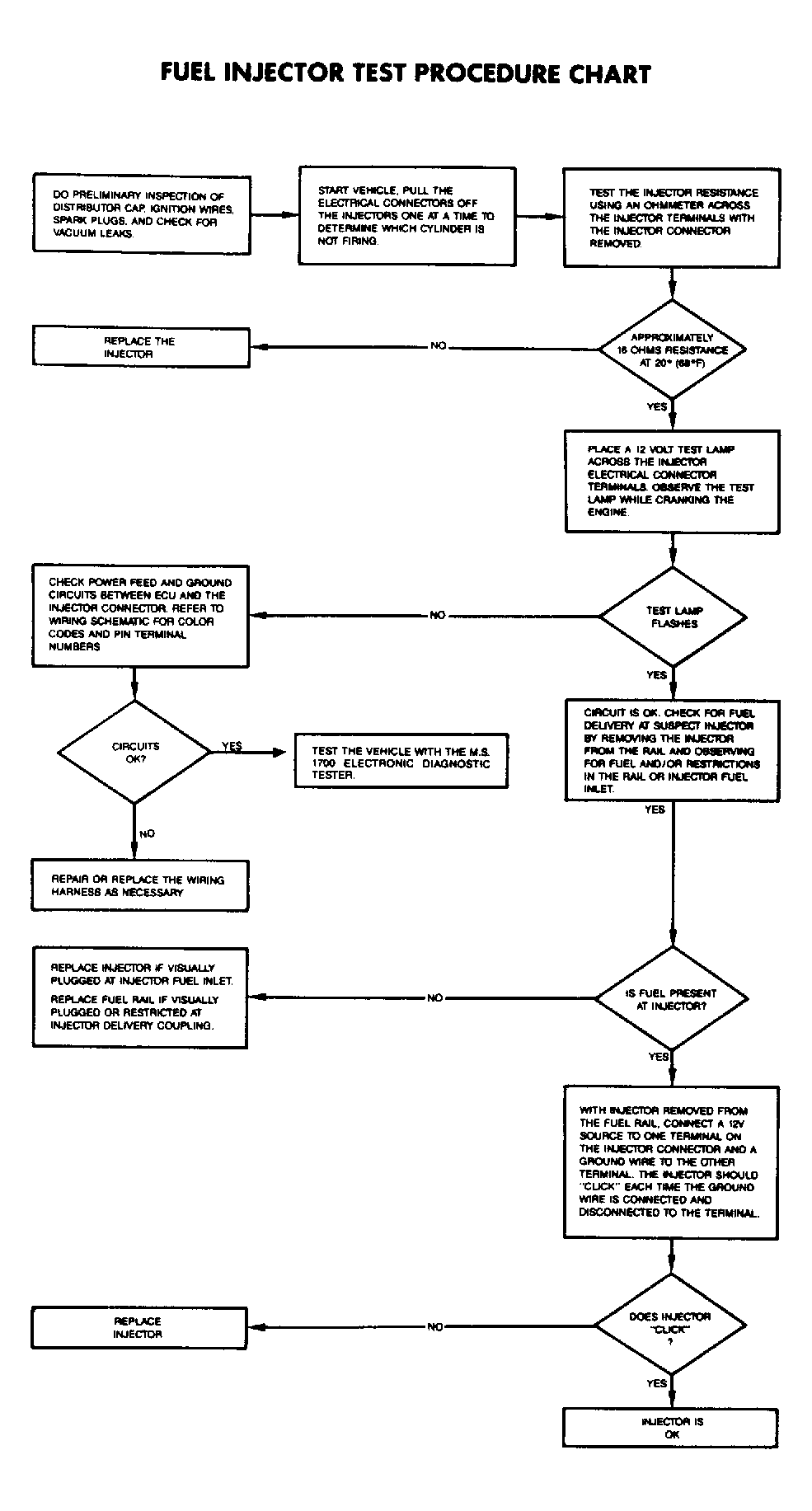

Fig 1: Fuel Injector Test Procedure Chart

G12552
