Throttle Position Sensor (TPS) Test

See THROTTLE POSITION SENSOR TEST PROCEDURE chart.

See Fig 1 .

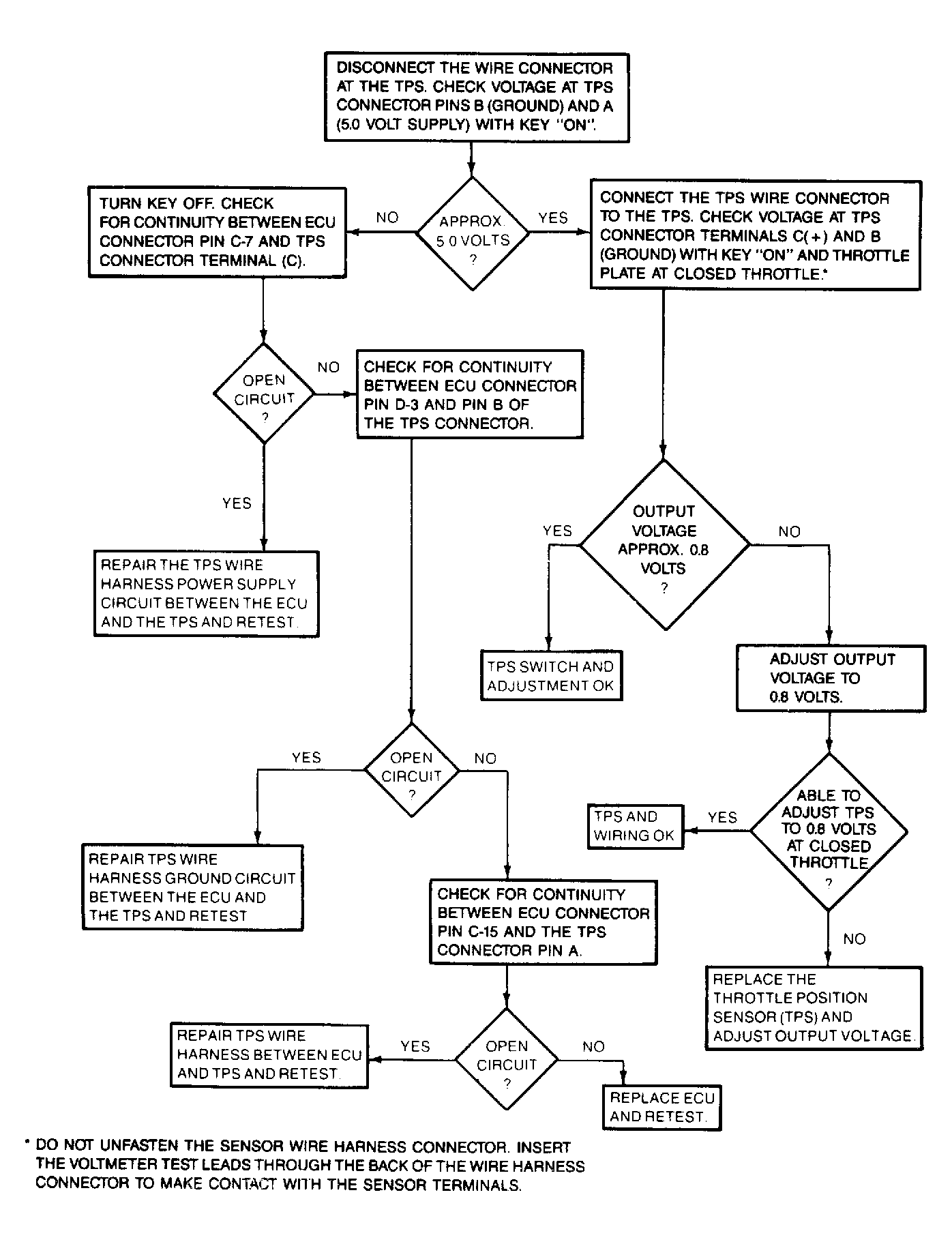

Fig 1: Throttle Position Sensor Test Procedure Chart (M/T)

G12551
