Connector Identification

NOTE: See Fig 1 thru Fig 19 for connector identification.

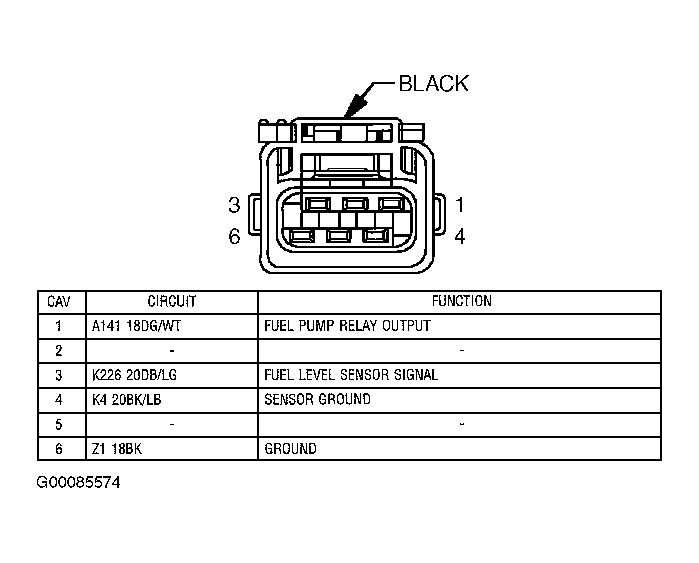

Fig 1: Identifying Fuel Pump Module Harness Connector (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

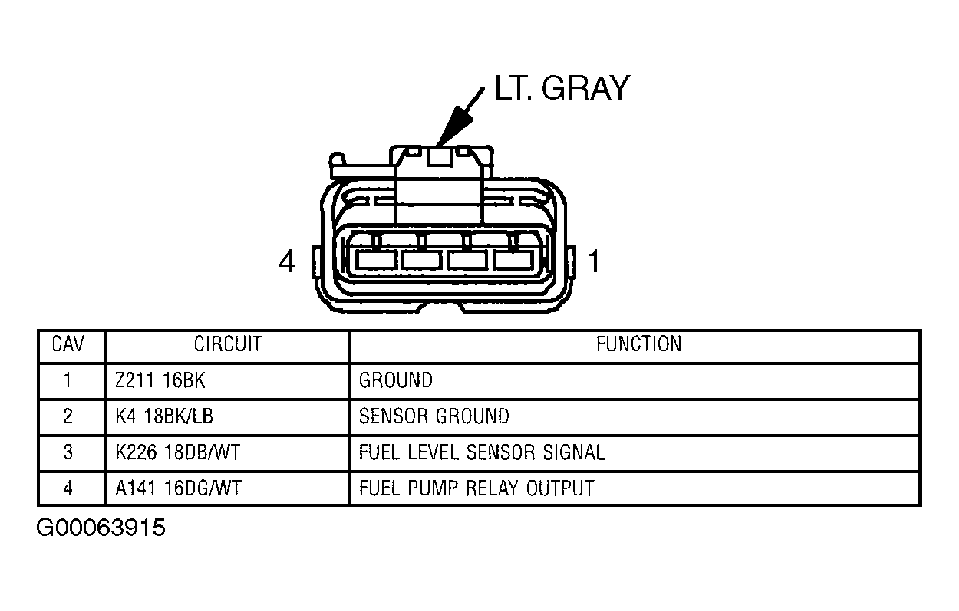

Fig 2: Identifying Fuel Pump Module Harness Connector (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

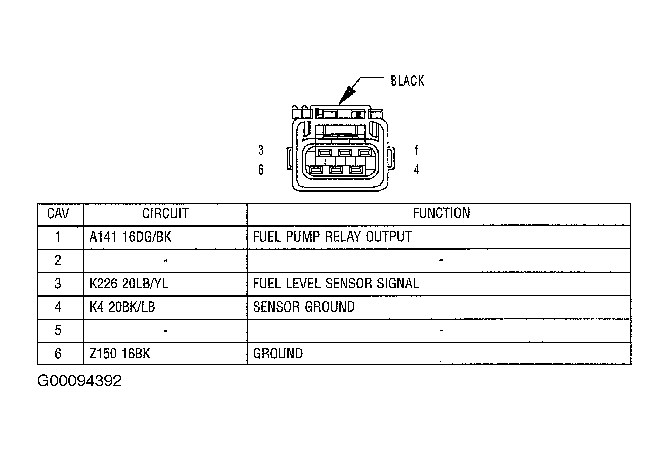

Fig 3: Identifying Fuel Pump Module Harness Connector (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

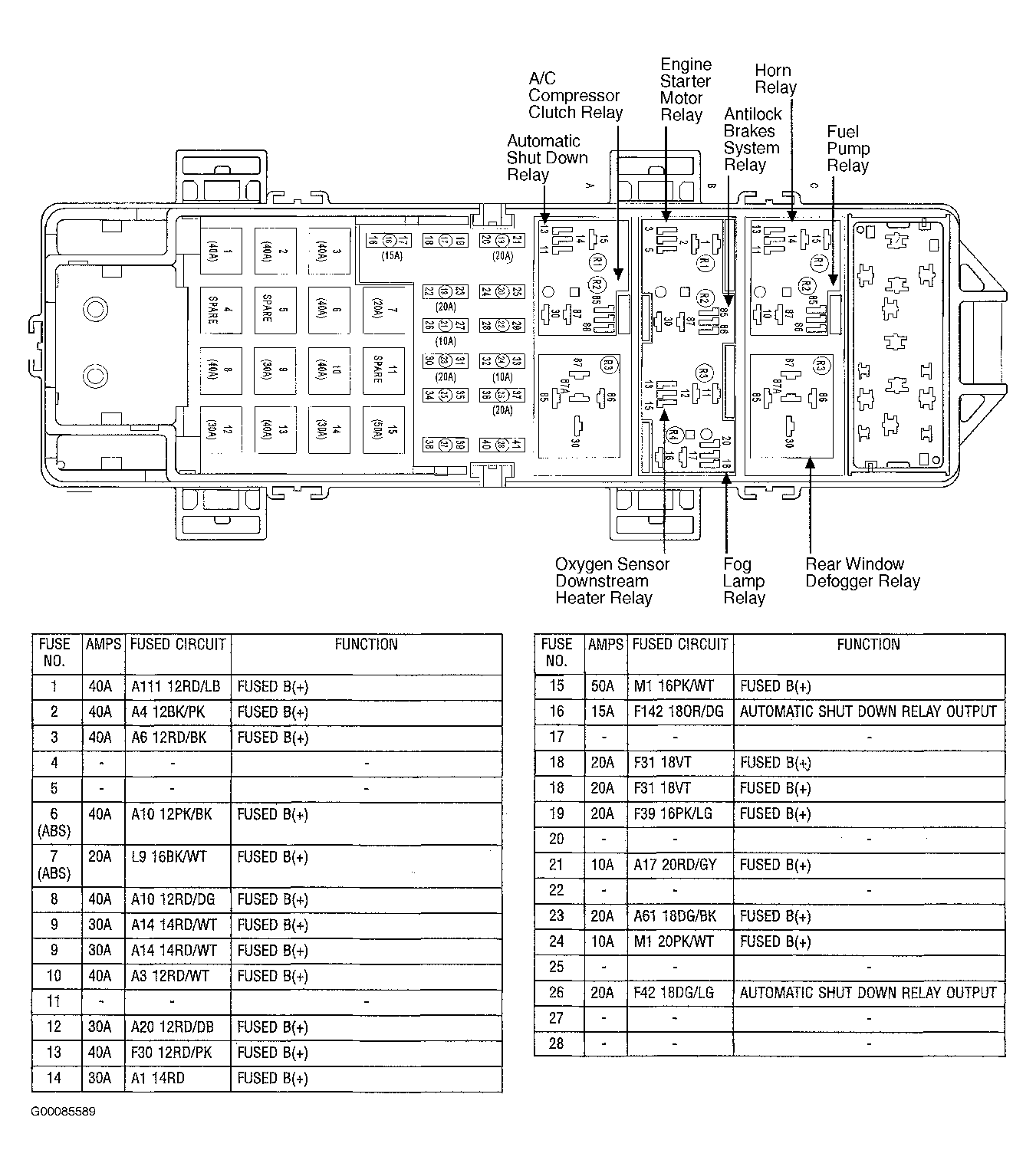

Fig 4: Identifying Power Distribution Center Fuses & Fuse Circuits (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Identifying Power Distribution Center Relay Cavities & Circuits (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

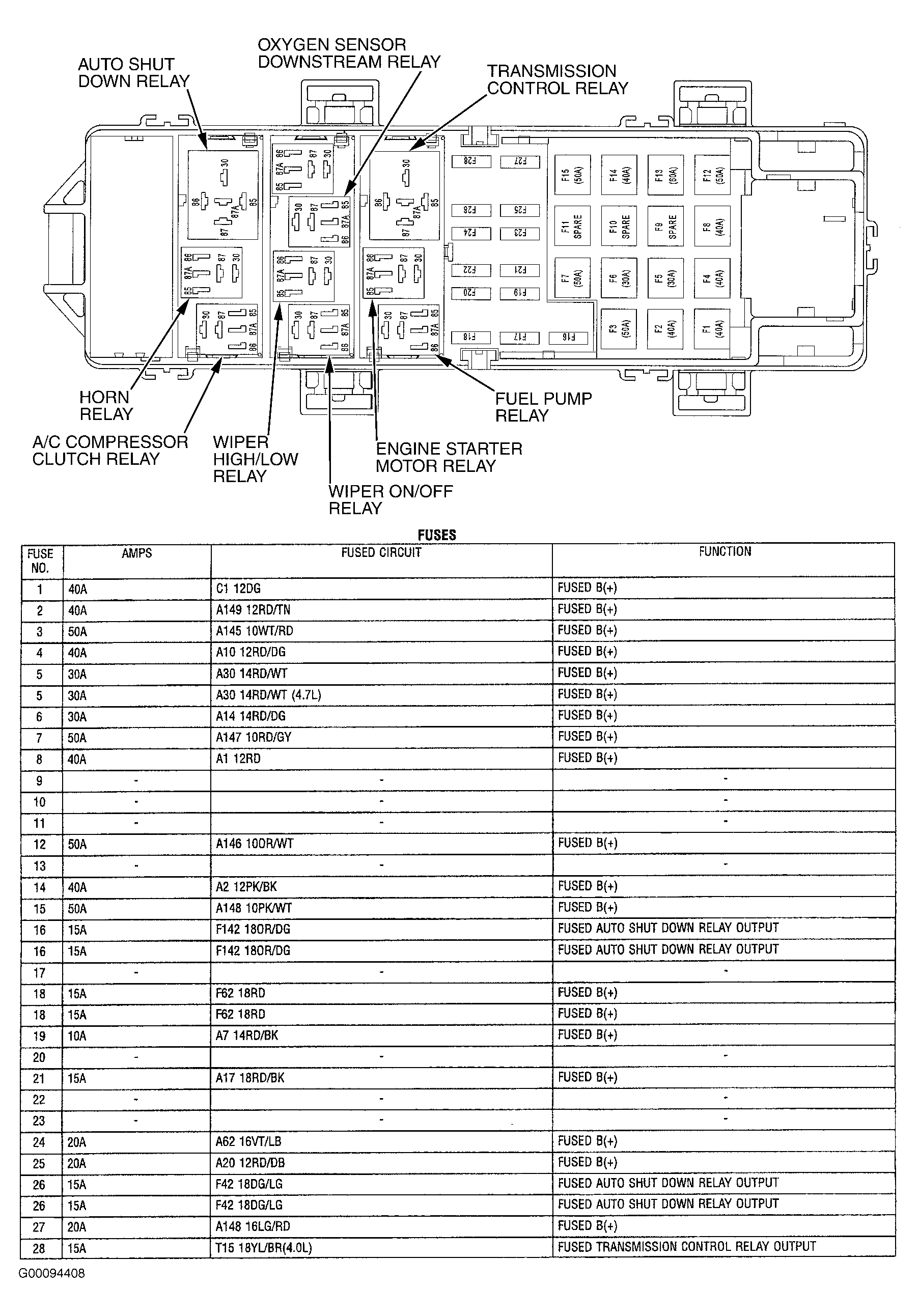

Fig 6: Identifying Power Distribution Center Fuses & Fuse Circuits (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

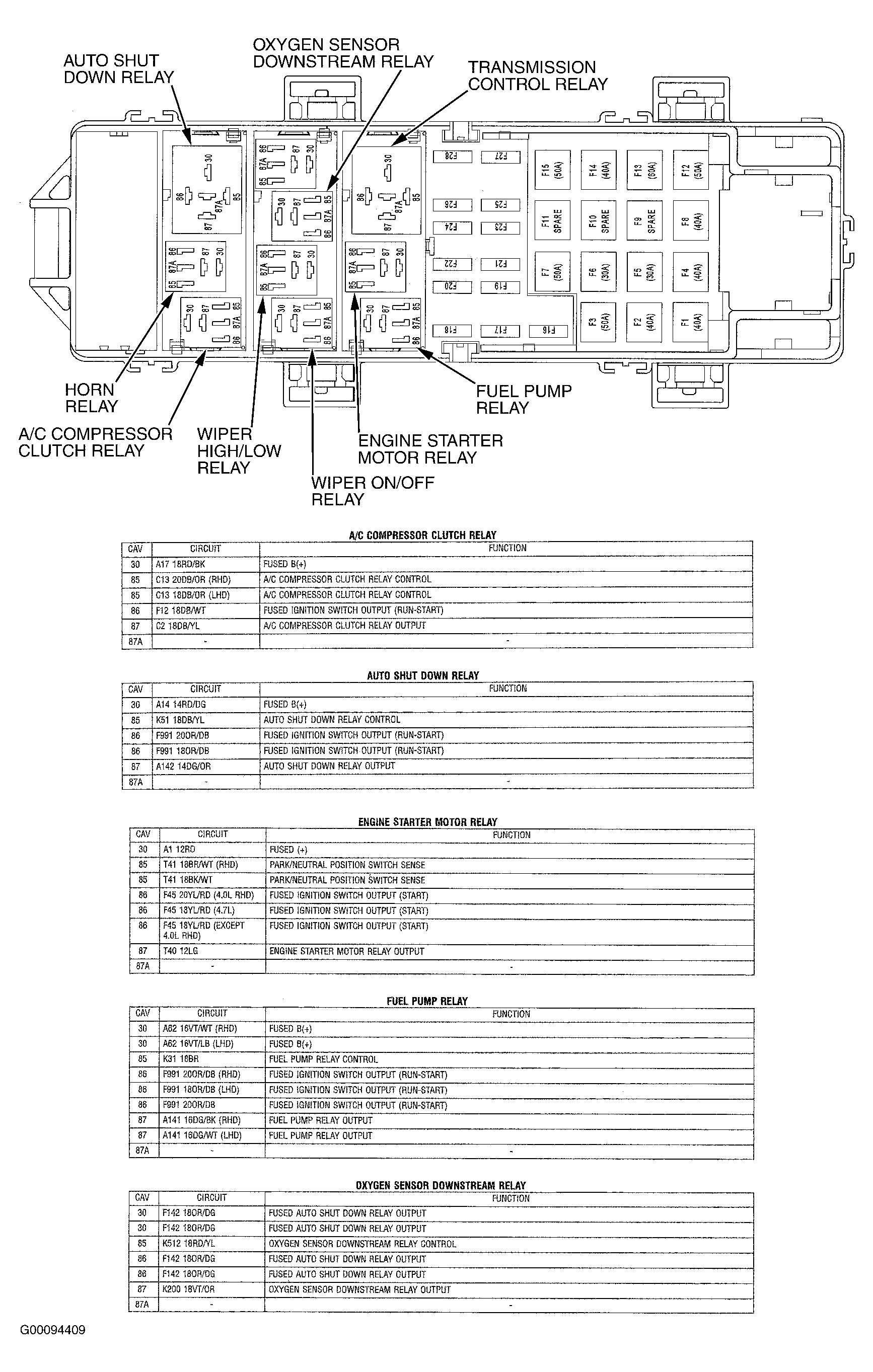

Fig 7: Identifying Power Distribution Center Relay Cavities & Circuits (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

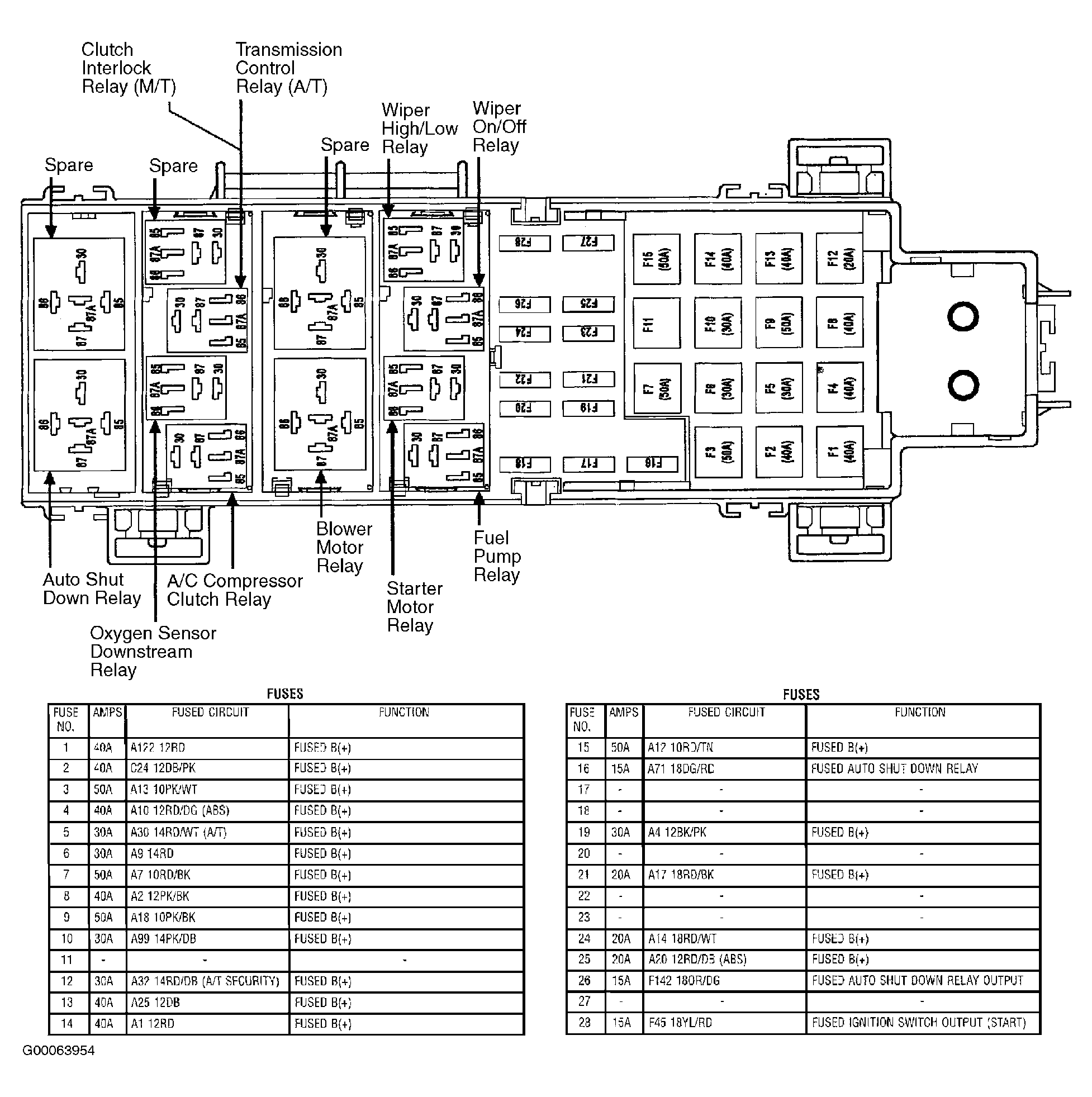

Fig 8: Identifying Power Distribution Center Fuses & Fuse Circuits (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

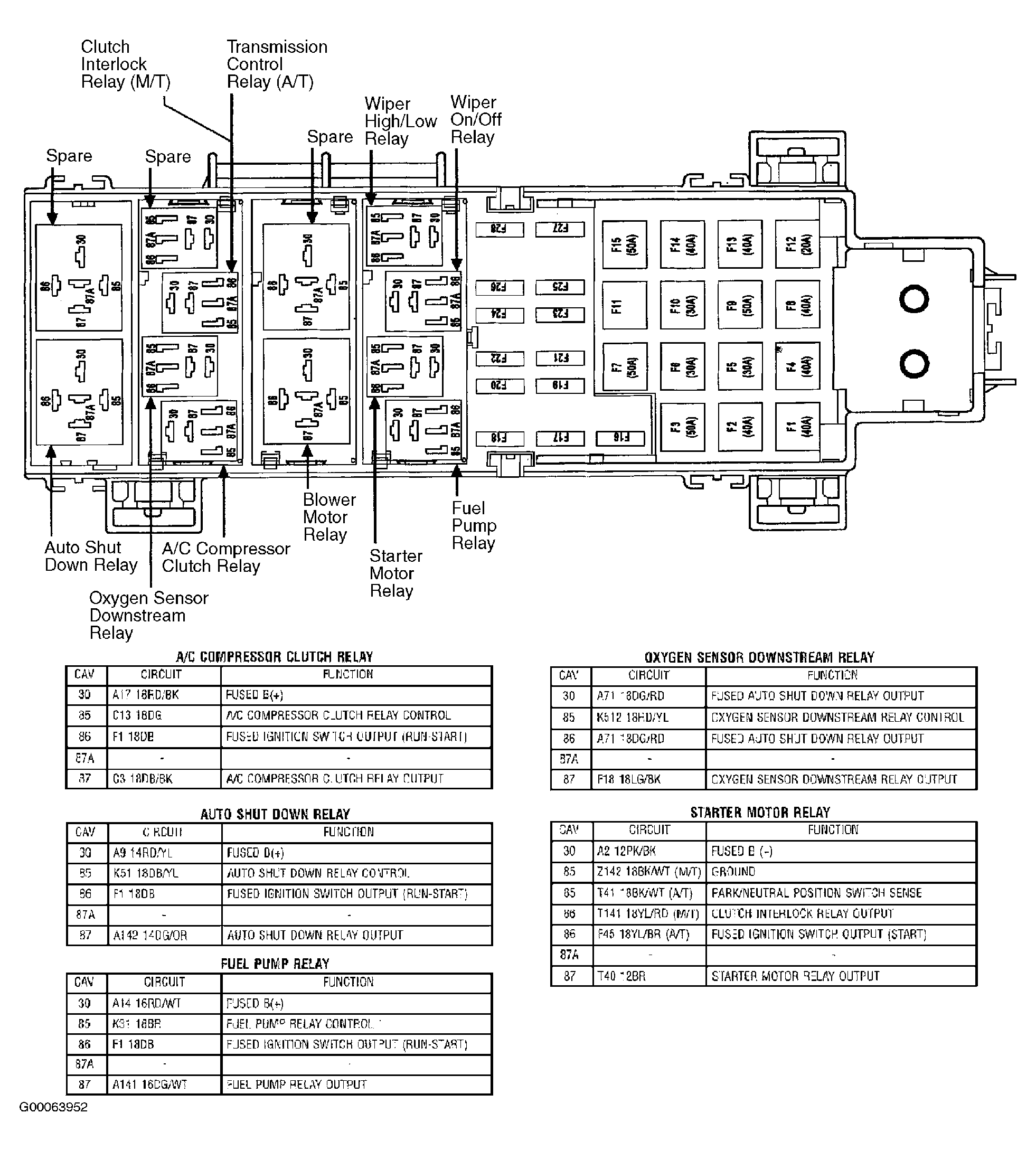

Fig 9: Identifying Power Distribution Center Relay Cavities & Circuits (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

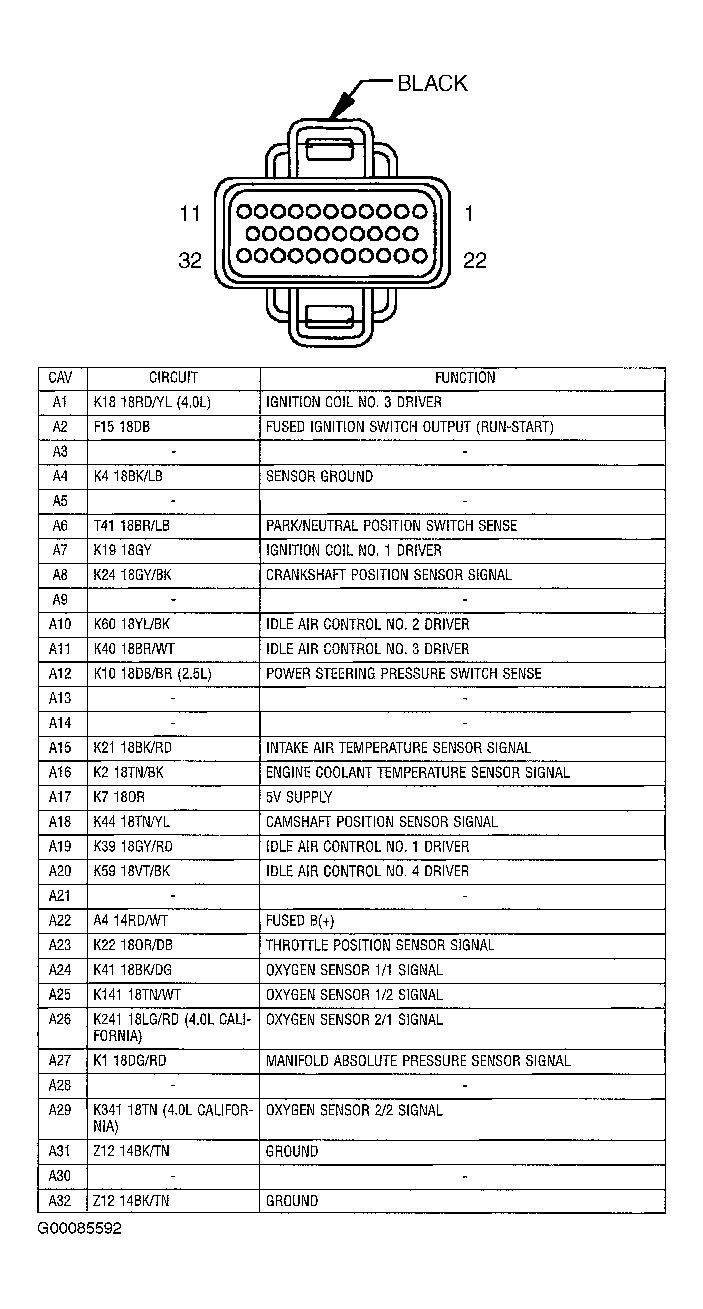

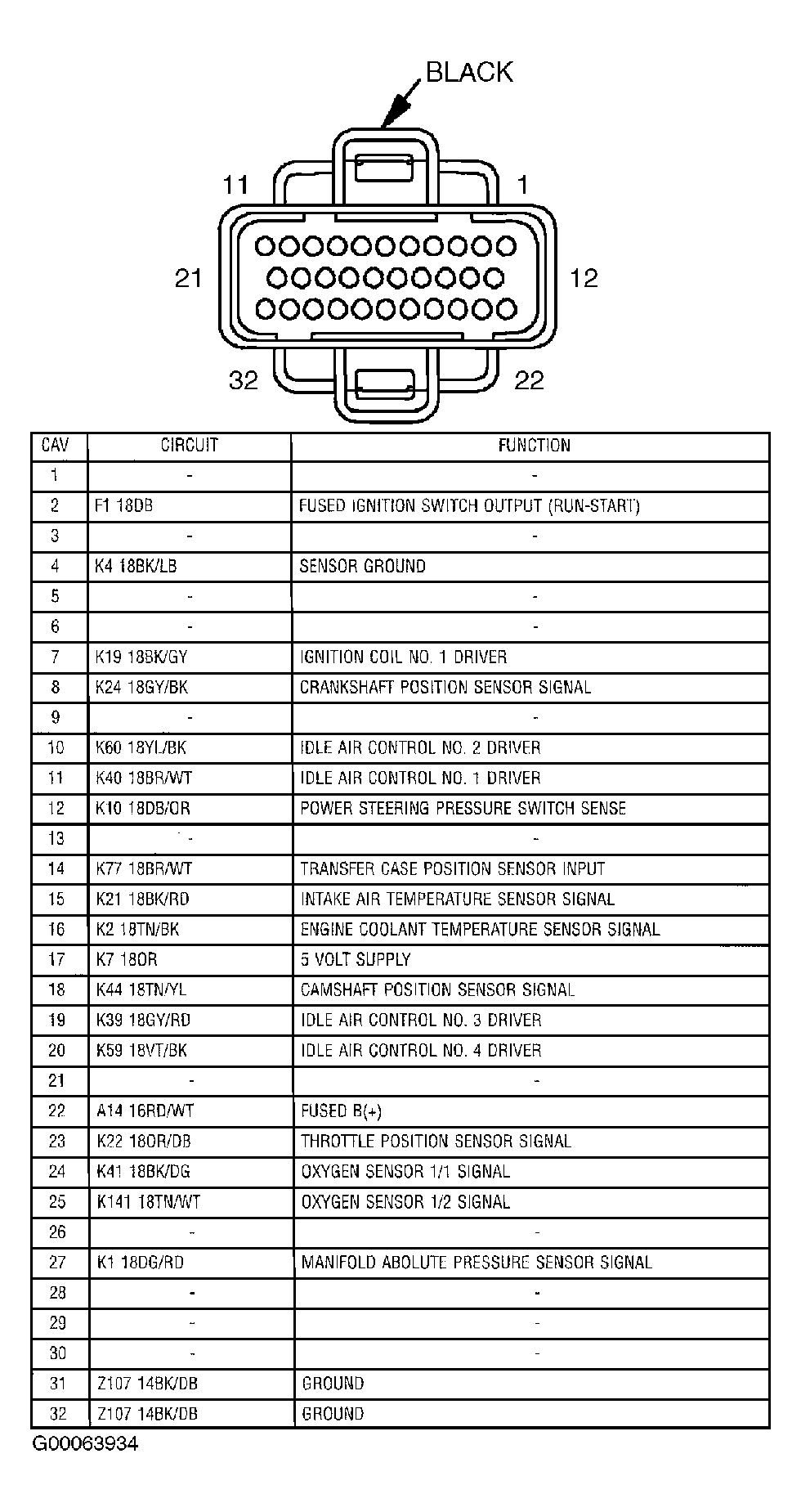

Fig 10: Identifying PCM C1 Harness Connector (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

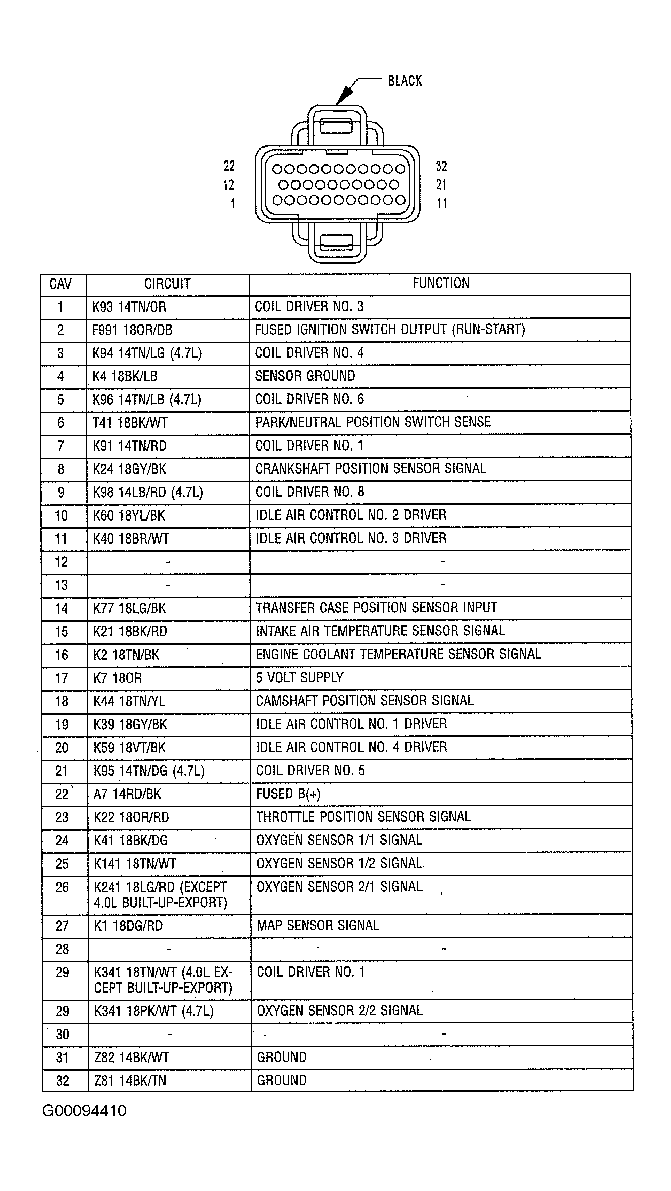

Fig 11: Identifying PCM C1 Harness Connector (Liberty - 2.4L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 12: Identifying PCM C1 Harness Connector (Liberty - 3.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

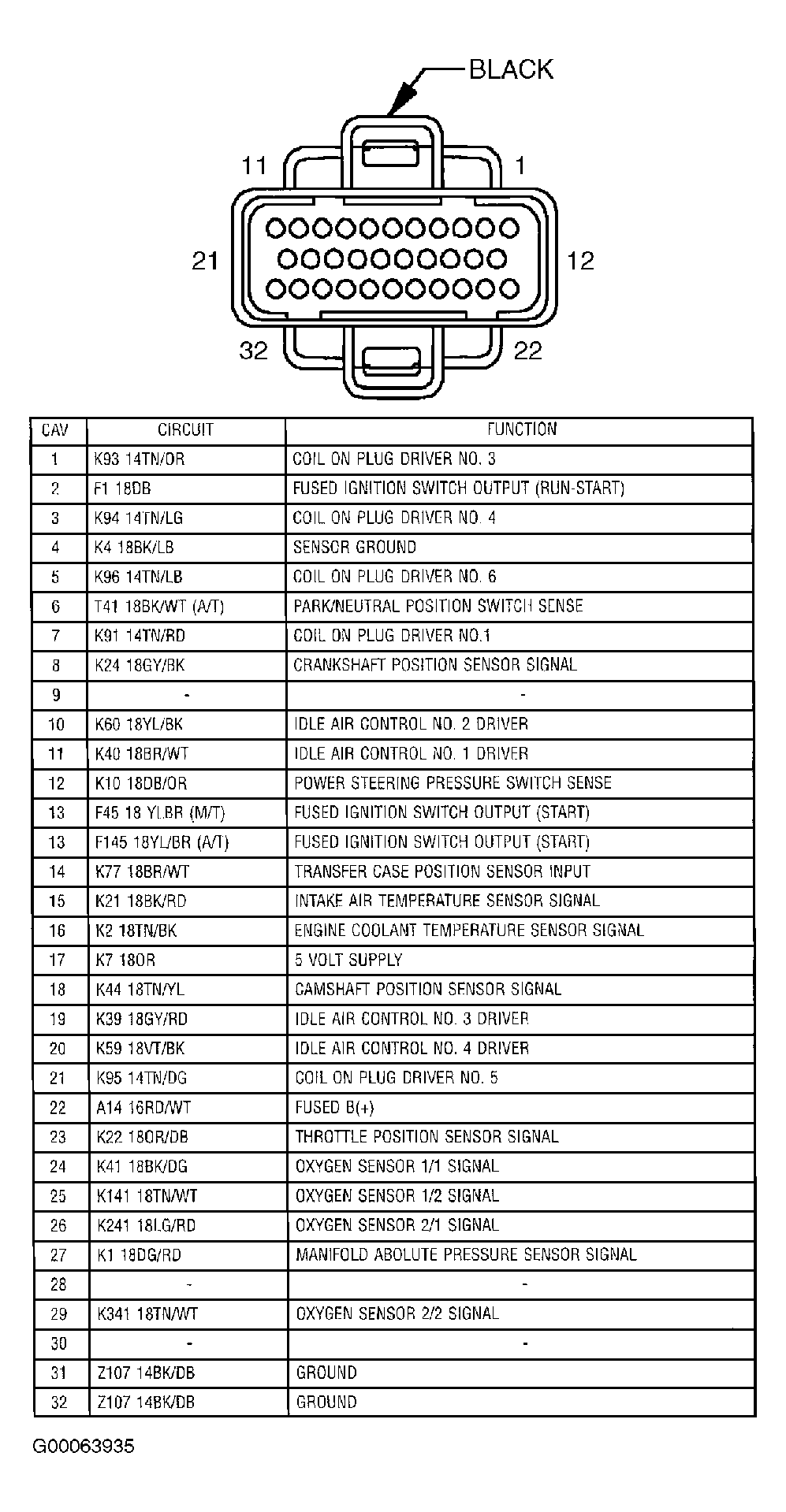

Fig 13: Identifying PCM C1 Harness Connector (Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

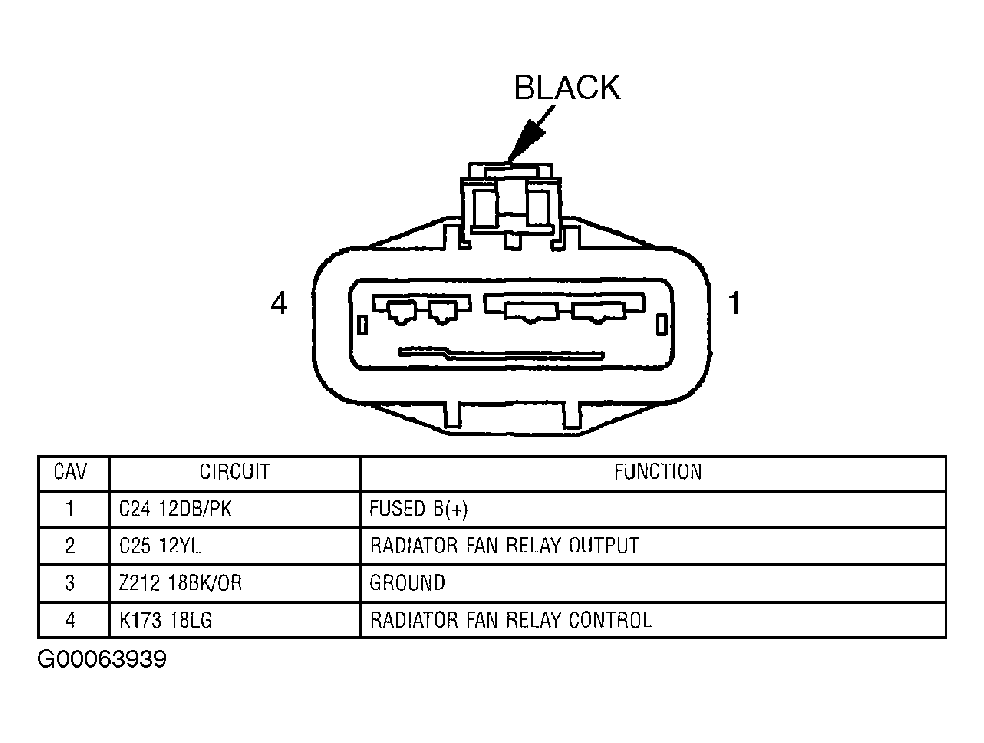

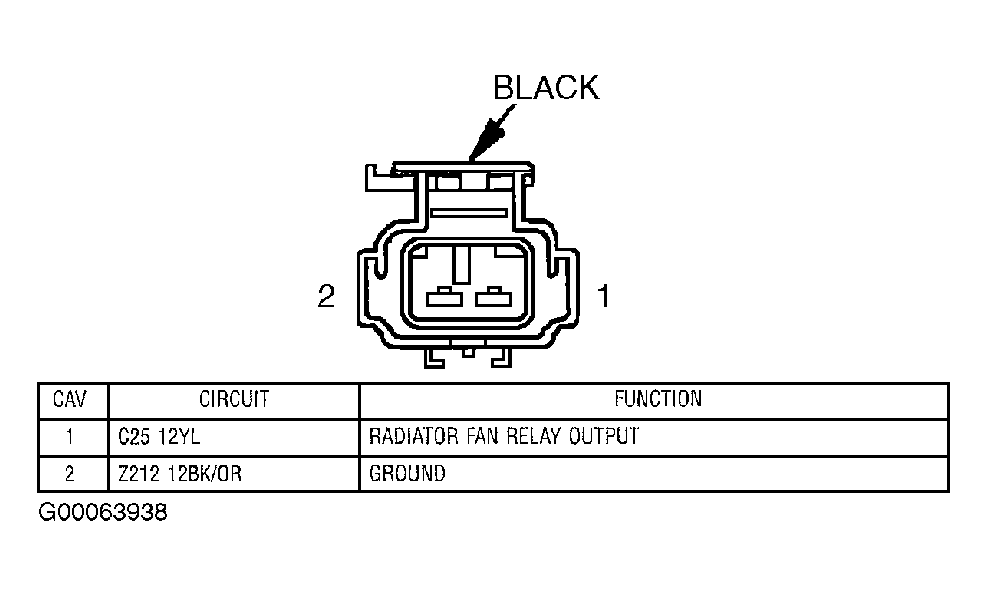

Fig 14: Identifying Radiator Fan Motor Harness Connector (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

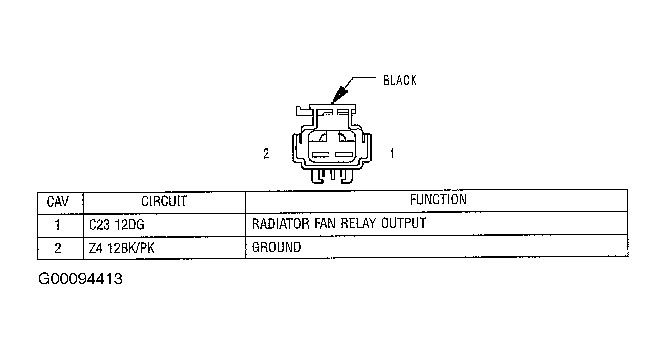

Fig 15: Identifying Radiator Fan Motor Harness Connector (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 16: Identifying Radiator Fan Relay Harness Connector (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

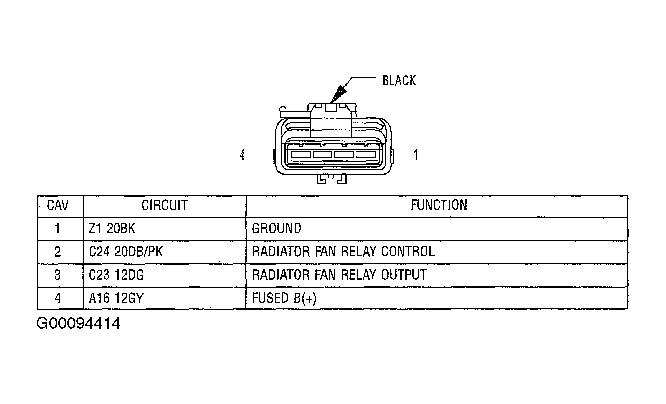

Fig 17: Identifying Radiator Fan Relay Harness Connector (Liberty)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Identifying Relay Terminals - Type 1 Relay

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 19: Identifying Relay Terminals - Type 2 Relay

Courtesy of DAIMLERCHRYSLER CORPORATION
