Fuel Tank/Fuel Pump Module Component Locations (Top View)

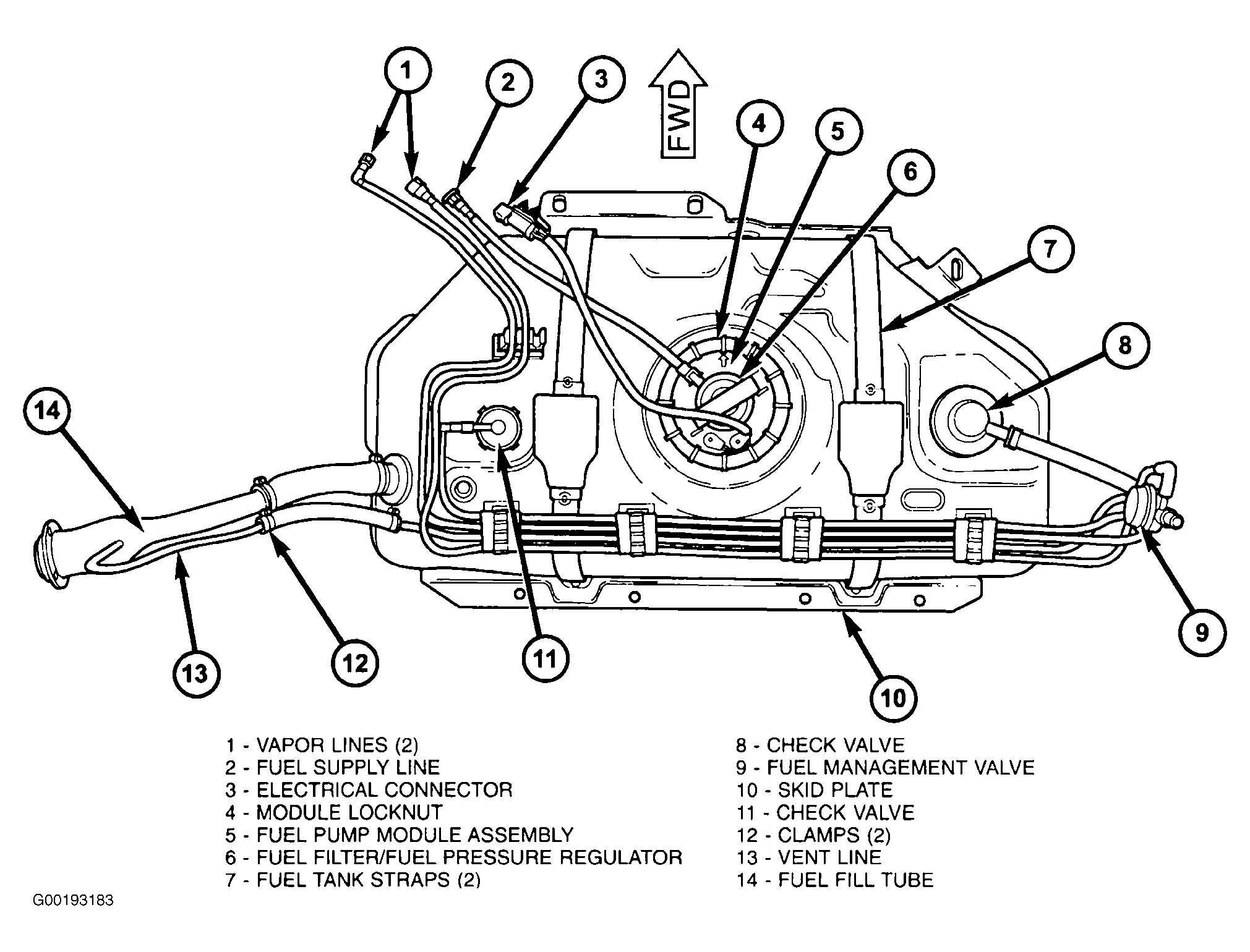

Fig 1: Identifying Fuel Tank/Fuel Pump Module Components (Top View)

G00193183

Courtesy of CHRYSLER CORP.
