Ignition Coil Resistance - 2.4L

Engine	Coil Manufacture	Primary Resistance at 21°C-27°C (70°F-80°F)	Secondary Resistance at 21°C-27°C (70°F-80°F)
2.4L	Toyodenso or Diamond	0.51 to 0.61 Ohms	11,500 to 13,500 Ohms

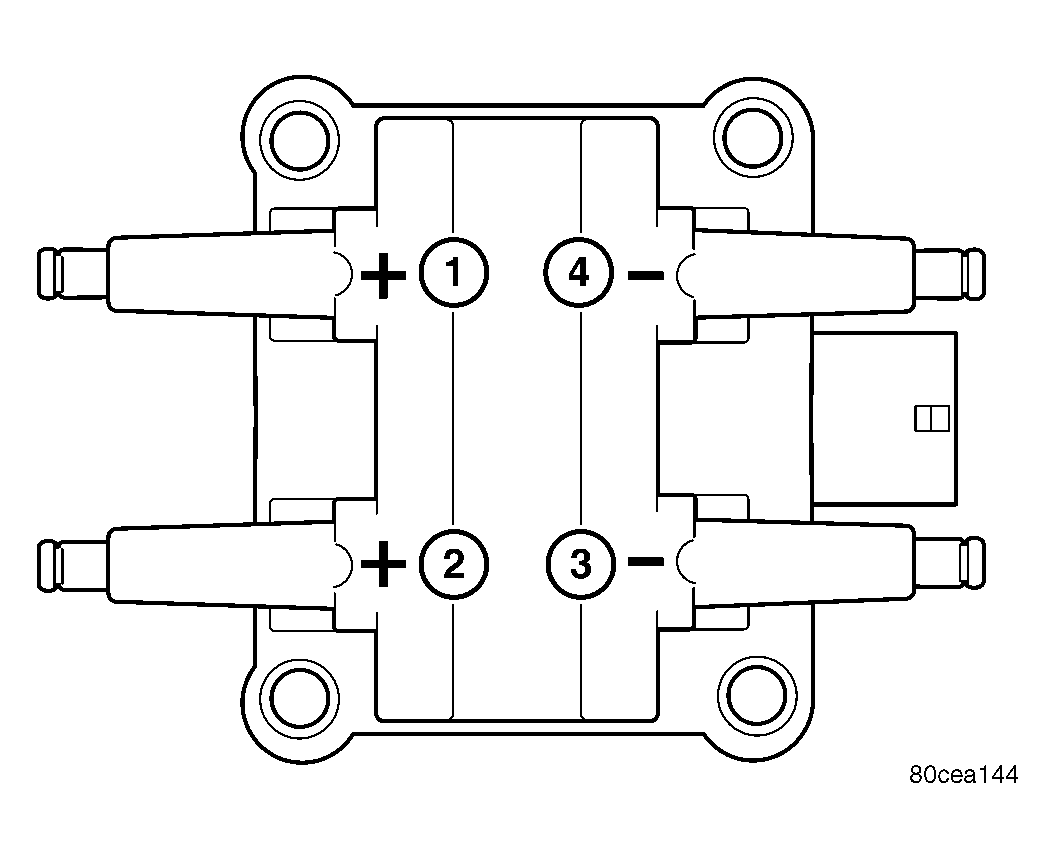

Fig 1: Ignition Coil - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.
