Engine Firing Order - 2.4L

1 - 3 - 4 - 2. Refer to Fig 1.

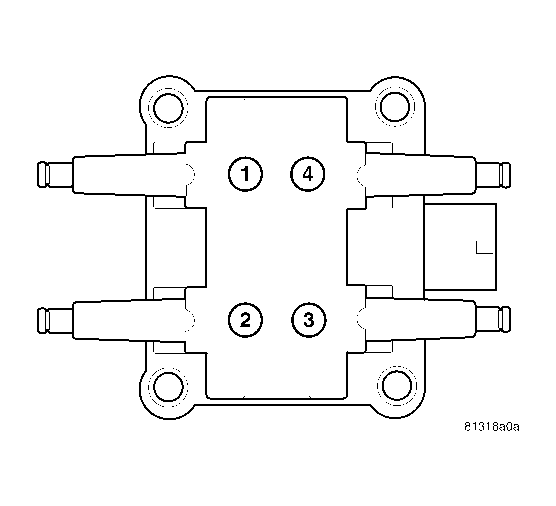

Fig 1: Firing Order - 2.4L

GC0026407

Courtesy of DAIMLERCHRYSLER CORP.
