Steering Column Control Module

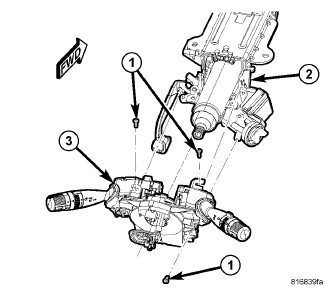

Fig 1: Steering Column Control Module Mounting
GC0082511Courtesy of CHRYSLER GROUP, LLC
  1. Slide the Steering Column Control Module (SCCM) (with switch stalks) (3) onto the steering column (2).
  2. Install the screws (1) attaching the SCCM (with switch stalks) (3) to the steering column (2). Tighten the screws to 3 N.m (27 in. lbs.).
