2.4L Multi Air: Installation

GC0164846Courtesy of CHRYSLER GROUP, LLC

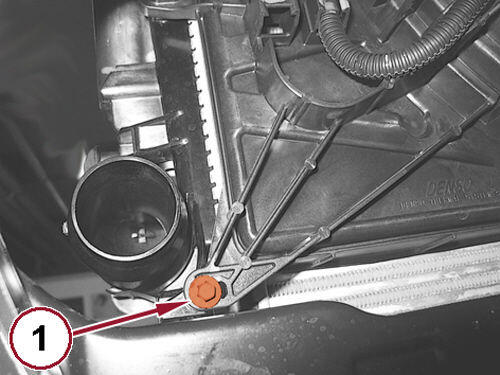

  1. Install the cooling fan and bolts (1). Securely tighten the bolts.

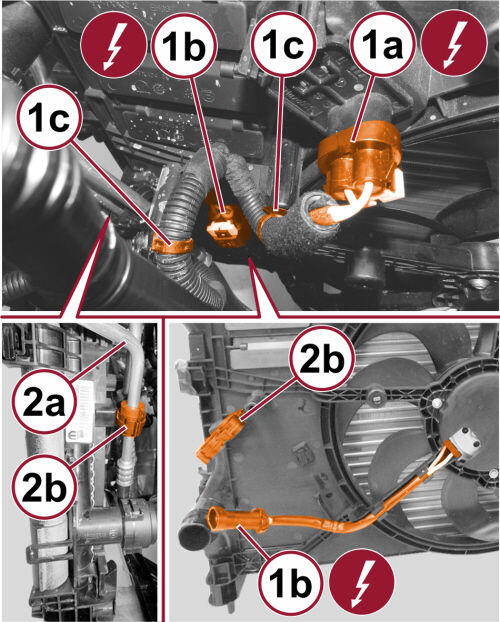

    GC0165167Courtesy of CHRYSLER GROUP, LLC
  2. Attach the cooler lines to the retainer and close the retainer (2b).
  3. Attach the wire harness retainer (1c) from fan shroud.
  4. Connect the cooling fan wire harness connector (1b).
  5. Connect the resistor wire harness connector (1a).

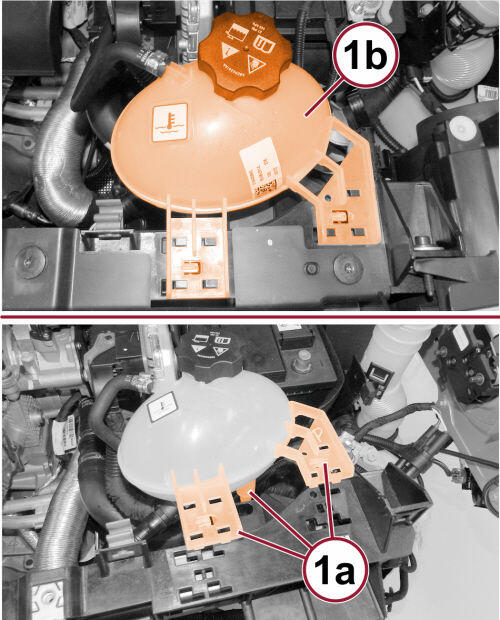

    GC0165116Courtesy of CHRYSLER GROUP, LLC
  6. Install the pressurized coolant bottle (1b) and the fasteners (1a).

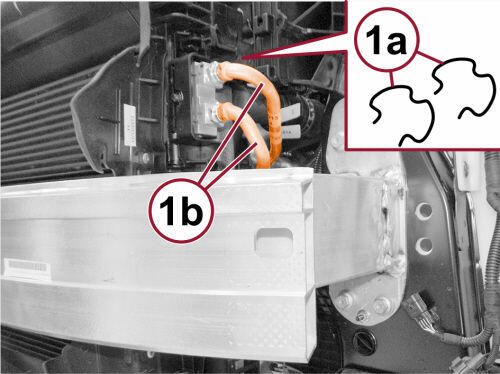

    GC0164459Courtesy of CHRYSLER GROUP, LLC
  7. Remove the plugs from the cooler lines and cooler.
  8. Position the transmission oil cooler line (1b) connector and retaining clips (1a) and snap in place. Make sure lines are securely connected.
  9. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

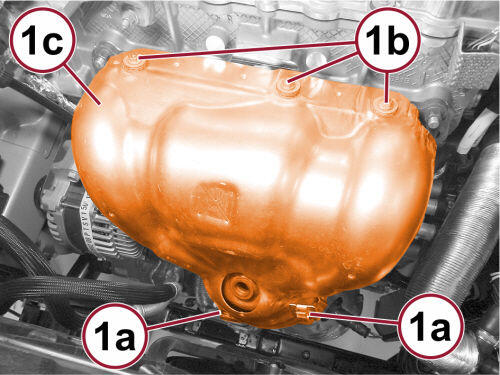

    GC0164856Courtesy of CHRYSLER GROUP, LLC
  10. Install the exhaust heat shield (1c) and securely tighten the nuts (1b) and bolts (1a).
  11. Connect the negative battery cable.
