Torque Specifications

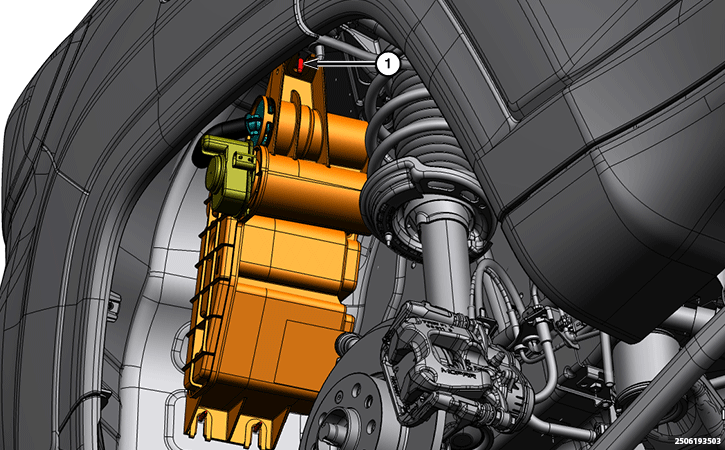

Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS
CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Evaporative Canister to Vehicle - Nuts
9 Nm (80 In. Lbs.)
-
-
PCV Valve
1/4 Turn
-
Courtesy of CHRYSLER GROUP, LLC

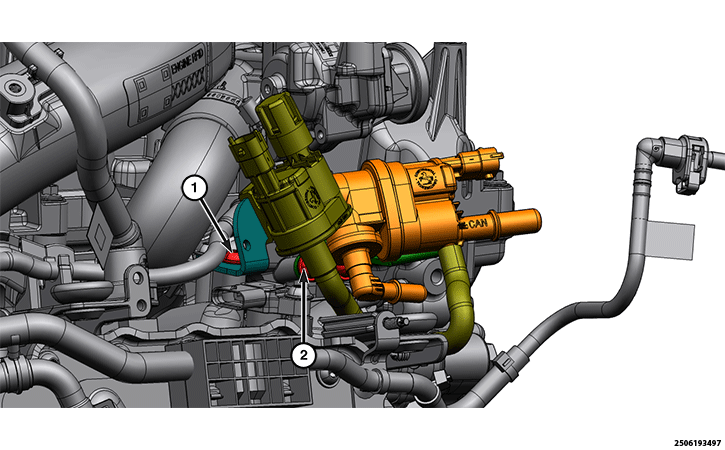

CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
OBD Valve Bracket Bolts
Tighten Securely
-
2
Purge Valve Bracket Bolts
Tighten Securely
-
Courtesy of CHRYSLER GROUP, LLC
