Drive Belts: Inspection
- Check drive belt and pulley for wear, cracks, and fraying. Replace if necessary.

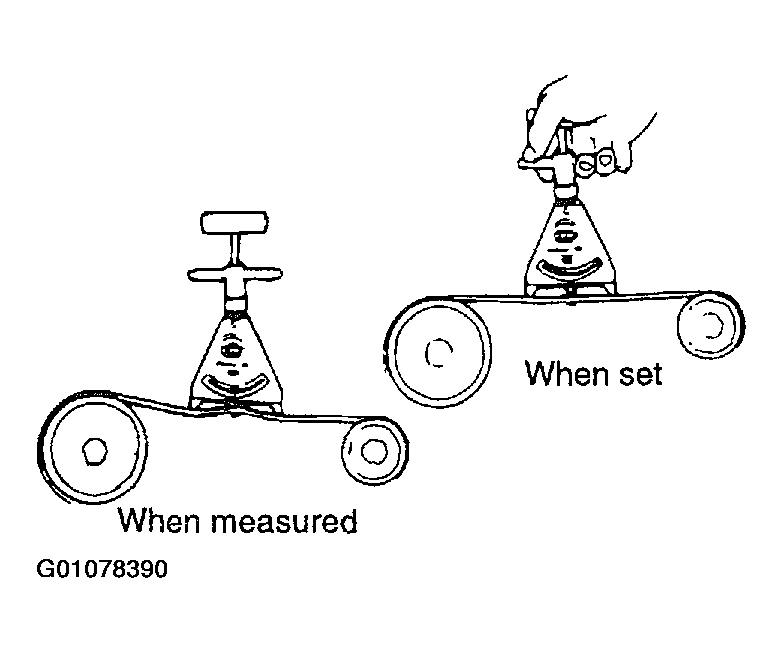

- Measure drive belt tension with a tension gauge.
DRIVE BELT TENSION
| Drive belt |
New |
Used |
| Generator |
0.31-0.35(8-9) |
0.35-0.39 (9-10) |
| A/C and P/S |
0.31-0.35 (8-9) |
0.35-0.39 (9-10) |
Courtesy of KIA MOTORS AMERICA, INC.
