Home >> Kia >> 2003 >> Spectra Base, Automatic >> Repair and Diagnosis >> Electrical >> Horns >> Components >> Horn >> Removal

Repair and Diagnosis: Electrical: Horns: Components: Horn: Removal

  1. Disconnect negative battery cable.
  2. Disconnect horn wire.
  3. Remove one bolt and remove horn.

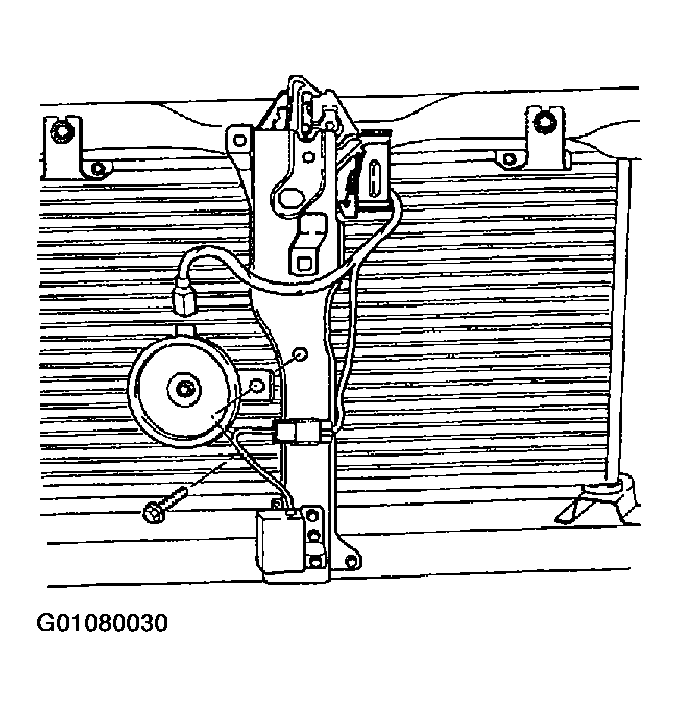

    Fig 1: Removing Horn
    G01080030Courtesy of KIA MOTORS AMERICA, INC.
