Removal & Installation: Starter: Installation

1. Place starter in engine.

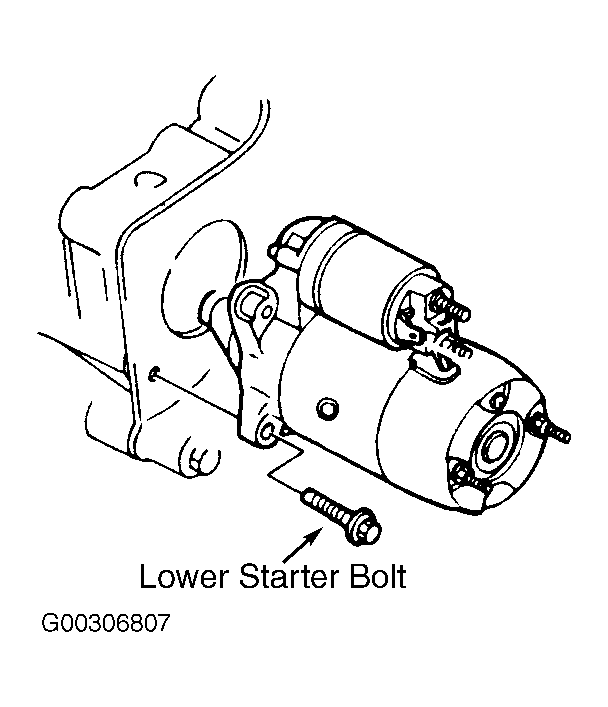

2. Insert lower starter bolt and tighten to specification. See TORQUE SPECIFICATIONS  . See Figure .
3. Connect "B" terminal connector and tighten to specification. See TORQUE SPECIFICATIONS  .
4. Connect "S" terminal connector. See Fig 1 .
5. Position intake manifold support bracket.
6. Insert three intake manifold support bracket bolts and tighten lower intake manifold support bracket bolt to specification. See TORQUE SPECIFICATIONS  .
7. Position exhaust pipe and tighten bolts to specification. See TORQUE SPECIFICATIONS  . See Figure .
8. Lower vehicle.
9. Tighten two upper intake manifold support bracket bolts to specification. See TORQUE SPECIFICATIONS  .
10. Install two starter bolts and tighten to specification. See TORQUE SPECIFICATIONS  . See Figure .
11. Connect negative battery terminal.

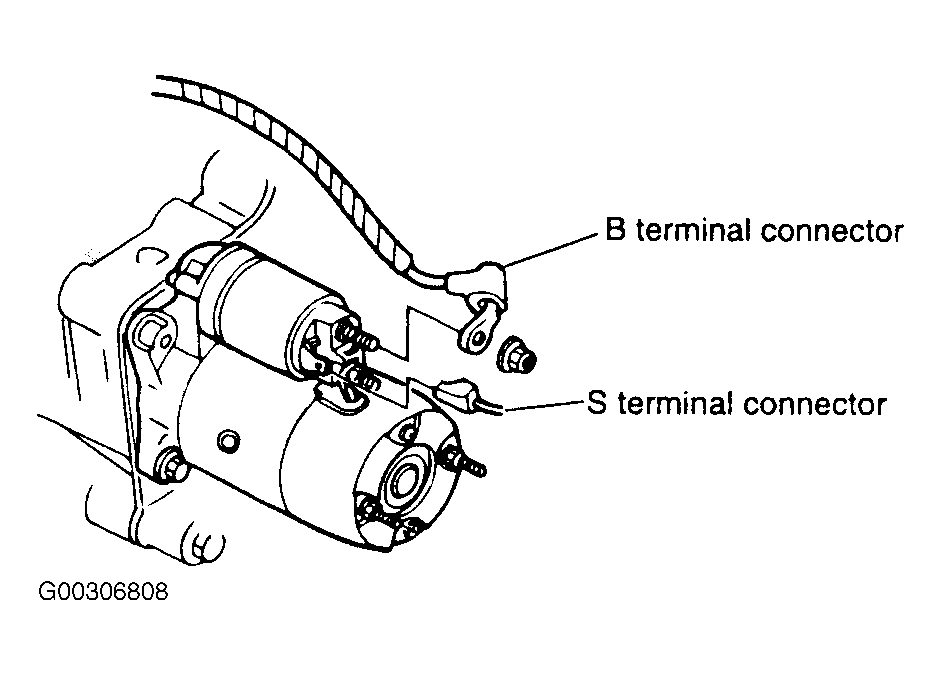

Fig 1: Connecting Terminal Connector

Courtesy of KIA MOTORS AMERICA, INC.

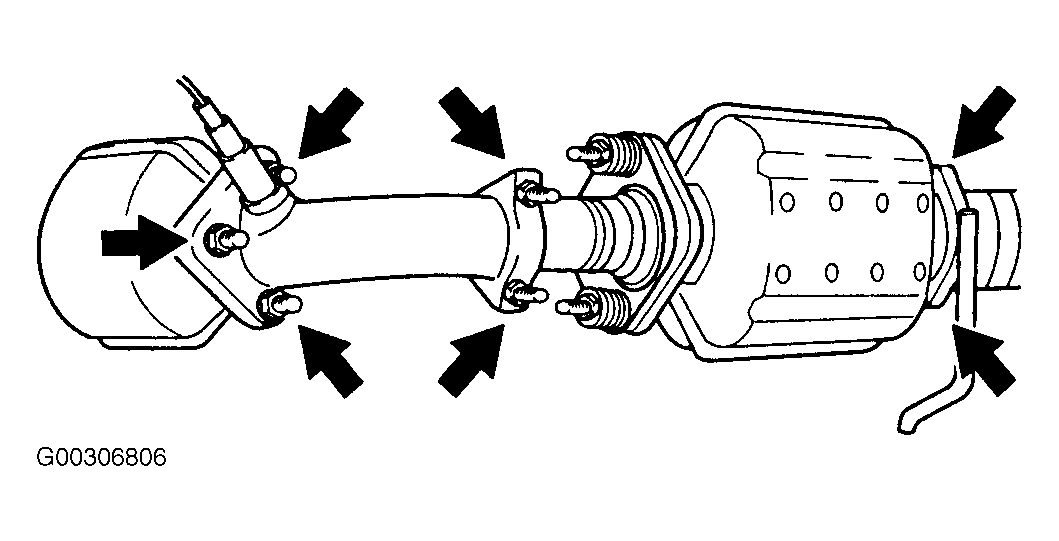

Fig 2: Identifying Exhaust Pipe Bolts

Courtesy of KIA MOTORS AMERICA, INC.
