Spark Plugs: Removal

CAUTION: Do not  attempt any maintenance on spark plugs if engine is hot.
  1. Disconnect negative battery terminal.
  2. Carefully remove high-tension leads.
  3. Use compressed air to blow any dirt or debris from around spark plug hole.
  4. Check that spark plug fits squarely in spark plug socket and remove spark plug.

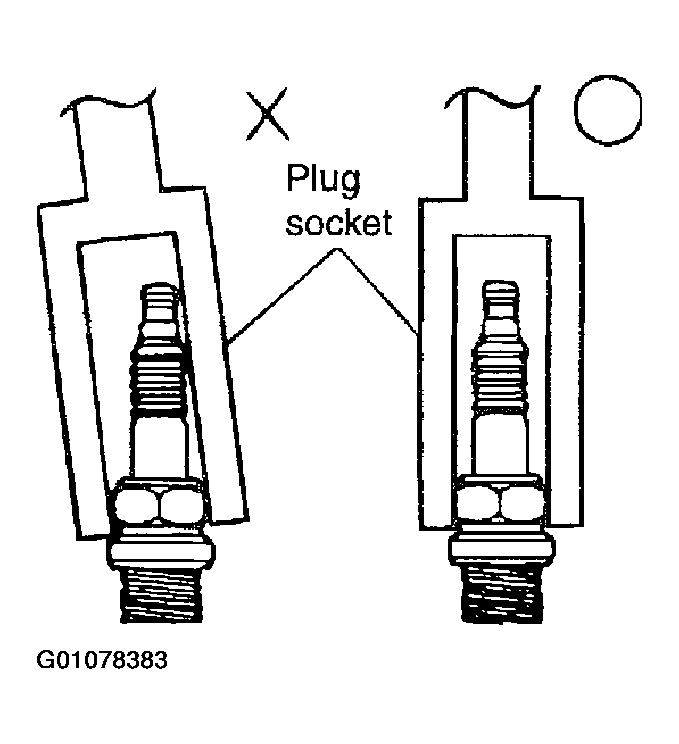

    Fig 1: Illustrating Proper Spark Plug Installation
    G01078383Courtesy of KIA MOTORS AMERICA, INC.
