System Components Identification

For fuel evaporation system components identification and location. See Fig 1.

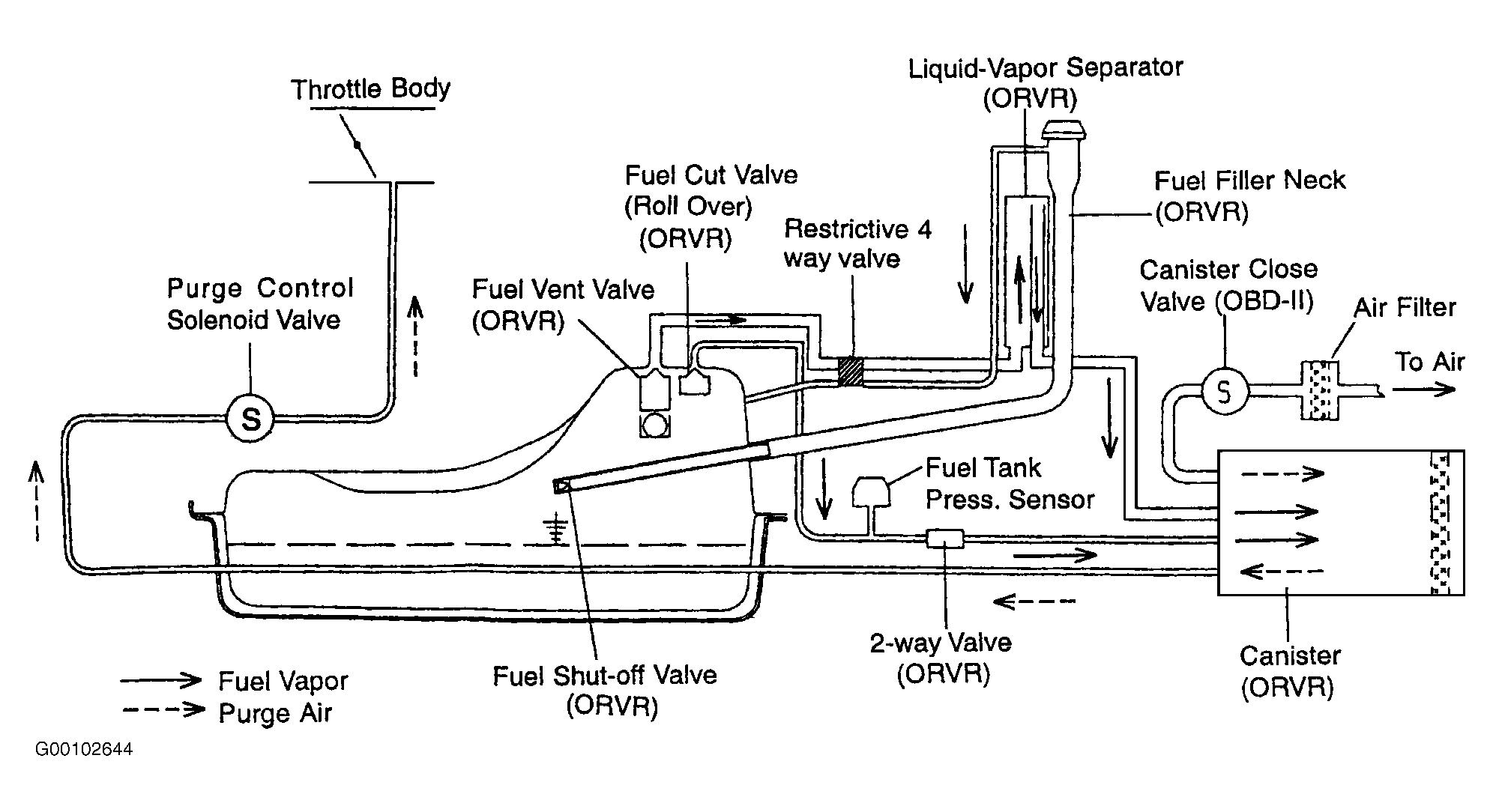

Fig 1: Identifying Fuel Evaporative System Components

G00102644

Courtesy of KIA MOTORS AMERICA, INC.
