Injector Resistance

Disconnect injector harness.
Measure resistance of each injector.
Resistance:

14.5ohm at 68°F (20°C):
If not within specification, replace injector. Refer to REMOVAL .

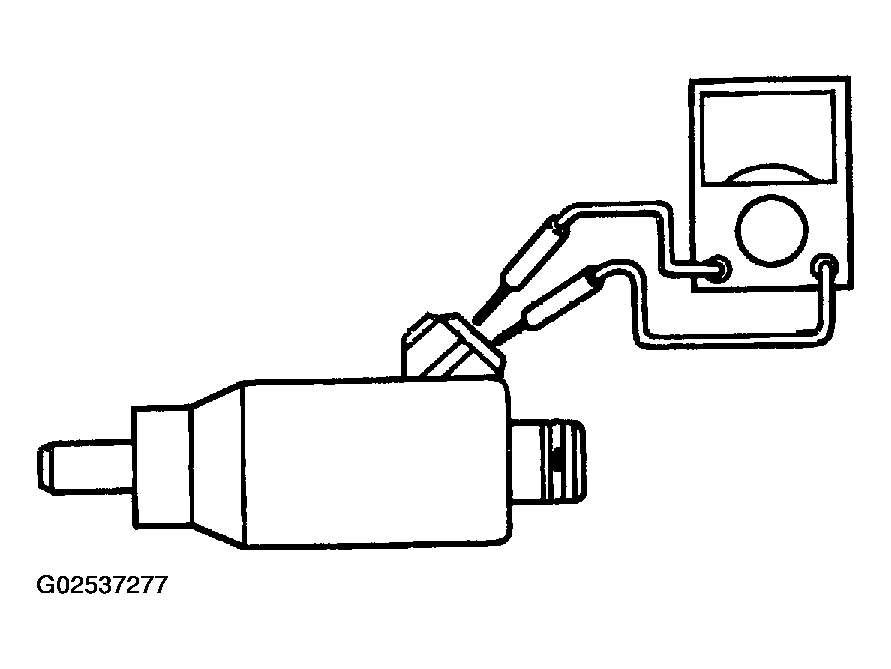

Fig 1: Measuring Injector Resistance
Courtesy of KIA MOTORS AMERICA, INC.
