Brush Holder

  1. Check for continuity between the brush holder plate and brush holder. See Fig 1
  2. The normal condition is no continuity.

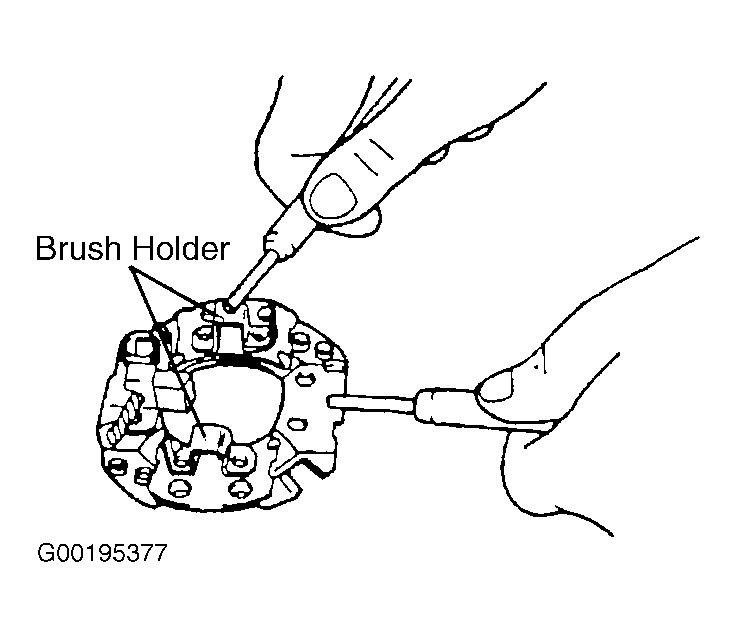

Fig 1: Checking Brush Holder & Plate Continuity
G00195377Courtesy of KIA MOTORS AMERICA, INC.
