Magnetic Switch Hold-In Test
CAUTION:
To prevent coil from burning, DO NOT apply voltage to starter assembly for more than 10 seconds.
- Disconnect the field coil wire from the "M" terminal of the magnetic switch.

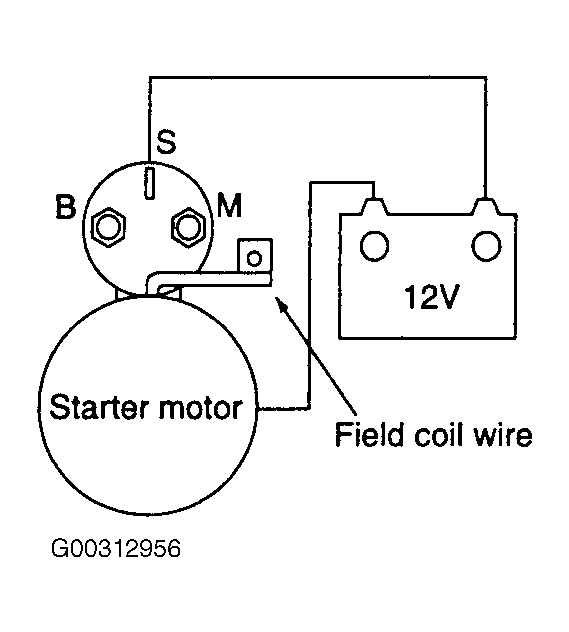

- Connect a 12V battery between "S" terminal and the body. See Fig 1 .
- If the pinion moves out, everything is in order. If the pinion moves back and forth repeatedly, the hold-in circuit is open. Then replace the magnetic switch.
