Emission Control Location

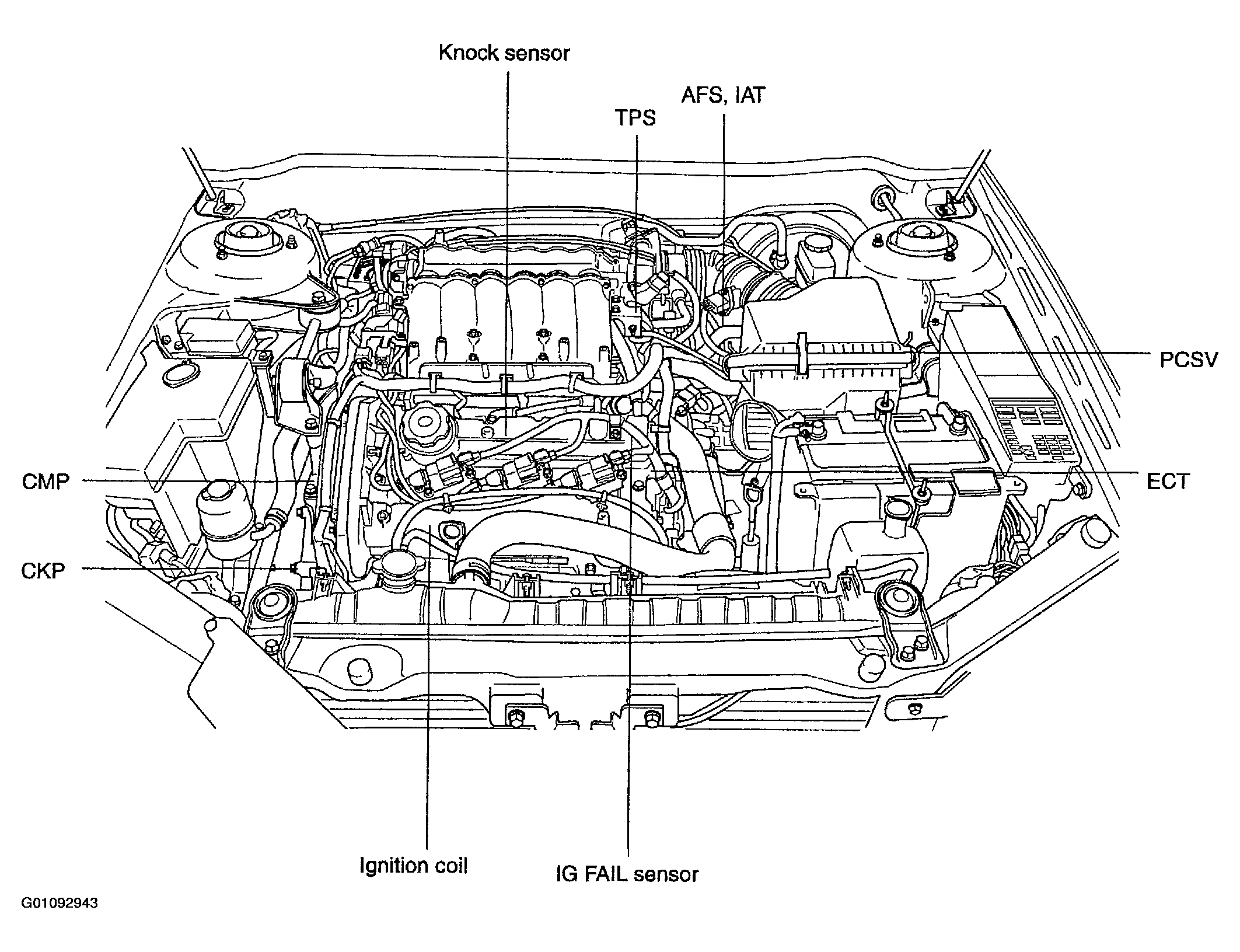

Fig 1: Locating Emission Control Systems
G01092943Courtesy of KIA MOTORS AMERICA, INC.

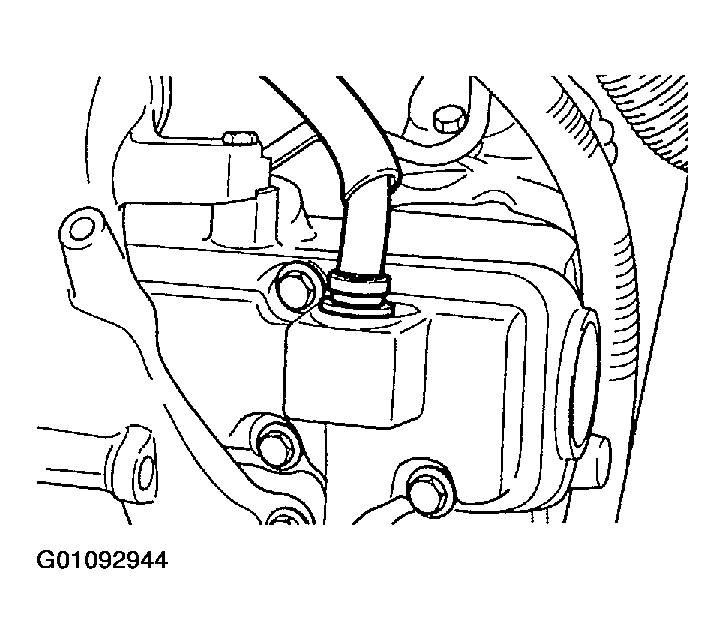

Fig 2: Locating PCV Valve
G01092944Courtesy of KIA MOTORS AMERICA, INC.

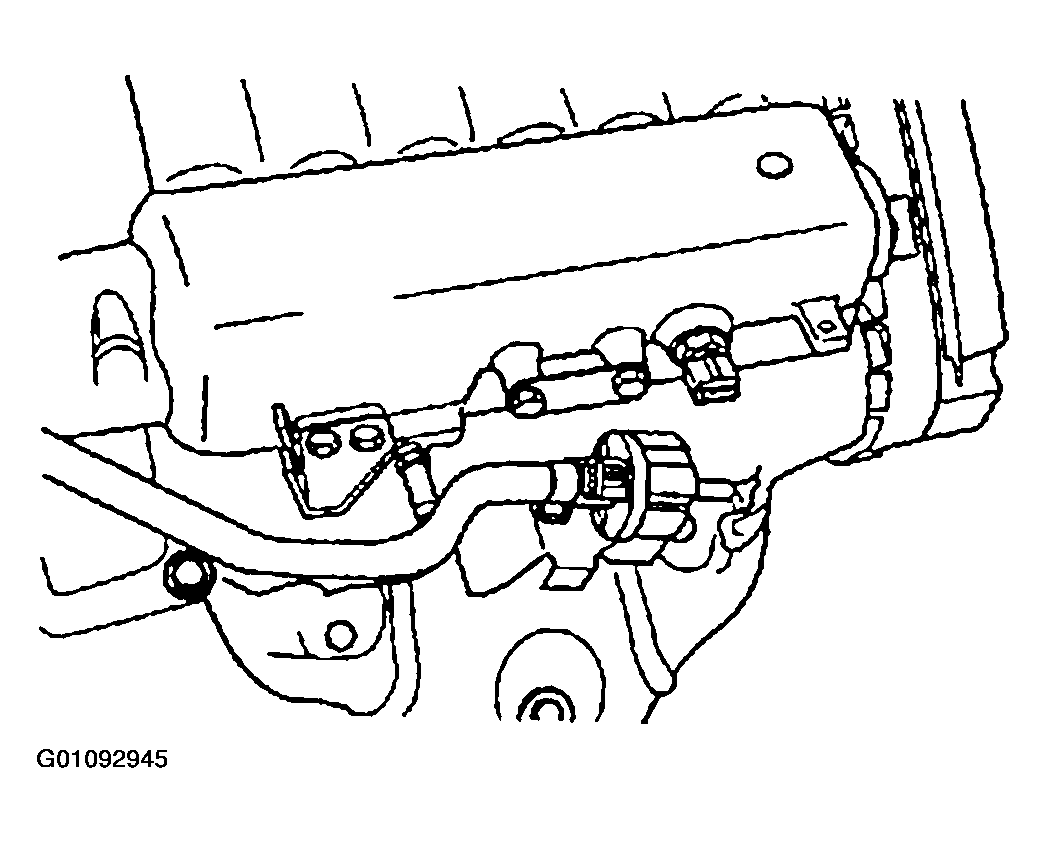

Fig 3: Locating Canister Purge Solenoid Valve
G01092945Courtesy of KIA MOTORS AMERICA, INC.

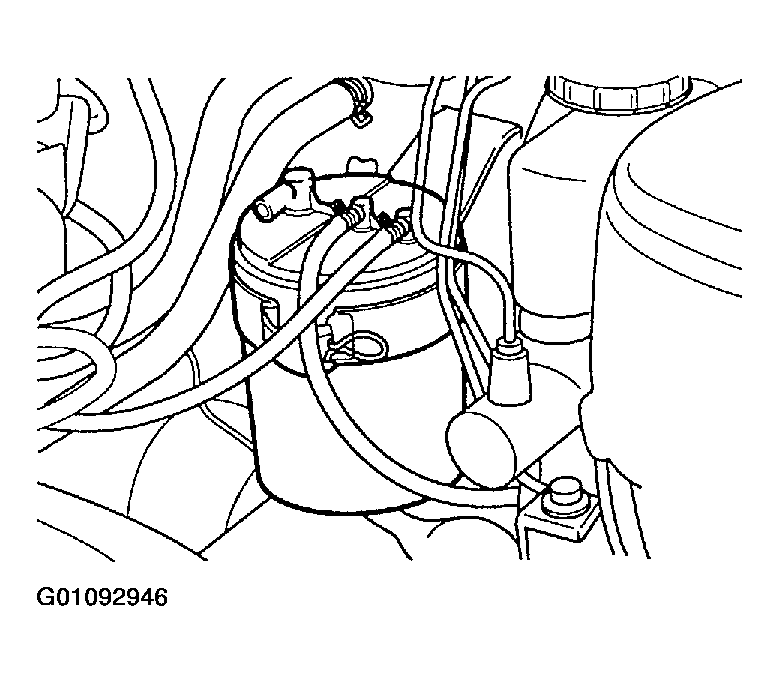

Fig 4: Locating EVAP Canister
G01092946Courtesy of KIA MOTORS AMERICA, INC.

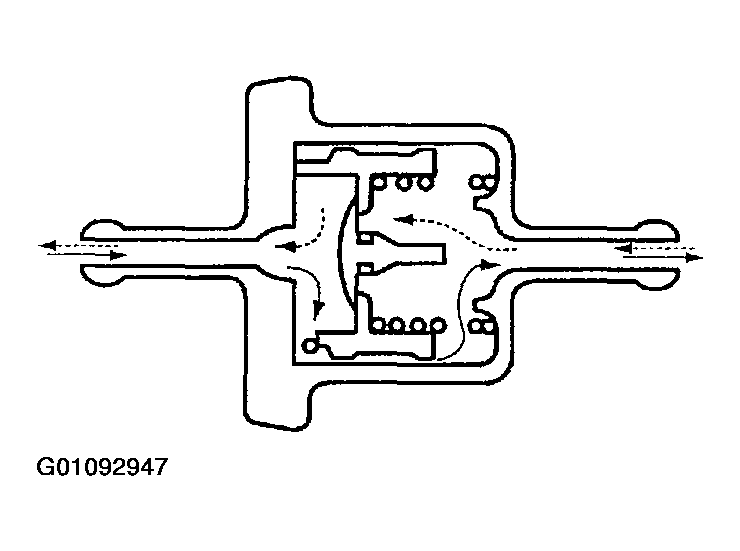

Fig 5: Locating Two-way Valve
G01092947Courtesy of KIA MOTORS AMERICA, INC.
