On-Vehicle Service: Inspection

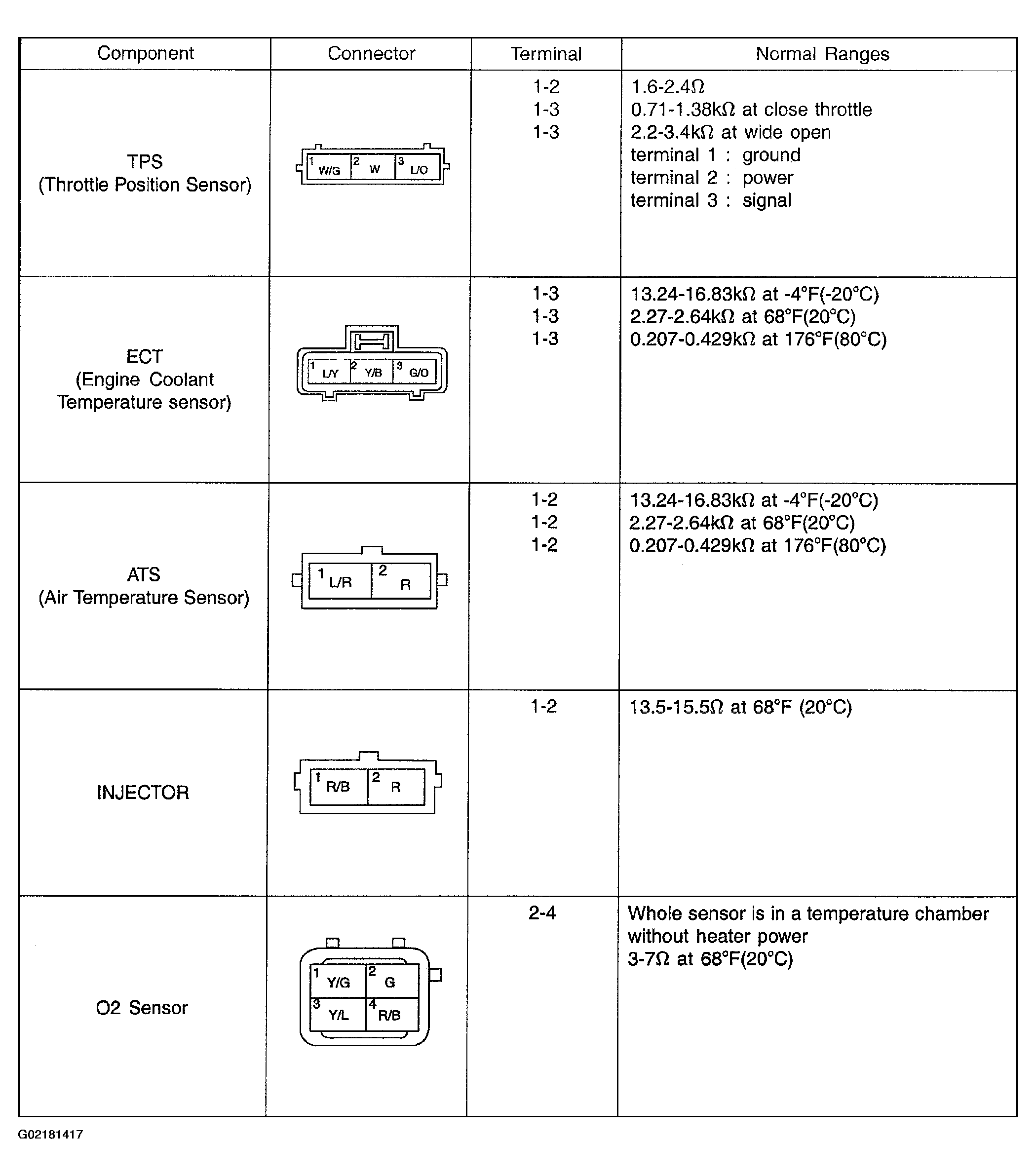

Fig 1: Connector Terminal & Resistance Chart (1 Of 2)
G02181417Courtesy of KIA MOTORS AMERICA, INC.

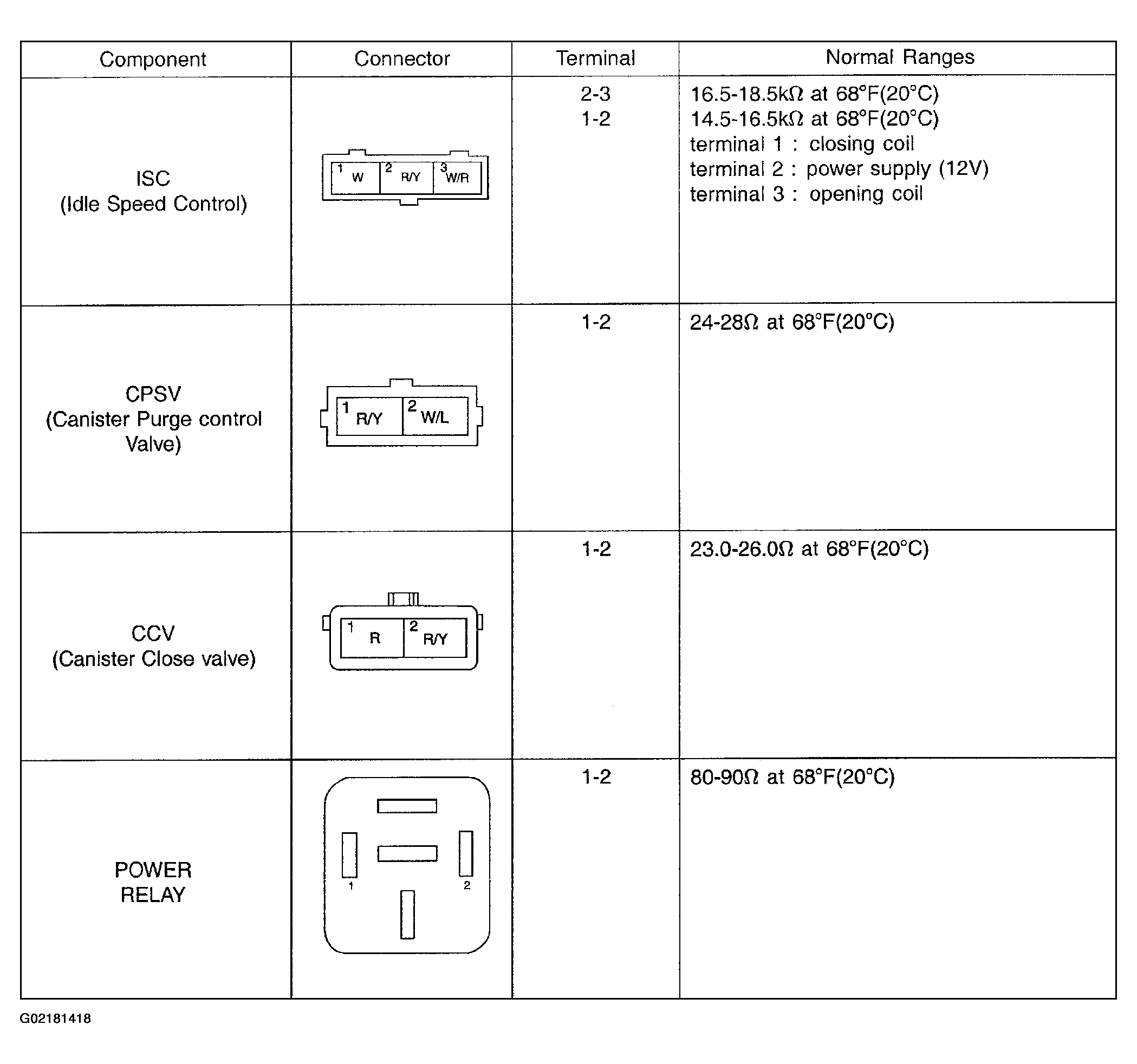

Fig 2: Connector Terminal & Resistance Chart (2 Of 2)
G02181418Courtesy of KIA MOTORS AMERICA, INC.
