Home >> Kia >> 2005 >> Rio Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System/Fuel System >> Troubleshooting >> Symptom Diagnosis Charts >> Surging While Cruising

Surging While Cruising

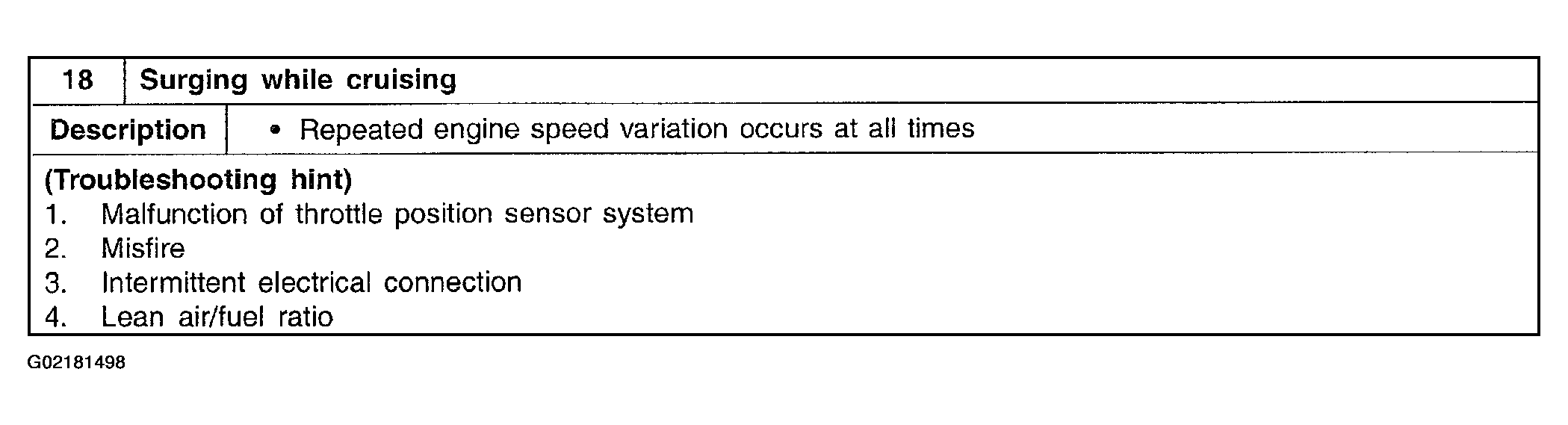

Fig 1: Description
G02181498Courtesy of KIA MOTORS AMERICA, INC.

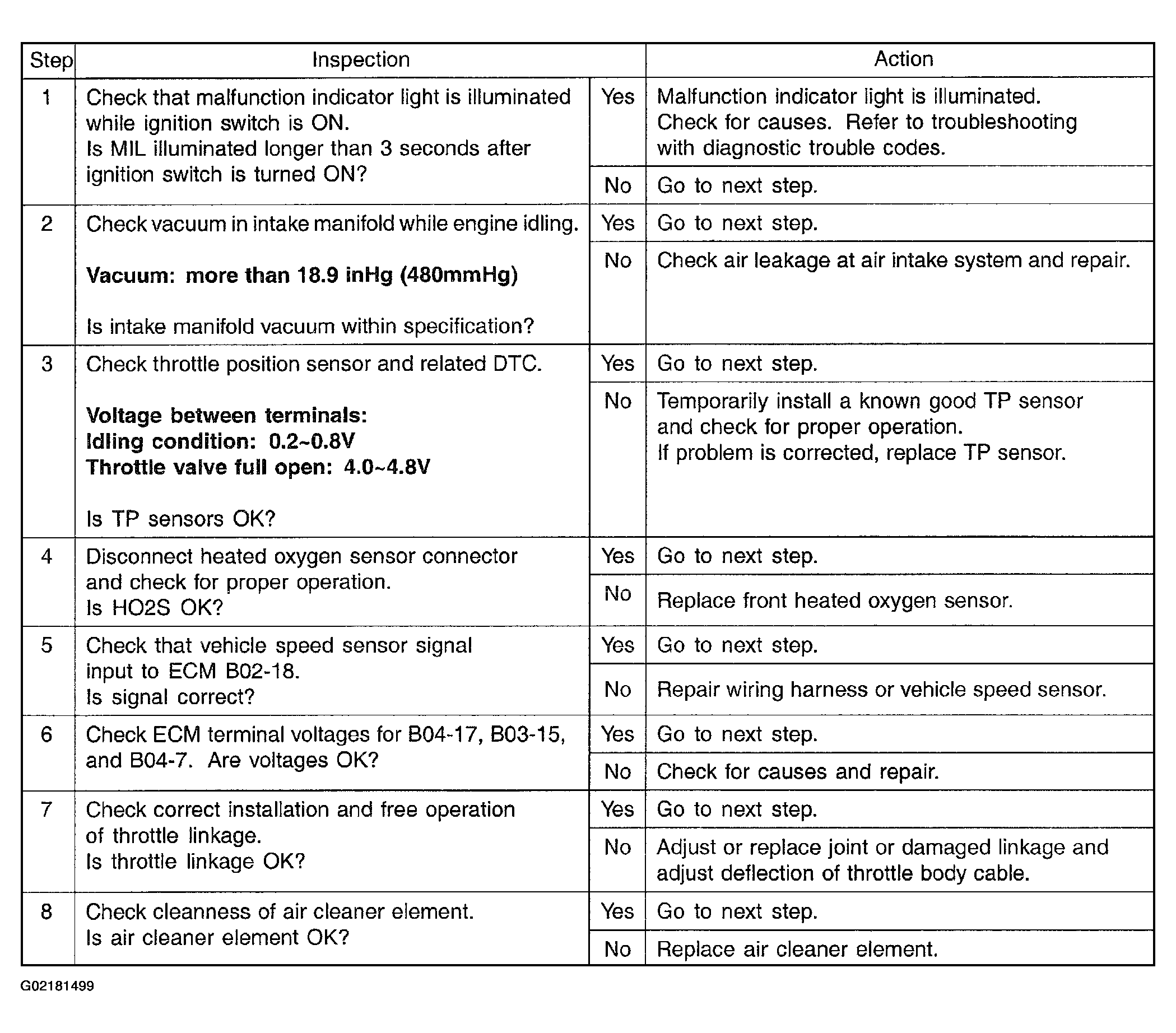

Fig 2: Inspection/Action Chart (1 Of 2)
G02181499Courtesy of KIA MOTORS AMERICA, INC.

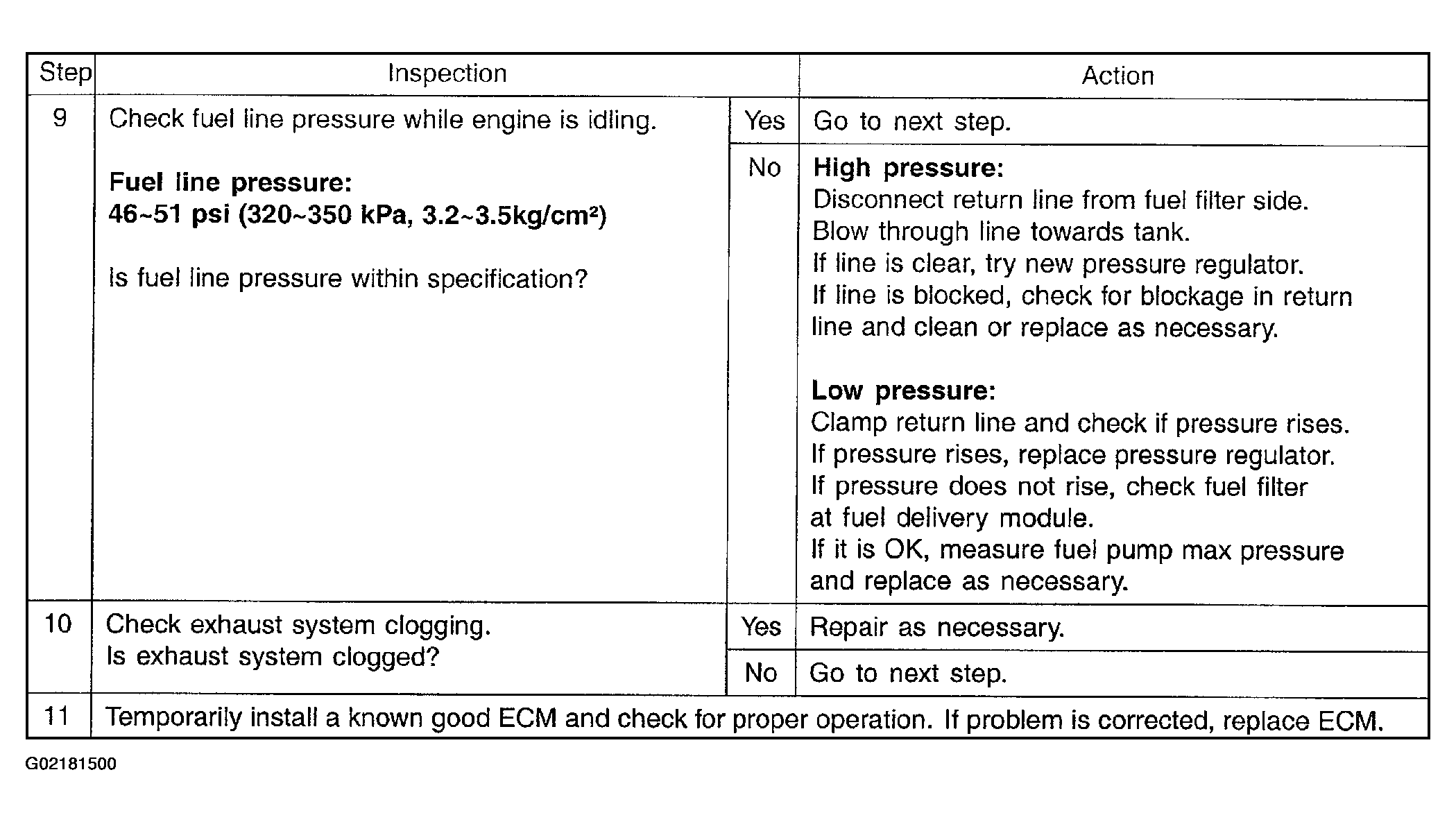

Fig 3: Inspection/Action Chart (2 Of 2)
G02181500Courtesy of KIA MOTORS AMERICA, INC.
