Quick Connector Inspection

Once installed, pull and push quick connector to direction "A" and "B" to make sure the connection is secure.

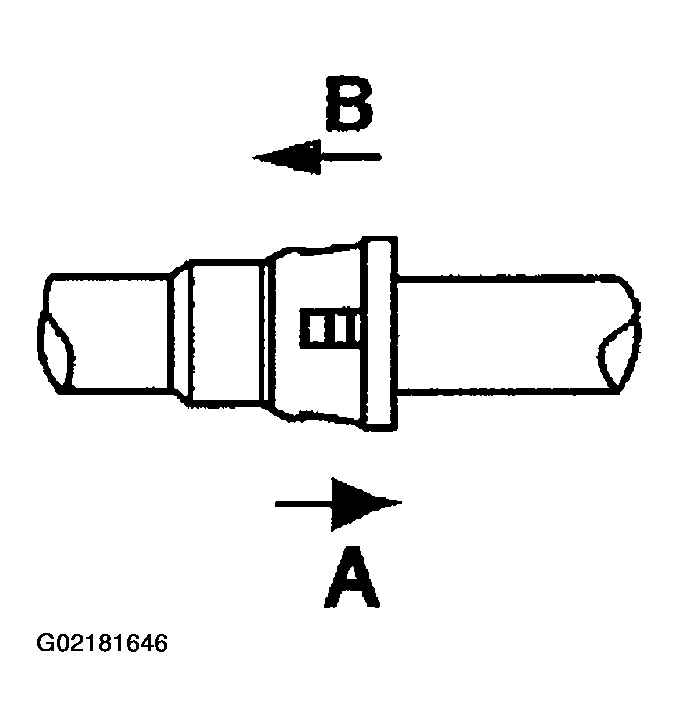

Fig 1: Confirming Connection
G02181646Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Don't press lock retainer.
