Quick Connector Removal

NOTE: Release fuel system pressure before servicing any fuel system connection.
  1. Push quick connector to direction "A".
  2. Squeeze both sides of lock retainer and pull connection apart to direction "B".

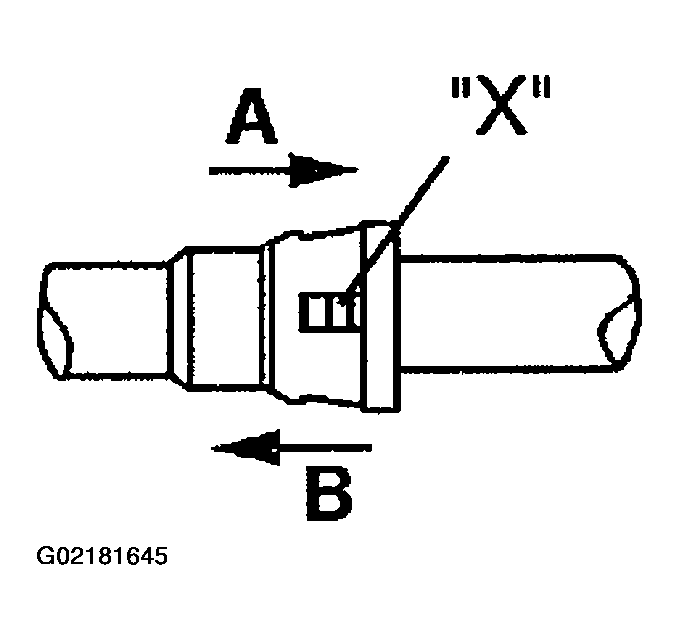

    Fig 1: Disconnecting Fuel Line Connector
    G02181645Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Do not push and pull too hard.
