Engine Control System
Engine Control System

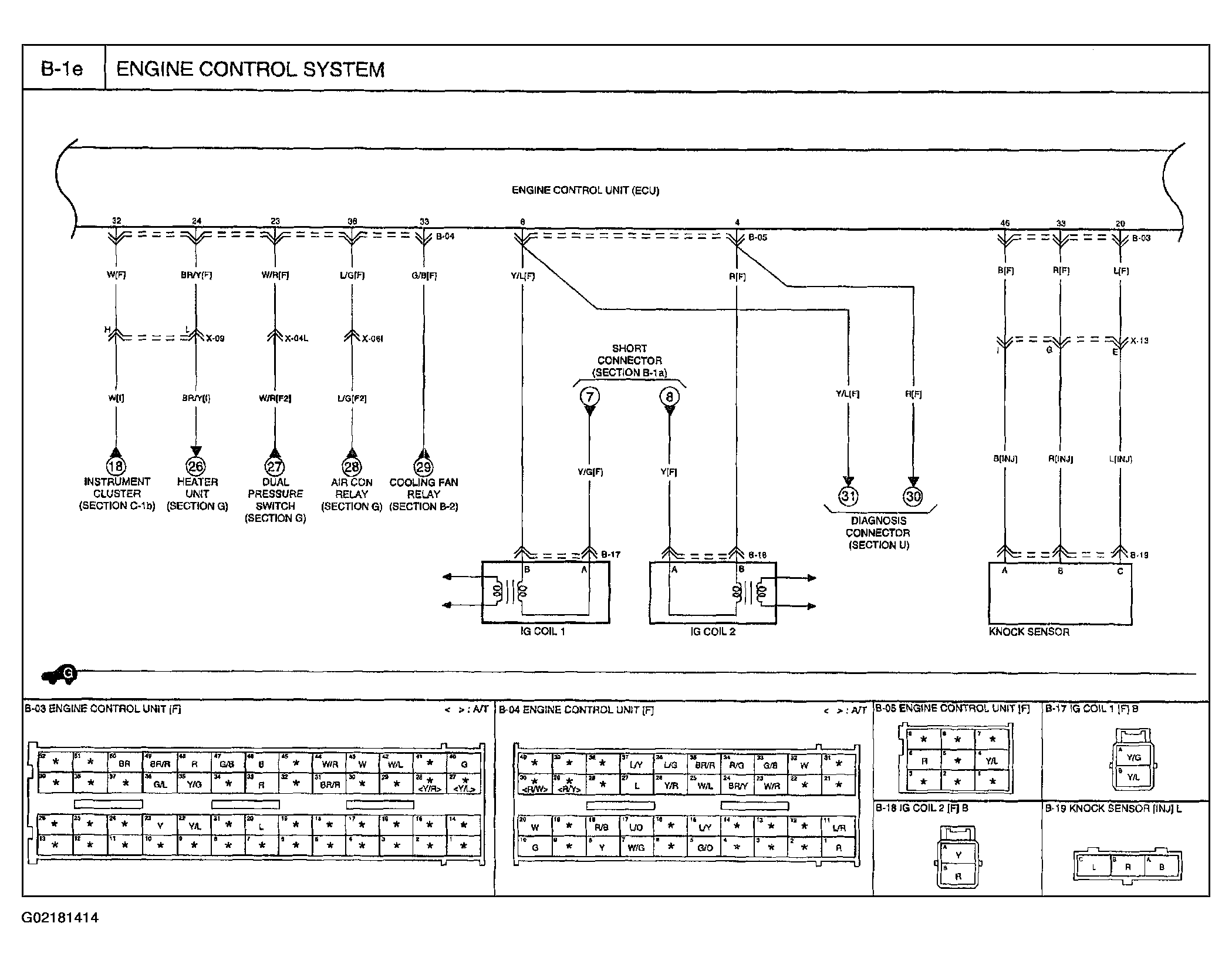

Fig 1: Engine Control System (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

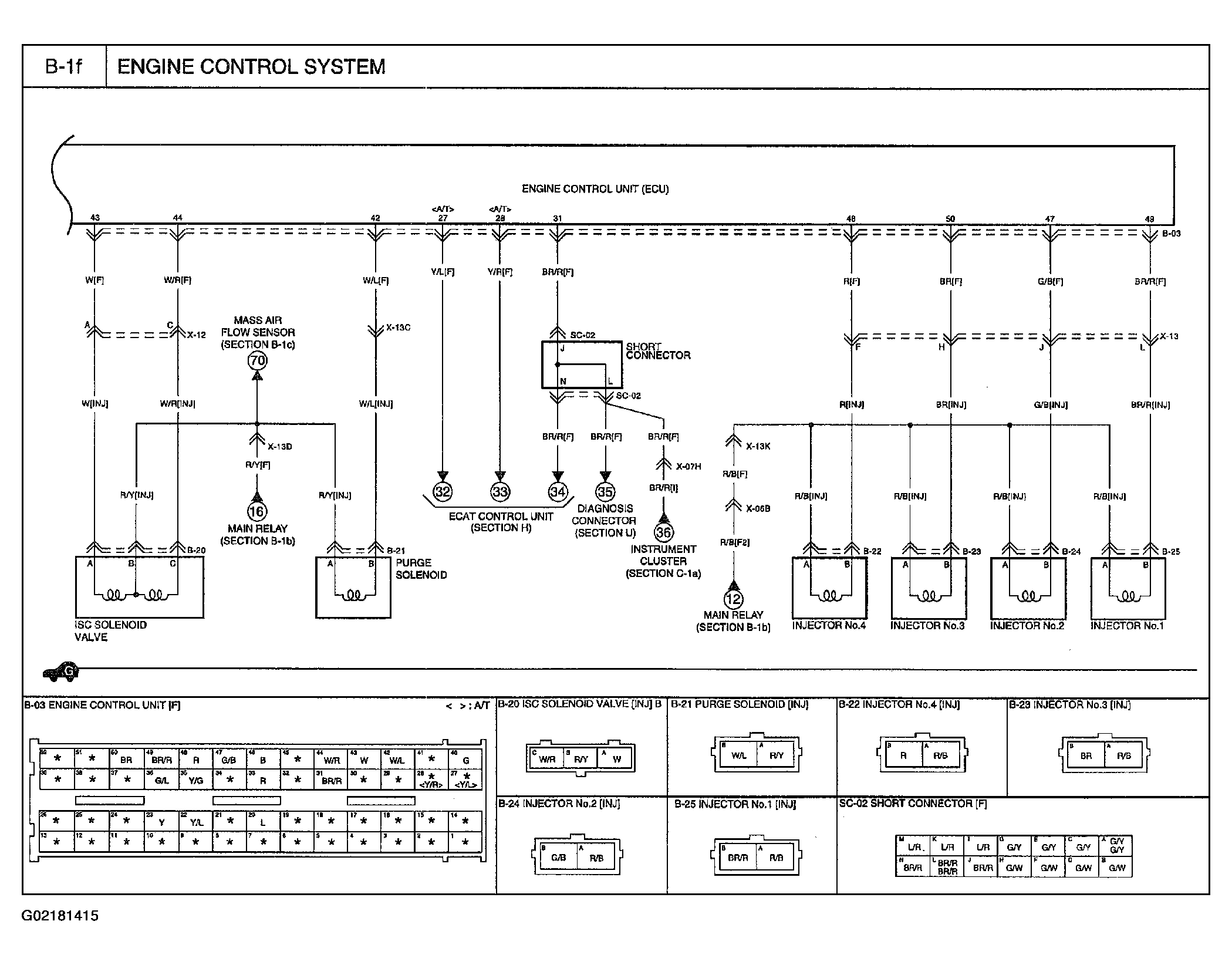

Fig 2: Engine Control System (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

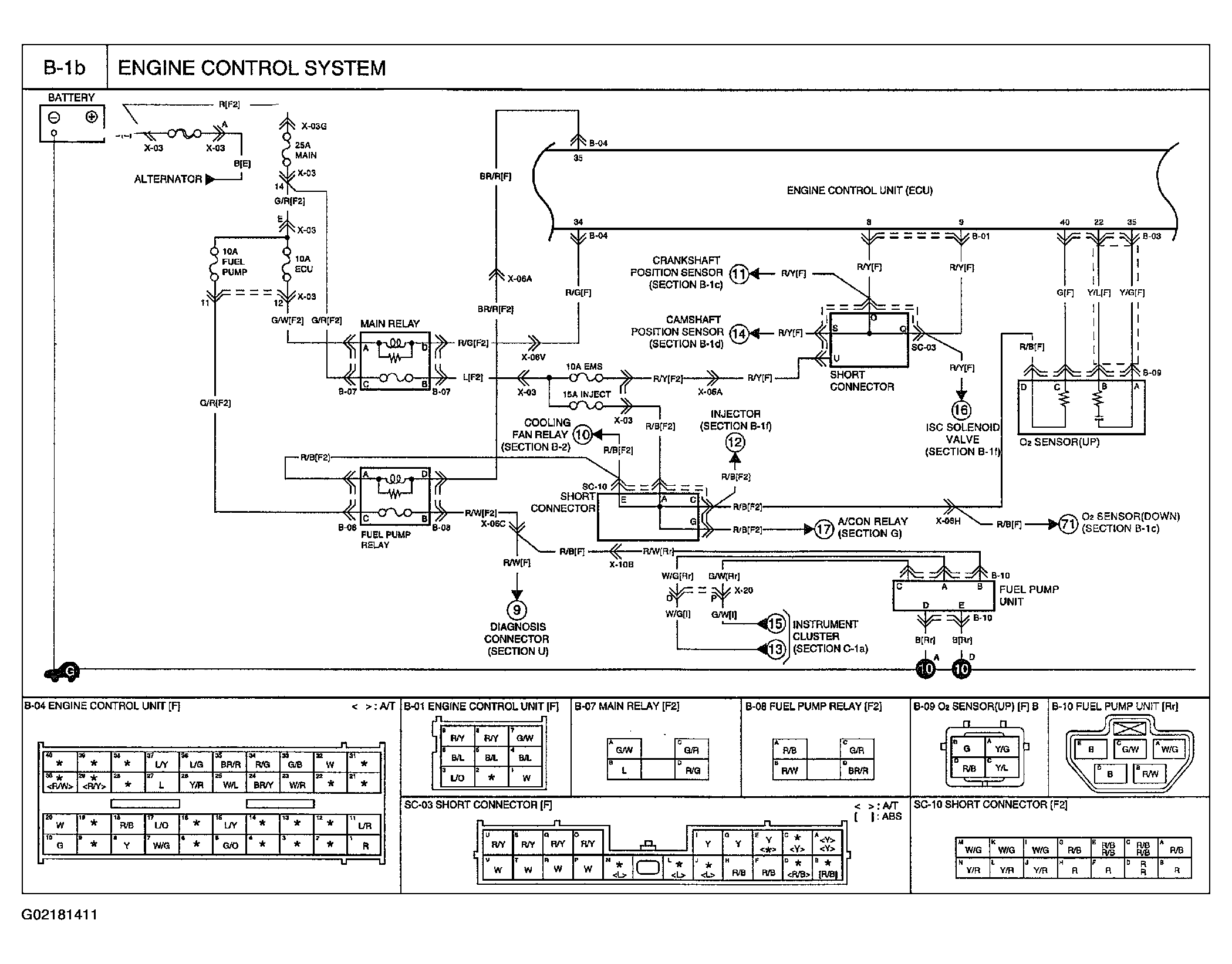

Fig 3: Engine Control System (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Engine Control System (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: Engine Control System (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

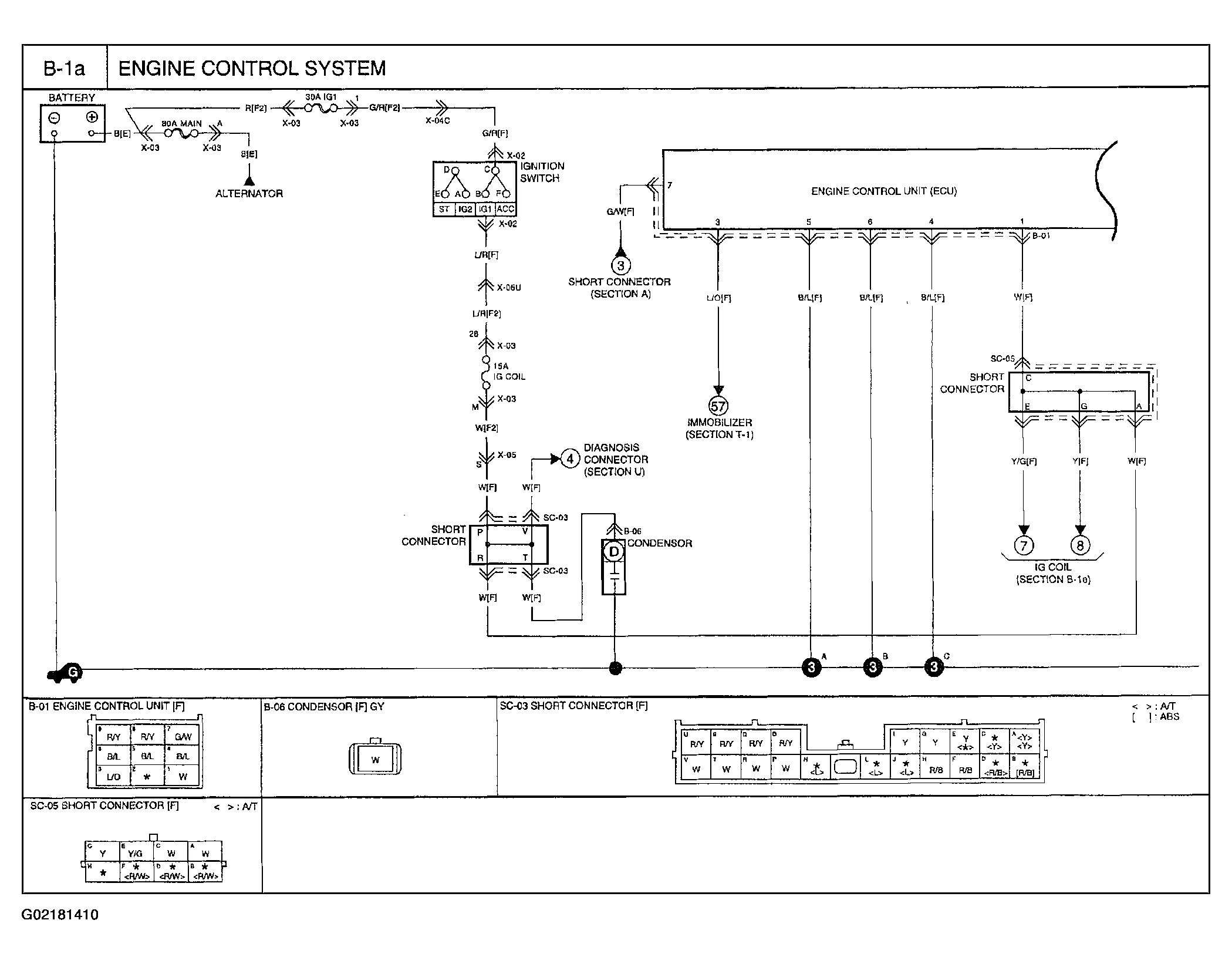

Fig 6: Engine Control System (6 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
