Circuit Diagram
Circuit Diagram

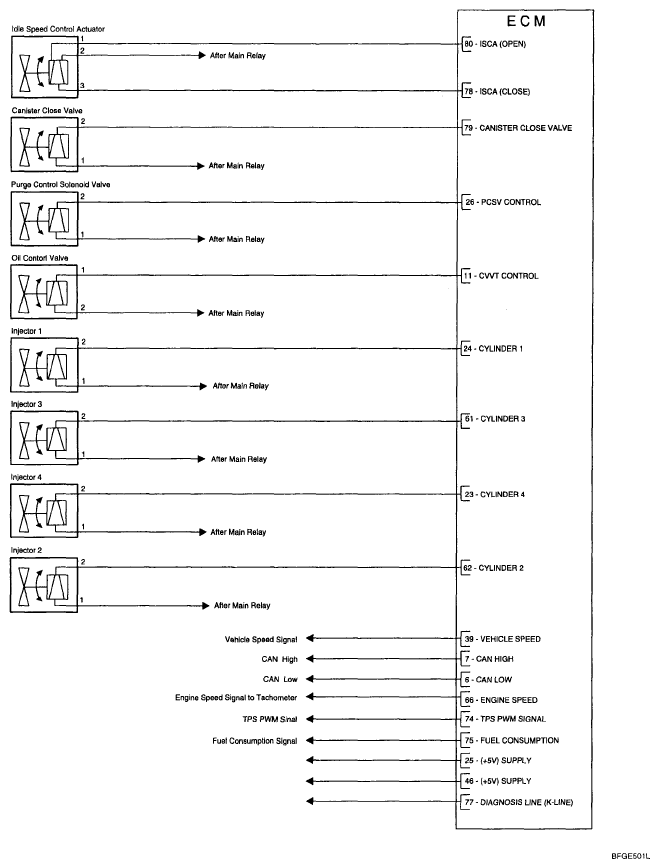

Fig 1: Gasoline Engine Control System - Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

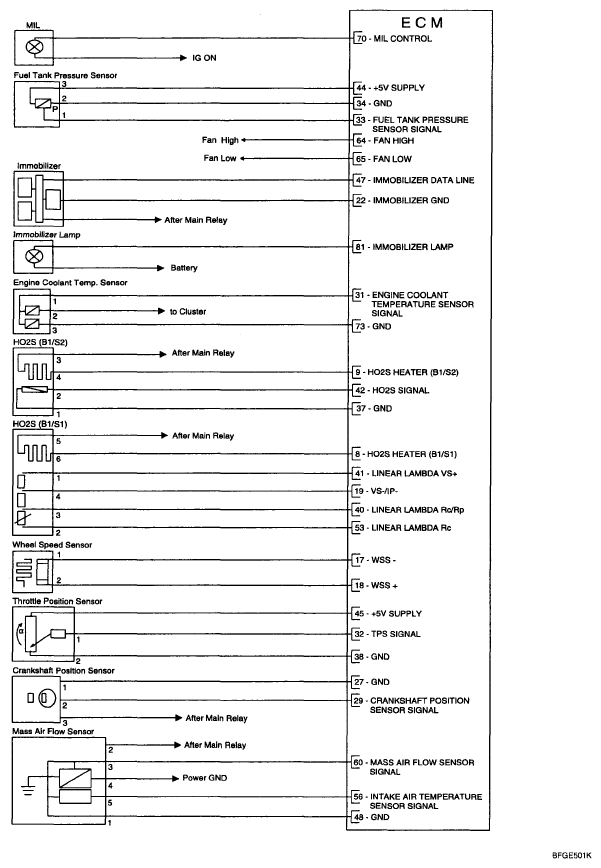

Fig 2: Gasoline Engine Control System - Circuit Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

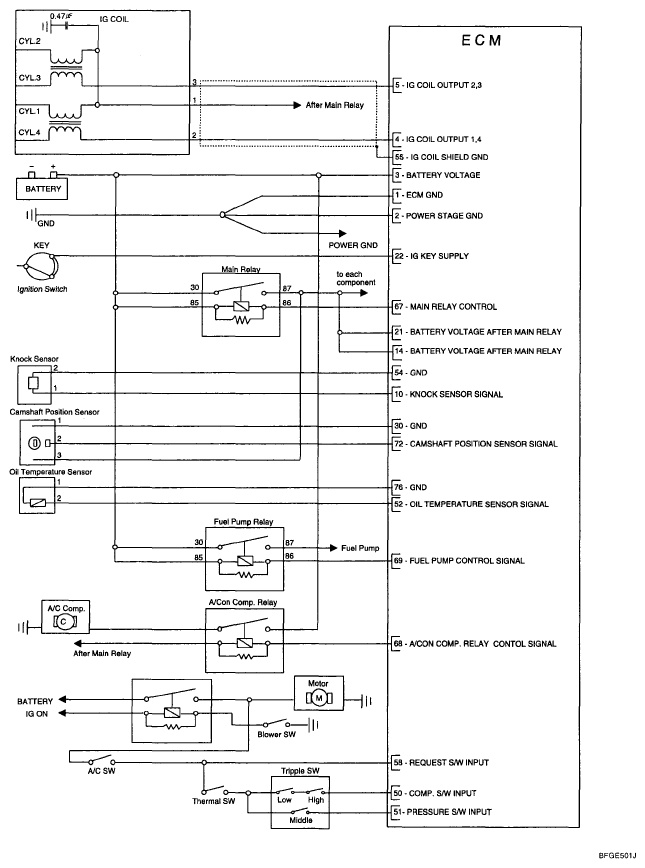

Fig 3: Gasoline Engine Control System - Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
