Camshaft Position Sensor (CMPS): Inspection: Waveform

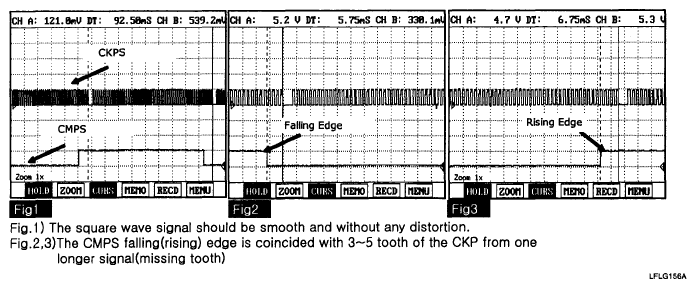

Fig 1: Identifying CMPS Signal Waveform

G04804309

Courtesy of KIA MOTORS AMERICA, INC.
