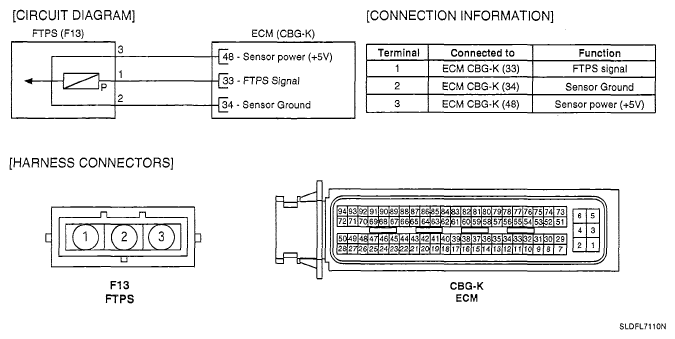

Home >> Kia >> 2007 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Gasoline Engine Control System >> Fuel Tank Pressure Sensor (Ftps) >> Inspection >> Schematic Diagram
