Gasoline Engine Control System: Components

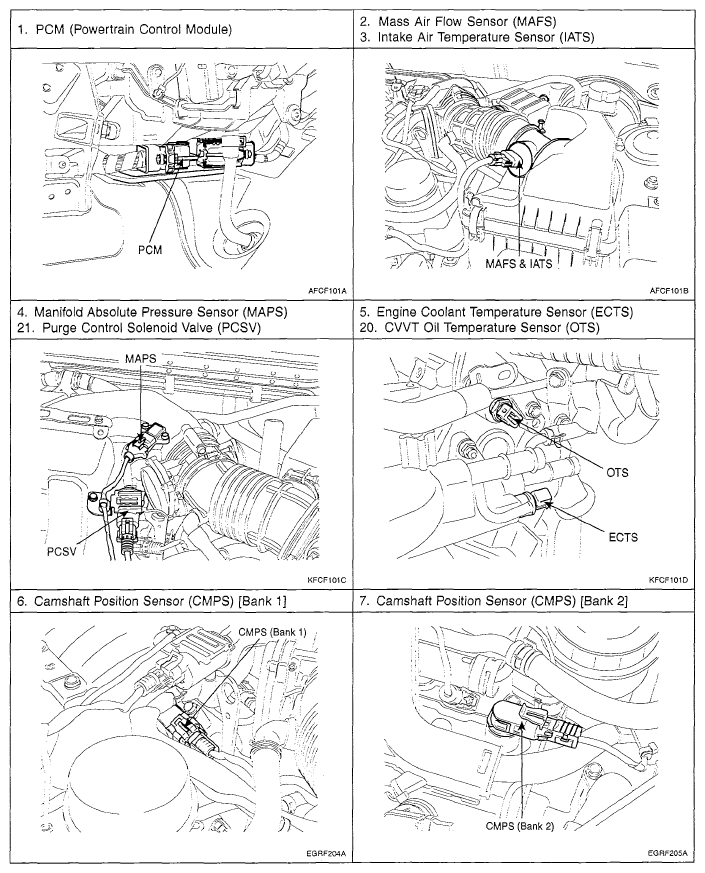

Fig 1: Identifying Gasoline Engine Control System Components (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

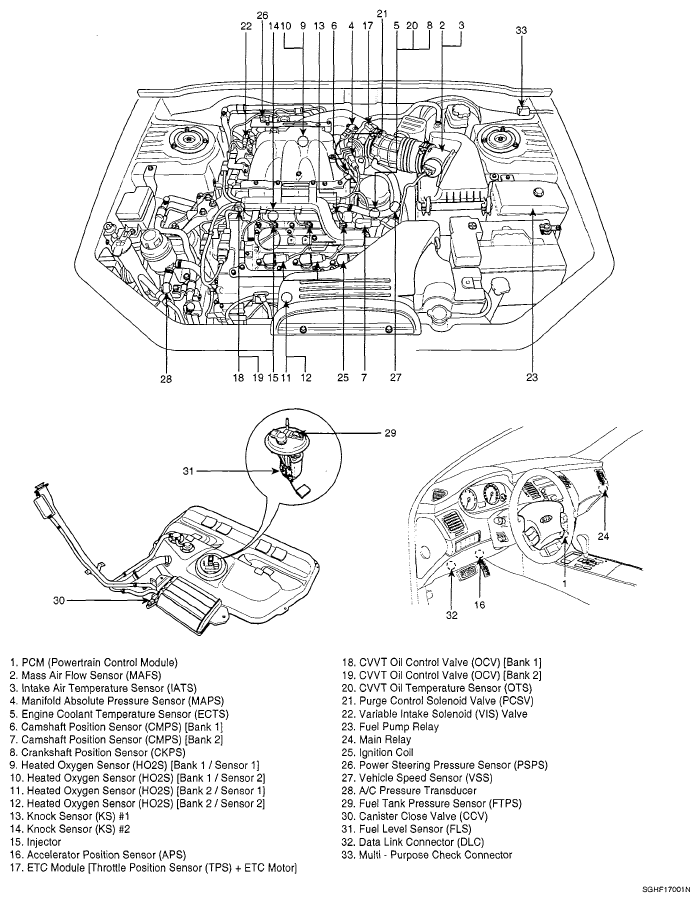

Fig 2: Identifying Gasoline Engine Control System Components (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

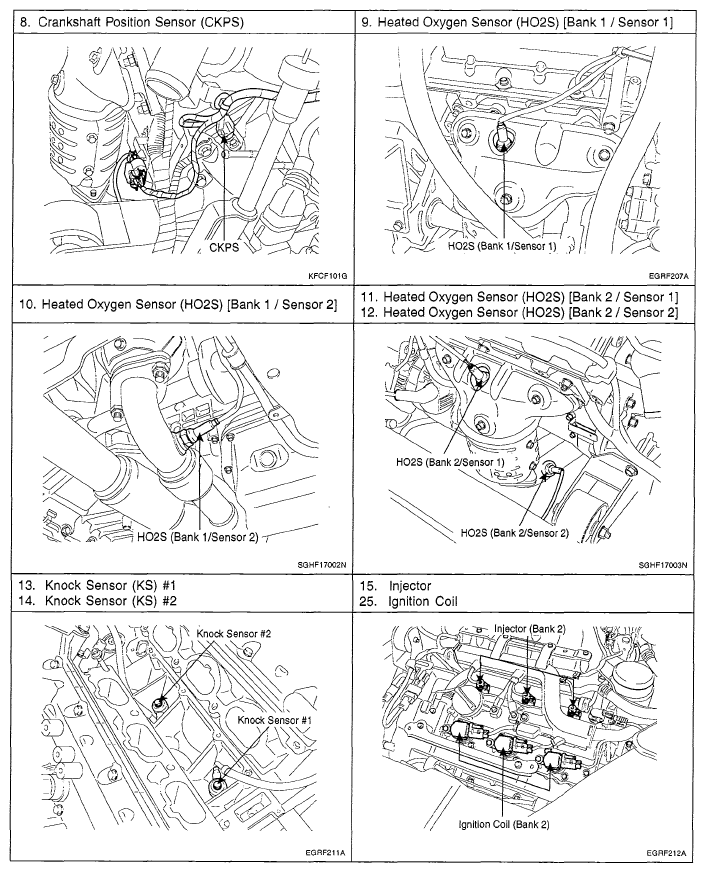

Fig 3: Identifying Gasoline Engine Control System Components (3 Of 5

Courtesy of KIA MOTORS AMERICA, INC.

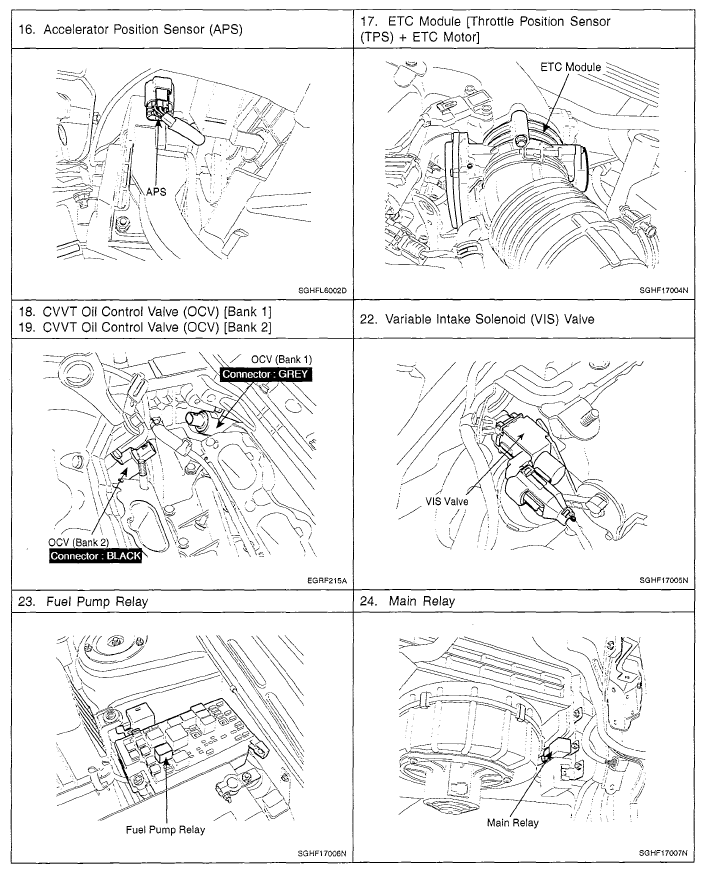

Fig 4: Identifying Gasoline Engine Control System Components (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

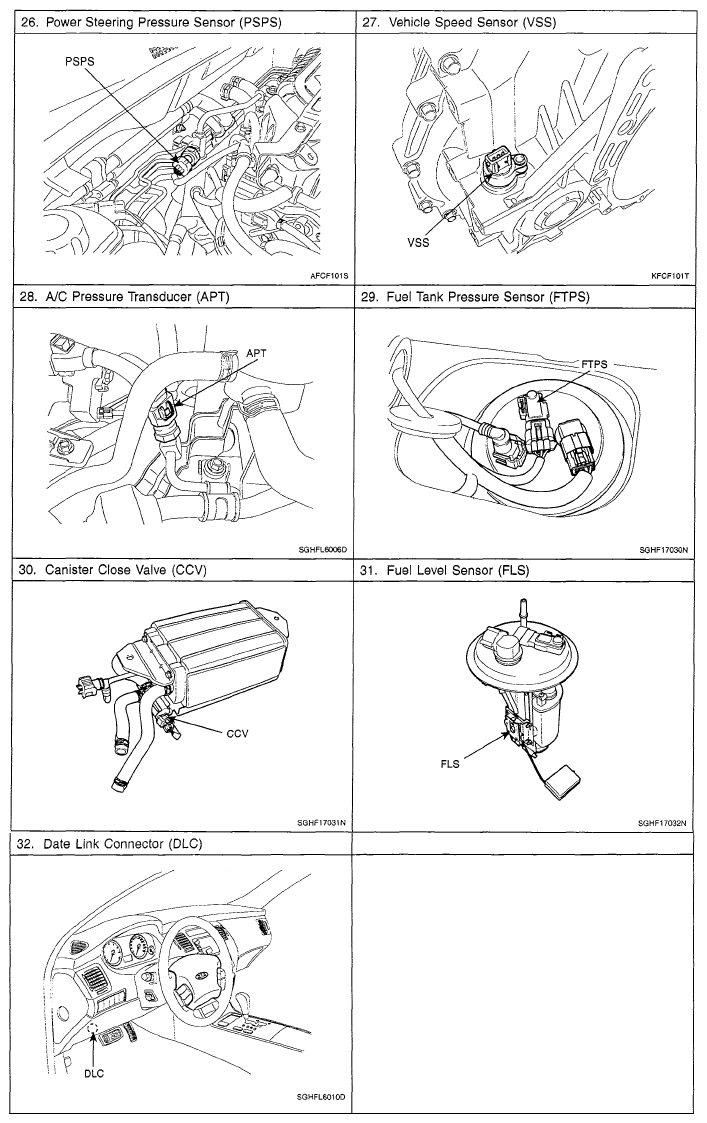

Fig 5: Identifying Gasoline Engine Control System Components (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
