Input Speed Sensor: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner assembly.
  4. Remove the input shaft speed sensor connector.
  5. Remove the input shaft speed sensor (A).

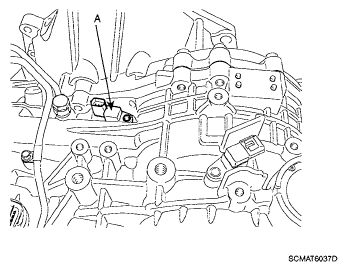

    Fig 1: Locating Input Shaft Speed Sensor
    G05116851Courtesy of KIA MOTORS AMERICA, INC.
