Transaxle Oil Temperature Sensor: Installation

Install the oil temperature sensor (A) and connect the sensor connector.
CAUTION: When connecting the oil temperature connector, check the connector for rust, dirt, or oil, then reconnect it.

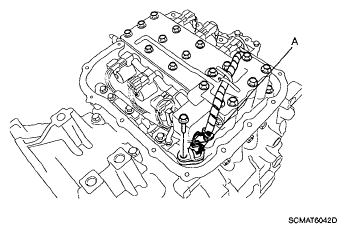

Fig 1: Identifying Oil Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Continue to apply liquid gasket at application points at the oil pan with Ø0.098 in. (2.5mm) thickness.
Liquid gasket Part name: Threebond 1281B

Fig 2: Identifying Oil Pan Liquid Gasket Application
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the mounting bolt with the specified torque after installing the oil pan.
TORQUE: 13-15 N.m (1.3-1.5 kgf.m, 9.4-10.8 lb-ft)
Install the drain plug.
TORQUE: 40-50 N.m (4.0-5.0 kgf.m, 28.9-36.2 lb-ft)
Installation is the reverse of the removal.
