Circuit Diagram

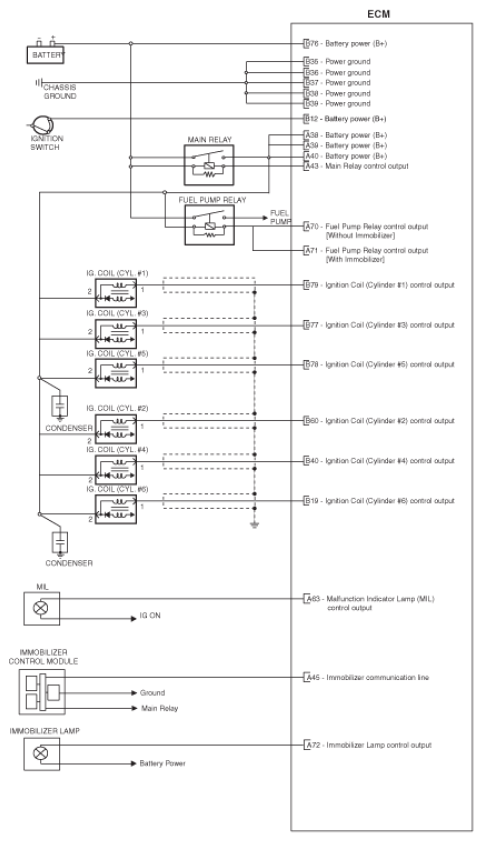

Fig 1: ECM Circuit Diagram (1 Of 5)
G06415784Courtesy of KIA MOTORS AMERICA, INC.

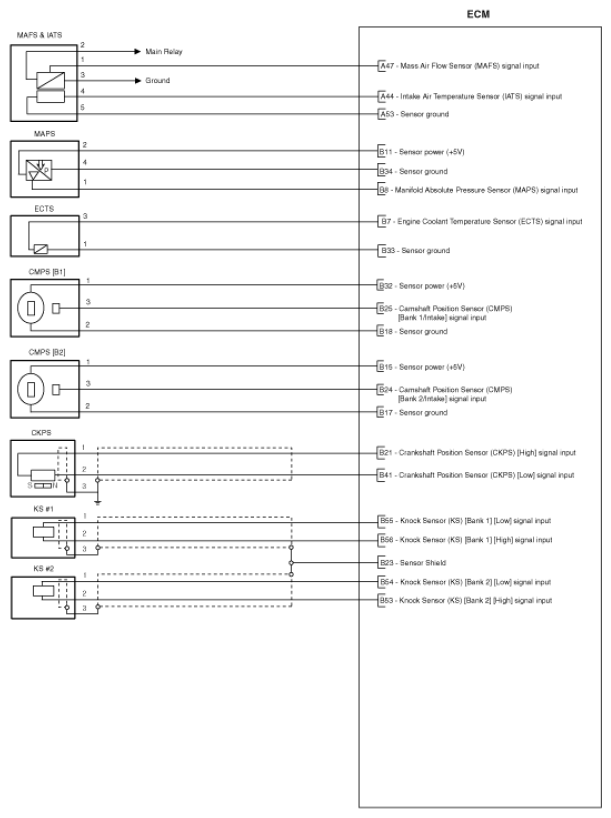

Fig 2: ECM Circuit Diagram (2 Of 5)
G06415785Courtesy of KIA MOTORS AMERICA, INC.

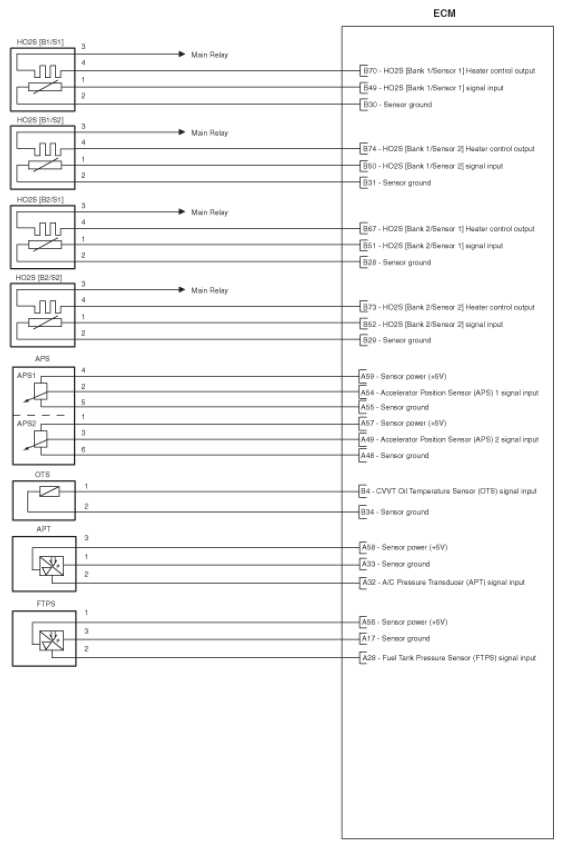

Fig 3: ECM Circuit Diagram (3 Of 5)
G06415786Courtesy of KIA MOTORS AMERICA, INC.

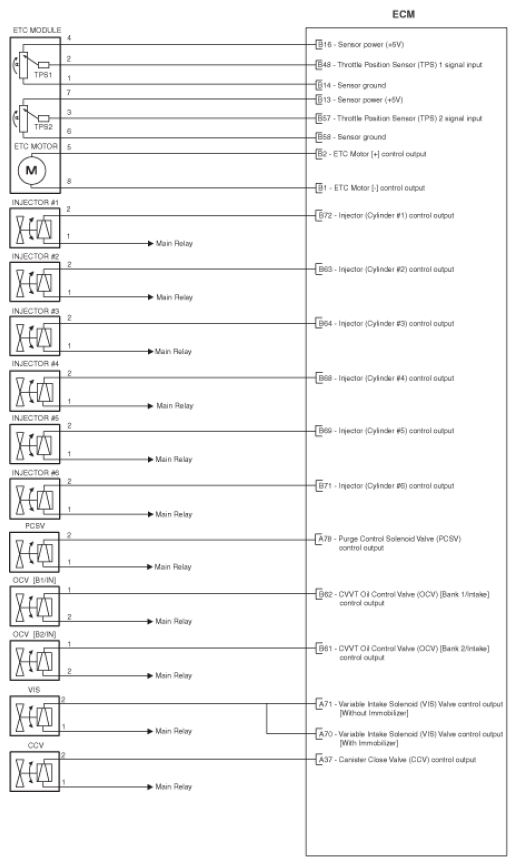

Fig 4: ECM Circuit Diagram (4 Of 5)
G06415787Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: ECM Circuit Diagram (5 Of 5)
G06415788Courtesy of KIA MOTORS AMERICA, INC.
