Rear Side Impact Sensor

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the rear pillar trim. Refer to INTERIOR TRIM .
  3. Disconnect the Side Impact Sensor connector.
  4. Remove the SIS mounting bolt then remove the Side Impact Sensor.

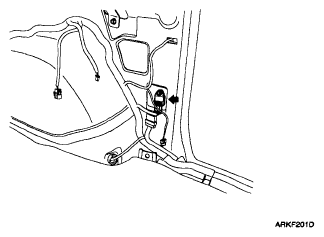

    Fig 1: Locating Rear Side Impact Sensor
    G04883723Courtesy of KIA MOTORS AMERICA, INC.
