Circuit Diagram

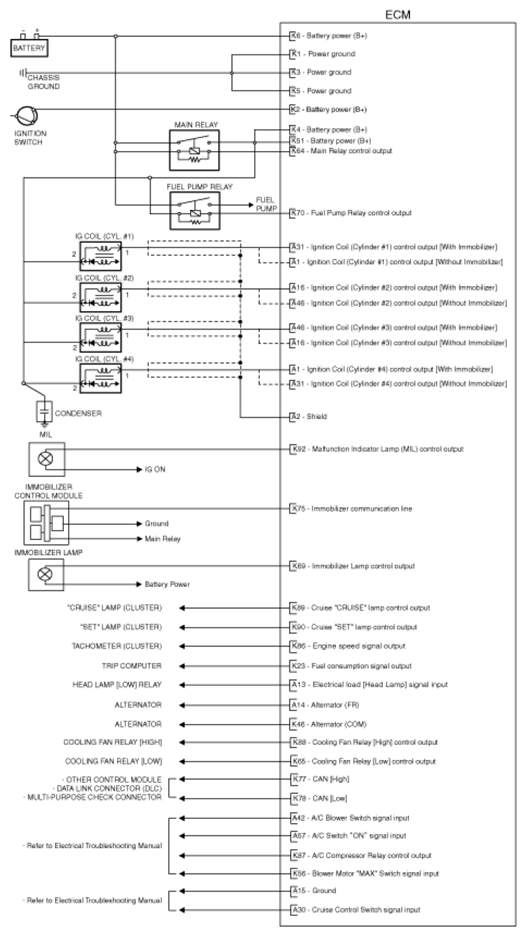

Fig 1: Engine Control System Circuit Diagram (1 Of 4)
G07367799Courtesy of KIA MOTORS AMERICA, INC.

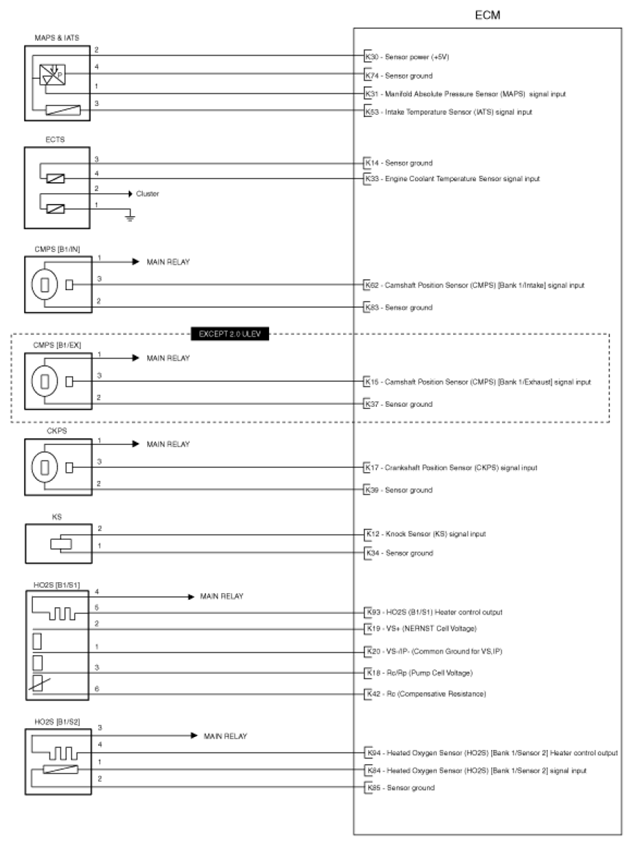

Fig 2: Engine Control System Circuit Diagram (2 Of 4)
G07367800Courtesy of KIA MOTORS AMERICA, INC.

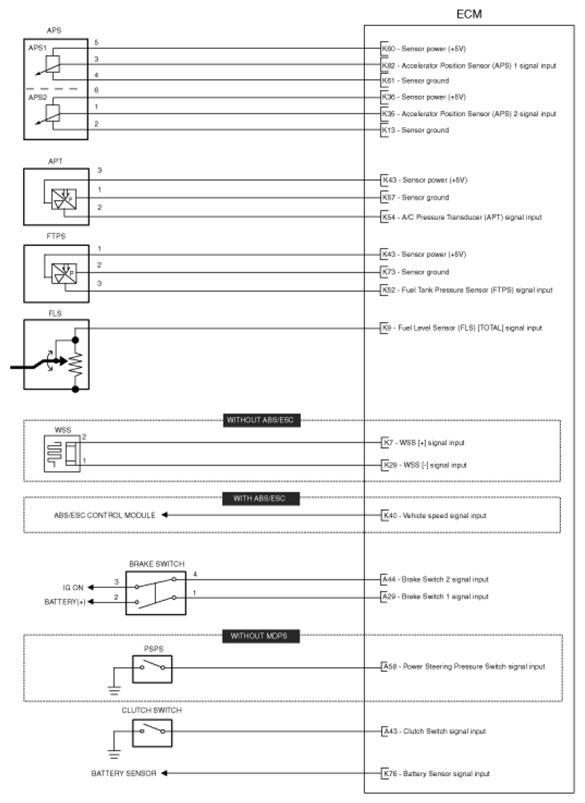

Fig 3: Engine Control System Circuit Diagram (3 Of 4)
G07367801Courtesy of KIA MOTORS AMERICA, INC.

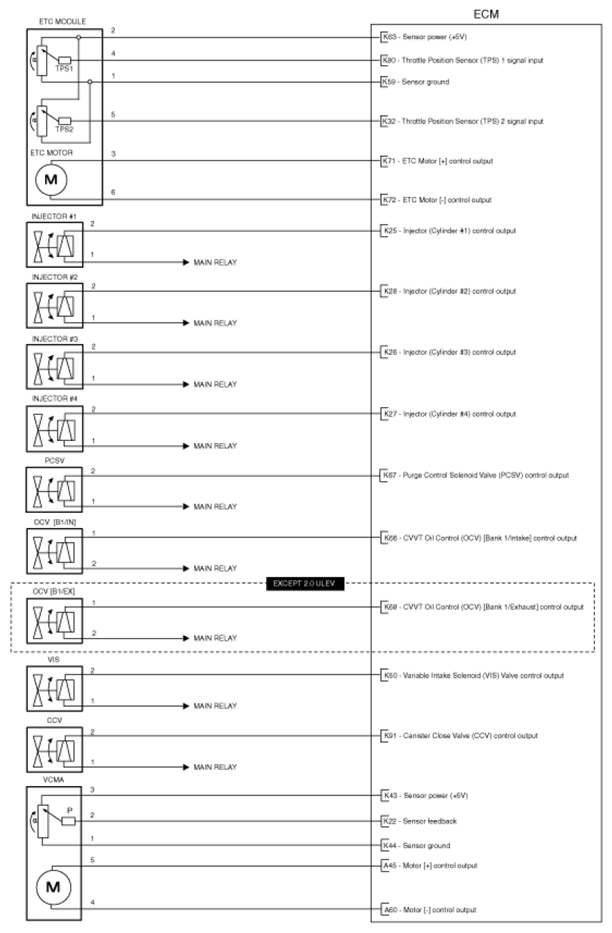

Fig 4: Engine Control System Circuit Diagram (4 Of 4)
G07367802Courtesy of KIA MOTORS AMERICA, INC.
