Heated Oxygen Sensor (HO2S): Troubleshooting: Waveform

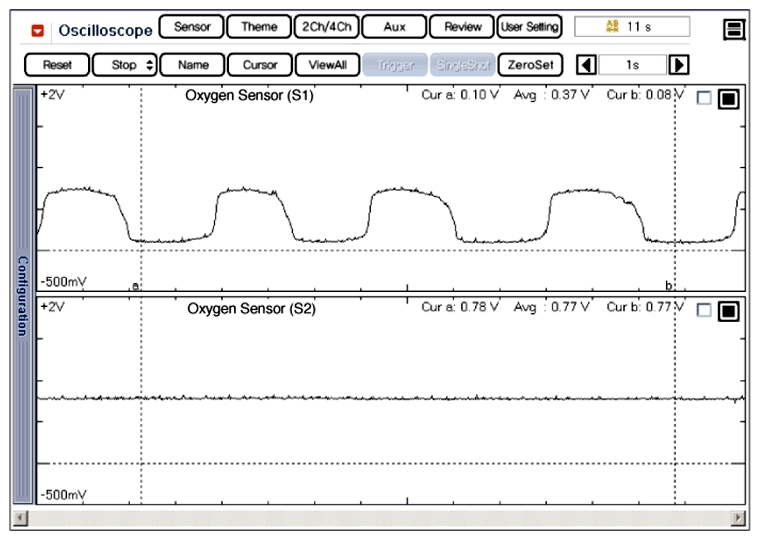

Fig 1: Scan Tool Screen Display - Signal Waveform Of Oxygen Sensor (Sensor 1 & Sensor 2)

G06526170

Courtesy of KIA MOTORS AMERICA, INC.
