Circuit Diagram

[A/T]

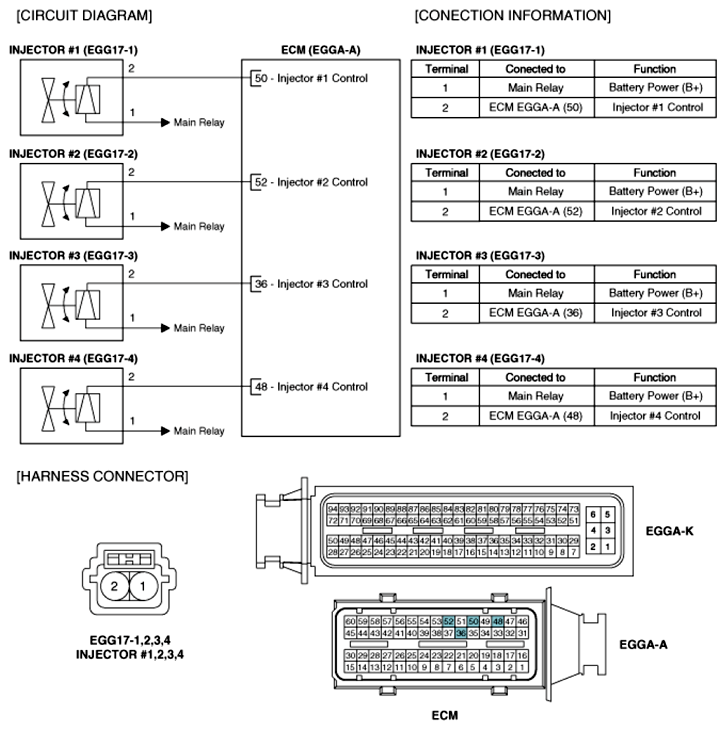

Fig 1: Injectors & ECM - Circuit Diagram (A/T)

G06526174

Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

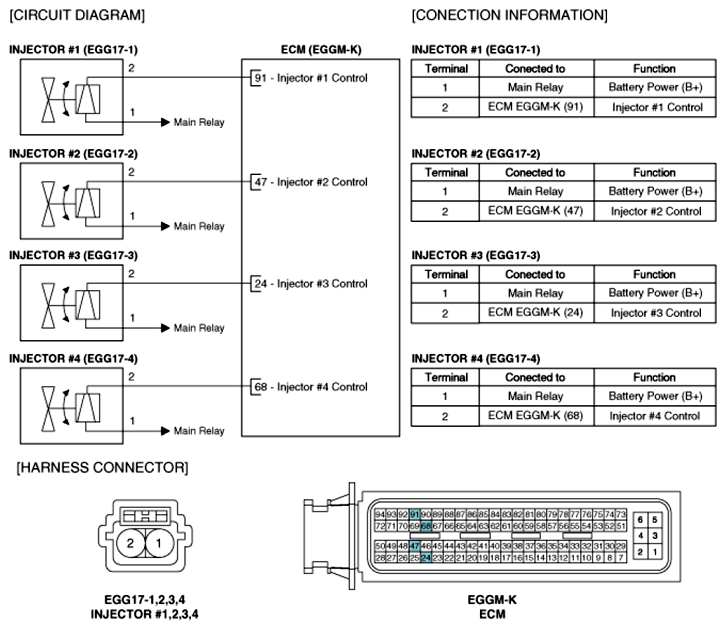

Fig 2: Injectors & ECM - Circuit Diagram (M/T)

G06526175

Courtesy of KIA MOTORS AMERICA, INC.
