Injector
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

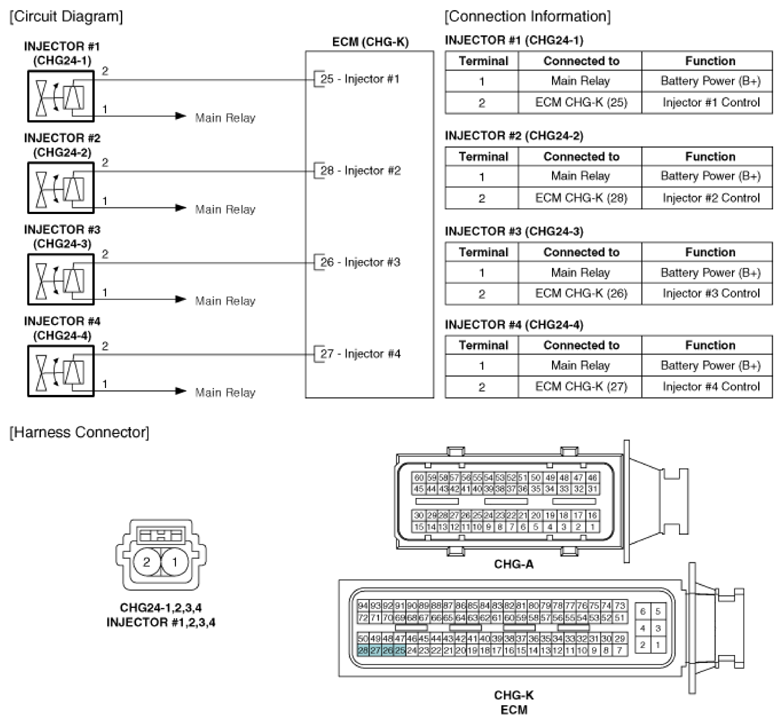

Fig 1: Identifying Injector And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
