Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the under cover front panel.

    (Refer to Engine Mechanical System - "Engine And Transaxle Assembly")

  3. Disconnect the connector, and then remove the ambient temperature sensor (A).

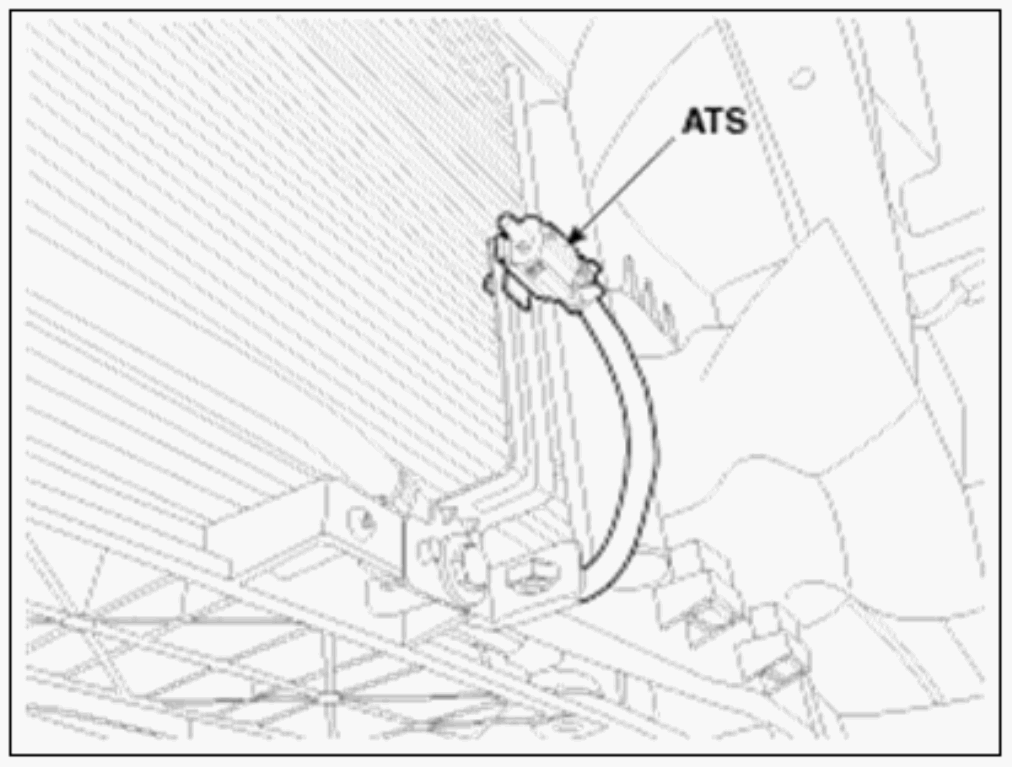

    4. Fig 1: Identifying Air Temperature Sensor (ATS)
    G00535118Courtesy of KIA MOTORS AMERICA, INC.
